What Is Angle Steel: Sections, Standards, Grades and Fabrication

Jan 08, 2024 Leave a message

What Angle Steel Is and How It Is Designated

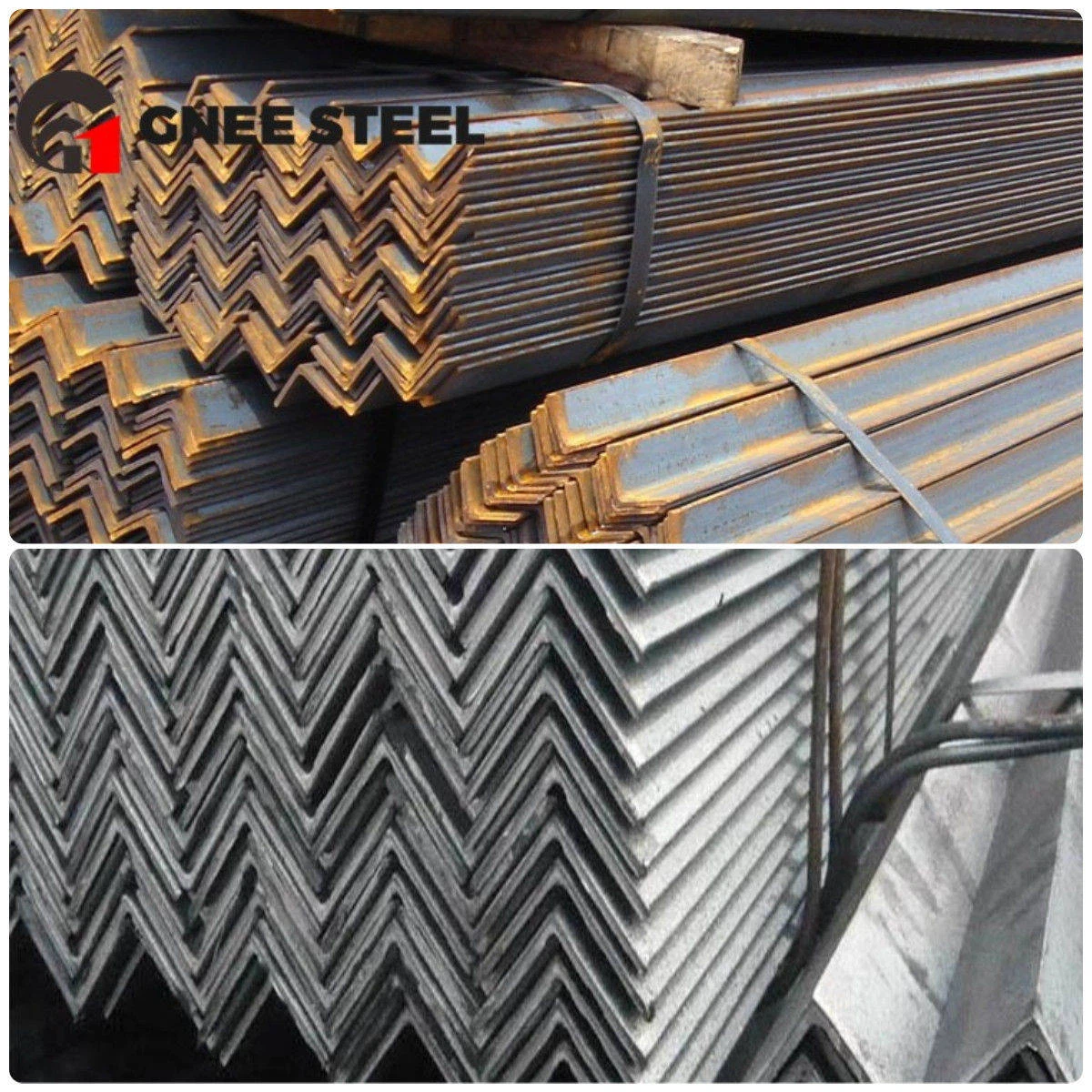

Angle steel, also called angle iron, is a long product whose cross-section is an L formed by two mutually perpendicular legs. Two families exist: equal-leg angles, where both legs have the same width, and unequal-leg angles, where the legs differ. The section is designated by leg width and leg thickness, for example 50 mm x 50 mm x 5 mm for an equal-leg angle, and by both leg widths plus thickness for an unequal-leg angle.

The geometric detail that matters in procurement is the leg thickness rather than the leg width alone, because stiffness, bolt bearing capacity and weld size all scale with thickness. Root radius and toe radius are also standardised, since they influence the fillet weld detail at the heel of the section.

Standards and Dimensional Series

European supply is covered by EN 10056-1 for dimensions and EN 10056-2 for tolerances. Chinese hot-rolled sections are specified to GB/T 706-2016, which sets the dimensional series for equal-leg angles across the common range. North American practice refers to ASTM A6/A6M for the general requirements applying to rolled structural shapes, with material grades ordered separately.

Standard Content Typical range covered
EN 10056-1 / EN 10056-2 Dimensions and tolerances for equal and unequal angles Legs from about 20 mm to 200 mm and above
GB/T 706-2016 Hot-rolled section steel, dimensions and tolerances Equal-leg angles, thickness 3 mm and upwards
ASTM A6/A6M General requirements for rolled structural shapes Tolerance and straightness limits for angular sections

Leg thickness tolerance and the tolerance on leg squareness are the two figures worth checking against the drawing before a lot is released, because a thin-wall angle assembled into a bolted frame will not close up to the specified gap.

Steel Grades and Mechanical Properties

Angles are commonly rolled in structural grades. To EN 10025-2, grade S235JR has a minimum yield strength of 235 MPa at thicknesses up to 16 mm, S275JR is 275 MPa and S355JR is 355 MPa at the same thickness limit, with tensile strength ranges of 360-510 MPa, 410-560 MPa and 470-630 MPa respectively. The JR quality class requires Charpy V-notch impact energy of 27 J at +20 degrees C. To ASTM A36/A36M the minimum yield strength is 250 MPa with a tensile range of 400-550 MPa. Chinese grades Q235B to GB/T 700-2006 and Q355B to GB/T 1591-2018 are the common domestic equivalents used in welded frames.

Grade selection follows the same logic applied to other structural sections: a higher yield grade allows a thinner leg for the same design resistance, but also raises carbon equivalent and therefore the preheat requirement during welding.

Fabrication and Connection Practice

Angles are cut by sawing, shearing or thermal cutting. Shearing thick legs can induce a slight camber, so a straightening pass is common where the angle is a leg of a bolted frame. Hole positions are normally gauged from the heel rather than the toe, and edge distance from the hole centre to the leg edge must satisfy the governing design code to avoid tear-out.

Fillet welds at the heel of an angle are sized on the leg thickness; the fillet weld throat should not exceed the value permitted for the thinner connected part. Where a single angle is connected through one leg only, the eccentricity of the load path should be recognised in design. Galvanizing is frequently specified for outdoor frames, which requires the steel to be suitable for hot-dip coating and to be free of excessive silicon and phosphorus.

Applications and Procurement Notes

Typical applications include transmission towers, racking, ladder and handrail frames, support brackets, machine guards, busbar supports and ship-internal structures. For export orders the documents normally requested are the mill certificate to EN 10204 type 3.1, a dimensional inspection record, and the marking that links each bundle to its heat number.

When ordering, specify leg size, leg thickness, length, grade, tolerance standard and end condition. If the angle will be welded into a fatigue-loaded structure, state the impact requirement and the maximum carbon equivalent value as well.

Frequently Asked Questions

Q: Is angle steel the same as angle iron?
A: Yes. Angle iron is the traditional shop-floor name for the same L-shaped rolled section; the current commercial term is angle steel or angular section.

Q: What is the difference between equal-leg and unequal-leg angles?
A: Equal-leg angles have two legs of the same width and are designated by leg width and thickness. Unequal-leg angles have legs of different widths and are designated by both widths plus thickness, which allows a heavier leg to be placed where the higher bending moment occurs.

Q: What impact toughness does a JR grade provide?
A: The JR quality class to EN 10025-2 requires a minimum Charpy V-notch energy of 27 J tested at +20 degrees C. Grades J0 and J2 raise the requirement to 27 J at 0 degrees C and at -20 degrees C respectively.

Q: Can angle steel be hot-dip galvanized?
A: Yes. Structural grades in the S235, S275, S355 and Q355 families are regularly galvanized. Chemistry should be controlled because high silicon or phosphorus content can produce an excessively thick, brittle coating.

Q: How is the weight of an angle calculated?
A: The theoretical mass per metre is obtained from the nominal cross-sectional area and a steel density of 7.85 g/cm3. Actual mass per bundle is verified by weighing, and the permitted deviation is stated in the governing dimensional standard.
