ASTM A572 is a high-strength low-alloy (HSLA) steel with alloy content of columbium and vanadium, which strengthens the steel and provides higher yield point strength than ASTM A36. A572 HSLA steel channel is ideal for the applications where needs higher strength for it reduces the thickness and weight.
ASTM A572 steel sections have three grades - Grade 42, 50 and 55.You can find the specific chemical content & mechanical properties inthe tables below.
Product description:

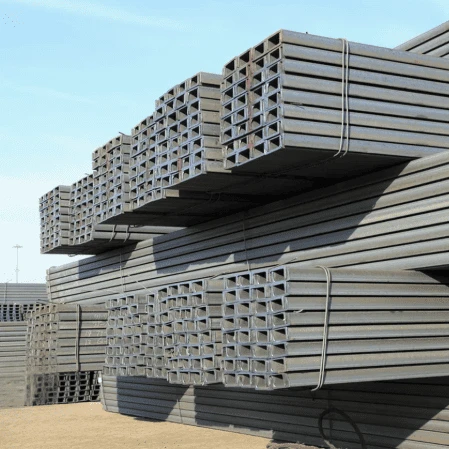

Item: ASTM A572-50 steel channel.
Dimensions: UPN & UPE.
Web width:80-200 mm.
Web thickness:6-8.5 mm (UPN)& 4.5 -5.2 mm (UPE).Flange width:45 -75 mm (UPN)& 40 -76 mm (UPE),Flange thickness:8-11.5 mm (UPN)& 7.4 -9.0 mm(UPE).Length: 3 m,6 m, or as required.Surface treatment: non-treatment, galvanised or primer.Note: special channel sizes are available on order
| Item | Grade | Carbon, max, % | Manganese, max, % | Silicon, max, % | Phosphorus, max, % | Sulfur, max, % |
|---|---|---|---|---|---|---|
| A572 steel angle | 42 | 0.21 | 1.35 | 0.40 | 0.04 | 0.05 |
| 50 | 0.23 | 1.35 | 0.40 | 0.04 | 0.05 | |
| 55 | 0.25 | 1.35 | 0.40 | 0.04 | 0.05 |
| Item | Grade | Yield point, min, ksi [MPa] | Tensile strength, min, ksi [MPa] |
|---|---|---|---|
| A572 steel angle | 42 | 42 290] | 60 [415] |
| 50 | 50 [345] | 65 [450] | |
| 55 | 55 [380] | 70 [485] |
| Item | Depth (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| UPN80 | 80 | 45 | 6 | 8 | 8.64 |
| UPN100 | 100 | 50 | 6 | 8.5 | 10.6 |
| UPN120 | 120 | 55 | 7 | 9 | 13.4 |
| UPN140 | 140 | 60 | 7 | 10 | 16 |
| UPN160 | 160 | 65 | 7.5 | 10.5 | 18.8 |
| UPN180 | 180 | 70 | 8 | 11 | 22 |
| UPN200 | 200 | 75 | 8.5 | 11.5 | 25.3 |
| Item | Depth (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| UPE80 | 80 | 40 | 4.5 | 7.4 | 7.05 |
| UPE100 | 100 | 46 | 4.5 | 7.6 | 8.59 |
| UPE120 | 120 | 52 | 4.8 | 7.8 | 10.4 |
| UPE140 | 140 | 58 | 4.9 | 8.1 | 12.3 |
| UPE160 | 160 | 64 | 5 | 8.4 | 14.2 |
| UPE180 | 180 | 70 | 5.1 | 8.7 | 16.3 |
| UPE200 | 200 | 76 | 5.2 | 9 | 18.4 |
Product application
Professional factory
Professional team
GNEE can provide more products. If you need section steel, angle steel, stainless section steel, galvanized section steel, wear-resistant section steel, etc., you are welcome to contact us! beam@gneesteel.com
