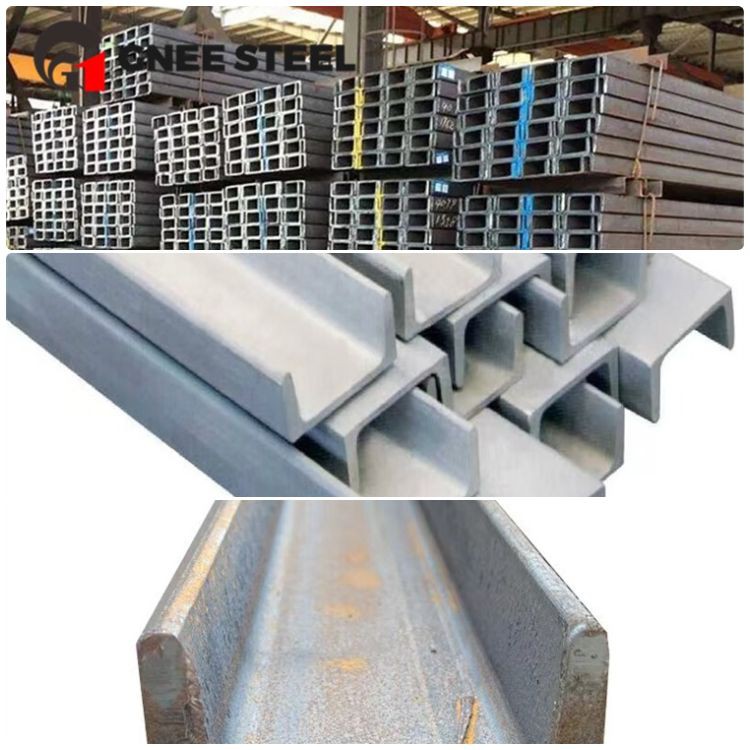

Channel steel, also called U-channel or C-channel, is a standard structural steel section with a U-shaped cross-section. The section consists of a vertical web with two flanges extending in the same direction, which gives it a distinctive shape that looks like the letter U or C. Channel steel is widely used in steel structures for beams, columns, and supports, and it is normally supplied as straight hot-rolled members.
The Channel Section
The channel section is defined by its web height, flange width, and the thickness of the web and flanges. The flanges are parallel and at right angles to the web, which makes the section easy to connect to other members. Because the material is concentrated at some distance from the neutral axis, the channel is efficient in bending about its strong axis, while remaining relatively light and economical.
How Channels Are Produced
Standard channels are produced by hot rolling, in which a heated billet is passed through shaped rolls to form the U-section. The rolled sections are straight as delivered, with dimensional tolerances defined by the applicable standard. Curved or arched channels are made by post-processing, such as cold bending on a section bender, and are not standard rolled products. Lighter duty channels can also be formed by cold forming from steel strip, giving a similar section with thinner material.
Standards and Designations
Channel sections are standardized in national systems, including the C series in the Chinese standard GB/T 706, the UPN and UPE series in the European standard EN 10279, and the C and MC series in the American standard ASTM A6. The designation typically gives the nominal depth and the weight per unit length, for example a 200 by 80 channel in metric practice or a C8 by 11.5 in American practice. The exact dimensions and tolerances are taken from the relevant standard table.
Channel vs Angle and I-Beam
Channel steel differs from angle steel, which has an L-shaped section with two perpendicular legs and is used mainly for bracing and connections. It also differs from I-beams and H-beams, which have flanges on both sides of the web and provide higher bending capacity in both directions. The channel is often chosen when a member must support load along one face, when it will be used in pairs to form a box section, or when a flat attachment surface is needed for other components.
Fabrication and Processing
Channels are easy to fabricate with standard equipment. They can be cut by sawing or flame cutting, drilled for bolted connections, and welded with common processes. Hot-dip galvanizing is frequently applied for corrosion protection in outdoor and industrial service. When curved members are required, cold bending should be performed with a suitable radius to avoid local buckling and cracking of the section.
Frequently Asked Questions
What does a channel section look like? It has a U-shaped or C-shaped cross-section with a web and two flanges extending in the same direction.
Are channels produced as straight sections? Yes, standard hot-rolled channels are straight; curved channels are made by post-processing such as cold bending.
What standards cover channel steel? Common standards include GB/T 706, EN 10279, and ASTM A6 for hot-rolled channels.
What is the difference between a channel and an angle? channel has a U-shaped section with a web, while an angle has an L-shaped section with two perpendicular legs.
Can channels be galvanized? Yes, hot-dip galvanizing is commonly applied to channels for corrosion protection.
Where are channels used? They are used as beams, columns, purlins, and supports in steel structures, machinery, and vehicles.
