S235JR H-beams are among the most widely used structural steel products in modern building and infrastructure projects. Manufactured under the EN 10025-2 standard, they provide an excellent balance of strength, weldability, and cost-efficiency, which makes them a preferred choice for structural frames, columns, and beams around the world. The wide parallel flanges of the H-section give it high bending resistance and stable behavior under load.
Technical Specifications and Sizes
S235JR is a low carbon structural steel designed for general construction with reliable mechanical performance and excellent processing properties. The chemical composition limits carbon to 0.17 percent, manganese to 0.60 to 0.90 percent, silicon to 0.35 percent, and phosphorus and sulfur to 0.035 percent each. The minimum yield strength is 235 MPa, the tensile strength is 360 to 510 MPa, and the minimum elongation is 20 percent, with a minimum impact energy of 27 J at 20 deg C. The JR designation indicates impact testing at room temperature, which ensures reliable toughness under normal working conditions. H-beams are available in a wide range of sizes, defined by web height, flange width, web thickness, and flange thickness, with common sections covering depths from about 100 mm to over 900 mm.
H-Beam vs I-Beam Advantages
Compared with traditional I-beams, H-beams offer superior performance in construction applications. The H-section has wide parallel flanges, which give uniform load distribution, high bending resistance, and excellent stability, while the web provides efficient shear transfer. Because the flanges are wider and parallel, the section carries load more efficiently, which allows engineers to reduce material usage while maintaining structural strength. In modern steel structures this efficiency translates into lower overall weight and reduced construction costs.
Processing and Surface Treatment
S235JR H-beams are easy to fabricate. CNC cutting provides custom lengths and precision, drilling prepares bolt holes, and the steel welds readily with standard processes. Surface treatment options include shot blasting to improve surface quality, priming for basic corrosion protection, and hot-dip galvanizing, which provides decades of protection for outdoor and marine environments. For exterior service, galvanizing is recommended to extend service life and reduce maintenance costs.
Quality Assurance and Supply
High-quality S235JR H-beams are supplied with mill test certificates confirming compliance with EN 10025-2, and the mechanical and chemical values are verified by the manufacturer. Third-party inspection can be arranged to verify quality at the mill, and strict dimensional tolerance control ensures that the sections match the design. Supply arrangements typically include stable inventory, fast delivery, and professional export packaging with bundle and anti-rust protection.
Typical Applications

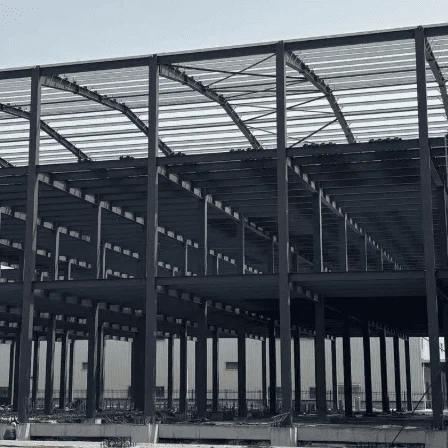

Steel frames, columns, and beams in building structures
Workshops and warehouses in industrial plants
Bridges and transport systems in infrastructure projects
Solar mounting systems and platforms in energy projects
Equipment bases and structural frames for machinery support
The good ductility of S235JR allows the members to absorb stress and deformation without sudden failure, which improves safety in dynamic or seismic environments.
Frequently Asked Questions
What standard covers S235JR H-beams? S235JR is specified in EN 10025-2, the European standard for hot rolled structural steel products.
What is the yield strength of S235JR? The minimum yield strength is 235 MPa and the tensile strength is 360 to 510 MPa.
What does JR mean in S235JR? JR indicates that the steel is impact tested at room temperature, 20 deg C, with a minimum of 27 J.
What is the advantage of an H-beam over an I-beam? The wide parallel flanges give higher bending resistance, uniform load distribution, and better stability.
Is S235JR H-beam weldable? Yes, the low carbon content gives it excellent weldability with standard processes.
What surface protection is recommended for outdoor use? Hot-dip galvanizing is recommended for outdoor and marine environments to extend service life.
