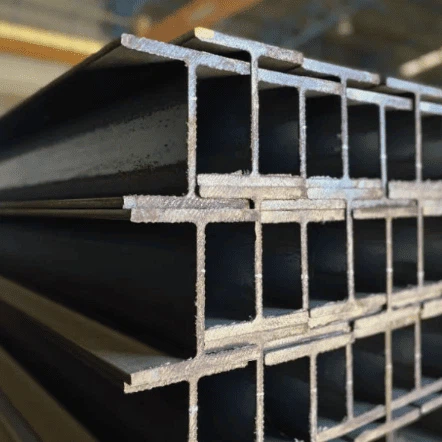

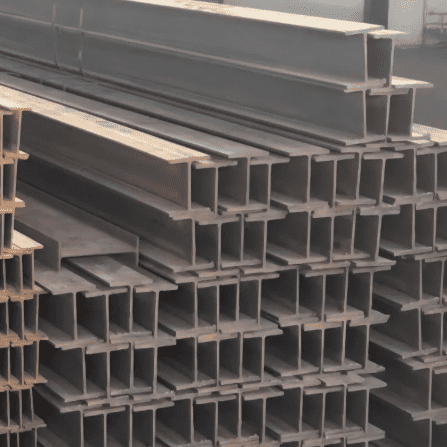

HEA140 S355J2 H Section Steel is a structural steel beam designed for high-performance load-bearing applications. This particular section has a height of 140 mm, a flange width of 133 mm, a flange thickness of 8.5 mm, and a web thickness of 5.5 mm.
The thick flanges and relatively thin web design provide excellent bending stiffness while keeping the self-weight of the beam moderate. This configuration allows HEA140 to efficiently resist bending moments and shear forces, making it ideal for medium-scale construction projects, including commercial buildings, industrial facilities, and bridge structures.
Manufactured from S355J2 steel, this H-beam offers high yield strength, good toughness at low temperatures, and excellent weldability, ensuring reliable performance in demanding structural applications.
Its standardized dimensions facilitate precise connections, modular construction, and compatibility with other European standard HEA sections.
Physical Properties of HEA140 S355J2 H-Beam
| Property | Unit | Value / Range |
|---|---|---|
| Height (H) | mm | 140 |
| Flange Width (B) | mm | 133 |
| Flange Thickness (t_f) | mm | 8.5 |
| Web Thickness (t_w) | mm | 5.5 |
| Weight | kg/m | 19.6 (approx.) |
| Yield Strength (ReH) | MPa | ≥ 355 |
| Tensile Strength (Rm) | MPa | 470–630 |
| Elongation (A%) | % | ≥ 20 |
| Impact Energy (Charpy V, -20°C) | J | ≥ 27 |
| Modulus of Elasticity (E) | GPa | 210 |
| Density | kg/m³ | 7850 |
| Poisson's Ratio | – | 0.3 |
Chemical Composition of HEA140 S355J2 H-Beam (EN 10025-2)
| Element | Unit | Maximum / Typical Value |
|---|---|---|
| Carbon (C) | % | ≤ 0.22 |
| Manganese (Mn) | % | ≤ 1.60 |
| Phosphorus (P) | % | ≤ 0.035 |
| Sulfur (S) | % | ≤ 0.035 |
| Silicon (Si) | % | ≤ 0.55 |
| Nitrogen (N) | % | ≤ 0.012 |
| Copper (Cu) | % | ≤ 0.30 |
| Nickel (Ni) | % | ≤ 0.30 |
| Chromium (Cr) | % | ≤ 0.30 |
| Molybdenum (Mo) | % | ≤ 0.30 |
| Vanadium (V) | % | ≤ 0.30 |
Reference Price for Equivalent H-Beam (S355J2, HEA Series)
|
|---|
Contact now to get HEA140*133*5.5*8.5 S355J2 H Beam Quote

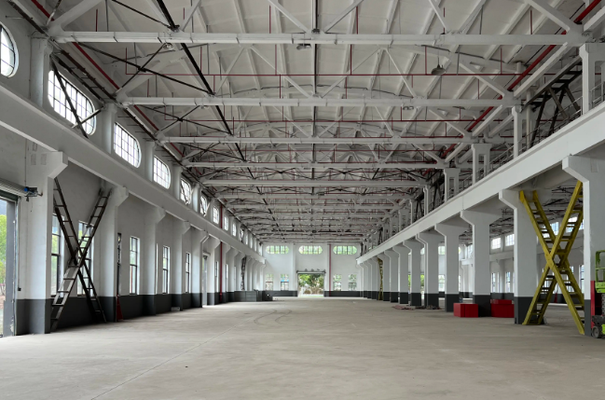

In a light industrial factory renovation project in Lyon, France, we selected HEA140 S355J2 H-section steel as secondary beams and roof supports to accommodate additional hoisting equipment and mechanical loads.
This steel beam, with a medium-sized cross-section and lightweight design, offers high strength and excellent toughness, making it highly suitable for industrial building reinforcement.
A total of 36 HEA140 beams, weighing approximately 720 tons, were used for the project. During construction, careful layout and precise installation minimized modifications to the existing factory structure, successfully completing the reinforcement while ensuring the building's load-bearing capacity and construction efficiency.
Contact now to get HEA140*133*5.5*8.5 S355J2 H Beam Quote
What is structural steel S355J2?
S355J2 is a medium tensile, low carbon manganese steel which is readily weldable and possess good impact resistance (also in sub-zero temperatures). This material is commonly supplied in the untreated or normalized condition. Machinability of this material is similar to that of mild steel.
What is steel S355J2 equivalent to?
The ASTM equivalent of S355J2 is A572 Grade 50, with similar high strength and low-temperature toughness for structural use. Gangsteel's high-quality plates ensure compliance for your projects. For more, explore our BS EN 10025-2 material grade guide.
Is S355J2 mild steel?
Enhanced Strength: With a minimum yield strength of 355 MPa, S355-J2 MS Beams are among the strongest in the mild steel category, providing robust support and stability for heavy-load bearing structures.
What is the tensile strength of S355J2?
S355J2 has a tensile strength of 470 to 630 MPa and minimum yield strength of 355 N/mm2.
