What is Solution-treated Mn13 steel plate
Solution-treated Mn13 steel plate is a high-manganese wear-resistant steel plate produced through a high-temperature solution heat treatment process (typically 1000–1100°C followed by water quenching).
This process dissolves carbides back into the austenite matrix, forming a stable single-phase austenitic structure with outstanding toughness and impact resistance. Compared with ordinary carbon steel, Mn13 steel can deliver 3–5 times higher service life under severe impact and abrasive wear conditions, depending on the working environment.
After solution treatment, Mn13 steel plate exhibits exceptional work-hardening capability. Its initial hardness is relatively low, typically around 180–220 HB, but under strong impact and continuous abrasion, the surface hardness can rapidly increase to 450–550 HB, and in extreme working conditions may even exceed this range locally.
This strong work-hardening response allows the material to continuously strengthen during service while the core remains tough and ductile. Unlike conventional steels that wear down gradually, Mn13 becomes harder as it is used, improving its resistance to impact and sliding wear.
Thanks to this unique "self-hardening" behavior, solution-treated Mn13 steel plate is widely used in mining machinery, crusher liners, hoppers, chutes, excavator buckets, and other high-impact wear environments.
In practical applications, it can reduce maintenance and replacement costs by approximately 40–60% compared with traditional carbon steel or low-alloy wear-resistant steel, making it a highly cost-effective solution for heavy-duty industries.
GNEE has over 18 years of manufacturing and exporting experience in wear-resistant steel products and has supplied solution-treated Mn13 steel plates to mining operators, cement plants, steel mills, and heavy equipment manufacturers in more than 80 countries worldwide.
Our Mn13 steel plates are widely used in high-impact and high-abrasion applications such as crusher liners, hoppers, chutes, and excavator wear parts. We support both large-scale engineering projects and small trial orders, with a minimum order quantity (MOQ) as low as one piece.
Contact now to get the Mn13 high manganese steel plate Quote
Additionally, all solution-treated Mn13 steel plates undergo strict pre-shipment inspection, including 100% solution treatment verification, PMI (Positive Material Identification) chemical analysis, ultrasonic testing (UT), and flatness inspection.
Each plate is supplied with an EN 10204 3.2 Mill Test Certificate (MTC), and our products are fully certified by ISO 9001, SGS, and BV third-party inspection authorities, ensuring consistent quality and reliable performance for critical wear applications.
Solution-treated Mn13 Steel Plate Specification
| Item | Specification |
|---|---|
| Product Name | Solution-treated Mn13 Steel Plate |
| Material Grade | Mn13 / Hadfield Steel / X120Mn12 / ASTM A128 Grade B |
| Standard | GB/T 5680 / ASTM A128 / DIN 1.3401 |
| Product Form | Hot Rolled Wear-resistant Plate / Austenitic Steel Plate |
| Thickness Range | 3 mm – 120 mm |
| Width Range | 1000 mm – 3000 mm |
| Length Range | 2000 mm – 12000 mm (or customized cutting) |
| Surface Condition | Hot rolled / Shot blasted / Pickled (optional) |
| Manufacturing Process | Melting → Hot Rolling → Solution Treatment (1000–1100°C) → Water Quenching → Straightening |
| Delivery Condition | Fully solution-treated & water quenched (fully austenitic structure) |
| Initial Hardness | 180–220 HBW |
| Work-Hardened Hardness | 450–550 HBW (depending on working conditions) |
| Certification | ISO 9001 / SGS / BV / EN 10204 3.1 or 3.2 |
| Inspection | PMI testing, ultrasonic testing (UT), hardness test, dimensional inspection |
| Packaging | Waterproof paper, plastic film, steel straps, wooden pallets, seaworthy export packing |
Solution-treated Mn13 Steel Plate Chemical Composition
| Element | Content (%) |
|---|---|
| Carbon (C) | 1.00 – 1.30 |
| Manganese (Mn) | 11.00 – 14.00 |
| Silicon (Si) | 0.30 – 1.00 |
| Phosphorus (P) | ≤ 0.060 |
| Sulfur (S) | ≤ 0.050 |
| Chromium (Cr) | ≤ 1.00 |
| Nickel (Ni) | ≤ 1.00 |
| Iron (Fe) | Balance (Remaining) |
Solution-treated Mn13 Steel Plate Physical Properties
| Property | Value |
|---|---|
| Density | ~7.85 g/cm³ |
| Initial Hardness | 180 – 220 HBW |
| Work-Hardened Hardness | 450 – 550 HBW (up to higher under extreme impact) |
| Tensile Strength | 800 – 1000 MPa (after work hardening) |
| Yield Strength | 350 – 450 MPa (approx.) |
| Elongation | 35 – 50% |
| Impact Toughness | Very high (excellent resistance to heavy impact loads) |
| Elastic Modulus | ~190 – 210 GPa |
| Thermal Conductivity | ~11 – 14 W/m·K |
| Service Temperature | Suitable for room temperature and low-to-medium temperature wear environments |
Solution-treated Mn13 Steel Plate Tolerance
| Item | Tolerance Range |
|---|---|
| Thickness Tolerance | ±0.3 mm (≤10 mm) / ±0.5 mm (10–50 mm) / ±1.0 mm (>50 mm) |
| Width Tolerance | 0 / +10 mm |
| Length Tolerance | 0 / +15 mm (cut-to-length condition) |
| Flatness Tolerance | ≤ 5 mm per meter (depending on thickness and heat treatment condition) |
| Diagonal Tolerance | ≤ 10 mm for standard sheets |
| Edge Condition Tolerance | Sheared / flame-cut edges allowed, slight irregularity acceptable |
| Surface Deviation | Minor rolling marks permitted, no cracks, no lamination defects |
| Weight Tolerance | ±5% (for theoretical weight delivery) |
What is difference between the A36 and Mn13 steel plate?
Mn13 steel plate has about 3–5 times longer service life than A36 carbon steel in high-impact wear conditions, because Mn13 work-hardens to 450–550 HB, while A36 remains at about 120–160 HB with no work-hardening ability.
What is difference between the A36 and NM400 steel plate?
Mn13 steel plate is better for high-impact and severe shock wear, and can reach 450–550 HB after work hardening, while NM400 has a constant hardness of about 360–420 HB, so Mn13 can last about 1.5–3 times longer than NM400 in strong impact conditions, NM400 performs more stably in low-impact abrasive wear.
Applications of Solution-treated Mn13 steel plate
Mining and quarrying equipment: crusher liners, jaw plates, cone crusher parts, and impact plates.
Cement and construction machinery: hopper liners, chute liners, and heavy-duty conveyor wear plates.
Metallurgical and steel industry: sinter plant liners, steel mill hoppers, and slag handling equipment.
Heavy-duty industrial equipment: excavator buckets, bulldozer blades, and loading equipment wear parts.
Railway and port systems: wagon liners, unloading chutes, and bulk material handling systems.
Mn13 Steel Plate Price Reference Table
| Item | Specification |
|---|---|
| Product | Mn13 Steel Plate (Hadfield Steel / X120Mn12) |
| Price Range (FOB China) | USD 1,200 – 2,500 / ton |
| Price Unit | Per metric ton (MT) |
| Thickness Impact | 3–20 mm: lower range / 50–120 mm: higher range |
| MOQ Impact | Bulk order: lower price / Small order: higher price |
| Heat Treatment Condition | Solution-treated & water quenched: higher cost |
| Processing Cost | Cutting, machining, and edge preparation increase price |
| Surface Condition | Hot rolled standard: base price / shot blasted or machined: higher |
| Market Factors | Manganese price, steel mill output, shipping cost |
| Relative Cost vs Carbon Steel | ~2–4× higher than A36/Q235 |
| Relative Cost vs NM400 | Similar or slightly higher depending on condition |
If you have any project requirements for Mn13 steel plates, we welcome your inquiry and orders. GNEE maintains a stable supply of solution-treated Mn13 steel plates with reliable inventory support for fast delivery.
Contact now to get the Mn13 high manganese steel plate Stock
We offer customized processing services including cutting-to-size, edge preparation, and surface finishing such as hot rolled, shot blasted, and machined conditions to meet different industrial applications.Quality Control of Mn13 Steel Plate
Testing: Chemical composition analysis, hardness test, tensile test, impact test, ultrasonic testing (UT), dimensional inspection, flatness inspection, and visual inspection.
Value-added services: One-stop customized processing, including cutting-to-size, edge preparation, leveling, machining, and solution treatment optimization according to application requirements.
Packaging and Shipping of Mn13 Steel Plate

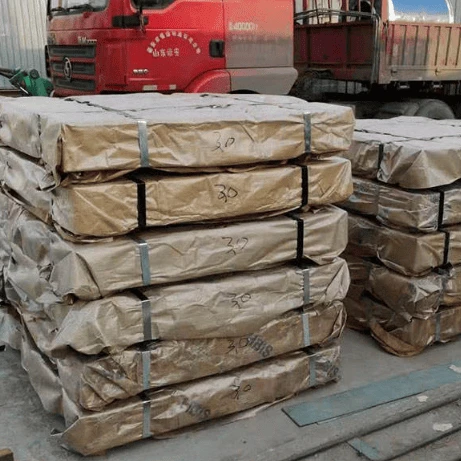

Packaging: Each solution-treated Mn13 steel plate is wrapped with waterproof paper and plastic film, then securely fastened with steel straps. The exterior is reinforced with wooden pallets or crates to ensure safety during handling and international ocean/air transportation.
Labeling: Each package is clearly marked with the heat number, material grade, dimensions, and heat treatment status to ensure full traceability.
Delivery Time: Typically 10–25 working days upon receipt of advance payment, subject to order quantity and customized processing requirements.

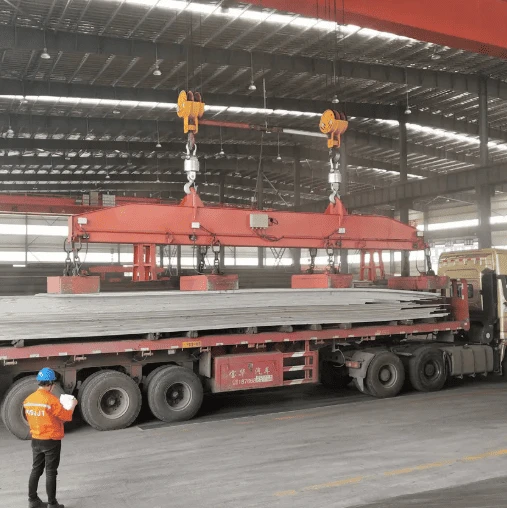

Shipping Method: Sea freight (FCL/LCL), air freight, or multimodal transport tailored to customer requirements and project urgency.
