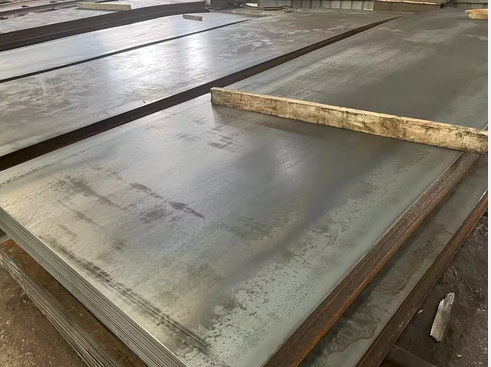

SA204 Grade B is a molybdenum-alloy steel plate specified under ASME/ASTM A204 for use in welded boilers and pressure vessels. The molybdenum addition improves the elevated temperature strength and corrosion resistance of the material, while the balanced carbon and manganese contents support welding and forming. This article describes the chemical composition, mechanical properties, advantages, and principal applications of the grade.
Chemical Composition
The heat analysis of SA204 Grade B is controlled to carbon 0.20 to 0.27%, silicon 0.13 to 0.45%, manganese 0.90 to 0.98%, phosphorus 0.035% maximum, and sulfur 0.035% maximum, with molybdenum 0.45 to 0.60%. The molybdenum content is the defining alloy addition of the grade and provides the elevated temperature strength that distinguishes it from plain carbon pressure vessel steels. The carbon equivalent may be calculated as C + Mn/6 + (Cr+Mo+V)/5 + (Ni+Cu)/15, and the resulting value is monitored to control weldability and avoid hardening in the heat-affected zone.
Mechanical Properties
The minimum yield strength of SA204 Grade B is 275 MPa (40 ksi) and the tensile strength is 485 to 620 MPa (70 to 90 ksi). The minimum elongation is 17% in a 200 mm gauge length and 21% in a 50 mm gauge length. The grade offers higher yield and tensile strength than Grade A while showing slightly lower elongation, reflecting the higher alloy content. The mechanical properties are verified by tensile testing at the mill, and the results are recorded on the original mill test certificate in accordance with the governing specification.
Performance and Advantages
SA204 Grade B offers good weldability, resisting cracking and producing strong, tough welds when appropriate procedures are applied. The molybdenum content provides better resistance to corrosive media than plain carbon steels, and the plate maintains good impact toughness even at lower temperatures. The material exhibits good ductility for cutting, bending, and stamping, which simplifies the fabrication of complex vessel components. The combination of strength, toughness, and elevated temperature performance makes the grade suitable for demanding pressure equipment service.
Applications
In boiler and pressure vessel manufacturing, SA204 Grade B is used for components of industrial boilers, nuclear reactors, and high-pressure tanks. In the petroleum and chemical industry, it serves in reactors, separators, heat exchangers, and storage for liquefied petroleum gas. Power generation applications include high-pressure piping, steam drums, and heat dissipation units in power stations. The grade is also used in shipbuilding for ship hulls and marine structures, and in certain aerospace applications that require a combination of high strength and temperature resistance.
Frequently Asked Questions
What is SA204 Grade B?
SA204 Grade B is a molybdenum-alloy steel plate specified under ASME/ASTM A204 for welded boilers and pressure vessels, with a minimum yield strength of 275 MPa and a tensile strength of 485 to 620 MPa.
What is SA 204 Grade B equivalent to?
SA204 Grade B is used by fabricators serving the oil, gas, and chemical markets. A commonly cited equivalent grade is the French designation 15 CD 4.05, although substitution should always be verified against the governing code.
What is the chemical composition of SA204 Grade B?
The main elements are carbon 0.20 to 0.27%, silicon 0.13 to 0.45%, manganese 0.90 to 0.98%, phosphorus and sulfur 0.035% maximum each, and molybdenum 0.45 to 0.60%.
What are the mechanical properties of SA204 Grade B?
The minimum yield strength is 275 MPa, the tensile strength is 485 to 620 MPa, and the minimum elongation is 17% in a 200 mm gauge length and 21% in a 50 mm gauge length.
Is SA204 Grade B weldable?
Yes. The grade resists cracking and produces strong, tough welds when appropriate welding procedures and consumables are applied, with preheat and post-weld heat treatment as required by the governing code.
What are the typical applications of SA204 Grade B?
Typical applications include industrial boilers, nuclear reactors, high-pressure tanks, reactors, separators, heat exchangers, LPG storage, high-pressure piping, steam drums, and marine structures.
