What Is SA709 Grade 50W
SA709 Grade 50W is a high strength low alloy weathering steel specified in ASTM A709, the standard for structural steel in bridges. The 50 denotes a minimum yield strength of 50 ksi (345 MPa), and W marks the weathering grade, whose copper, chromium, and nickel additions allow a dense, adherent rust patina to develop under atmospheric exposure. Once formed, the patina slows further corrosion to the point that painting can be omitted, which is why the grade is the code-specified material for many exposed bridge applications.
Bridge Superstructure Applications
The dominant application is unpainted highway bridge superstructures. Grade 50W is used for main load-carrying members such as plate girders, rolled beams, box girders, and truss components, where the 50 ksi yield level permits lighter and more efficient designs and the weathering behavior eliminates the recurring cost of repainting. Because impact toughness is mandatory under ASTM A709, the steel also performs reliably under dynamic traffic loading and in cold climates.
Pedestrian and Cycle Bridges
Pedestrian and cycle bridges are a second important field. The stable brown patina is widely accepted as an architectural finish, so the weathered surface is often left visible as a design feature. Low maintenance over the life of the bridge is a further advantage for owners, since the structure does not require periodic blast cleaning and recoating of the steelwork.
Bridge Substructures and Related Uses

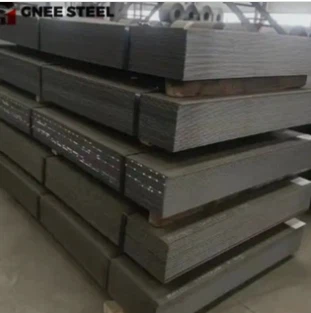

Selected substructure elements can also use Grade 50W, including exposed piers, abutments, and bearing seats located above the waterline. In addition, some sign structures, retaining structures, and other transportation infrastructure use the same grade where the unpainted weathering concept is specified. The steel is also available in plate, rolled shapes, and bars, which widens its fabrication range.
Conditions That Limit Unpainted Service
The weathering mechanism depends on regular wet-dry cycling. Grade 50W should not be used unpainted where the surface stays continuously wet, in locations exposed to salt spray or deicing chemicals, or in heavily polluted industrial atmospheres, because the protective patina may not form properly or may be washed away. In such environments the designer either specifies painting, adds sheltering, or selects another grade. Joints and crevices that trap water also need detailing to avoid accelerated local corrosion.
Specification and Fabrication Notes
Bridge design using Grade 50W follows AASHTO specifications, which define impact test zones, minimum absorbed energy, and detailing rules for unpainted weathering steel. Fabrication follows normal structural steel practice: the material can be cut, drilled, and welded with low-hydrogen procedures, and mill scale and contaminating deposits should be removed so that the patina develops uniformly. The distinctive rust color develops over several months to a few years depending on the local climate.
Frequently Asked Questions
Why is SA709 Grade 50W called weathering steel? It contains copper, chromium, and nickel, which cause a dense oxide patina to form on the surface under wet-dry cycling. This patina protects the underlying steel and reduces the corrosion rate.
What is the yield strength of Grade 50W? The minimum yield strength is 50 ksi, equivalent to 345 MPa, for the thickness ranges covered by ASTM A709.
Does Grade 50W need paint? In the intended unpainted bridge applications it does not. Paint is required only when the environment is unsuitable for weathering behavior, such as salt exposure or continuous moisture.
Can Grade 50W be used in coastal environments? Unpainted service near salt water is generally avoided because chlorides disturb patina formation. Coastal bridges using weathering steel usually require painting of the affected zones.
What is the difference between Grade 50 and Grade 50W? Grade 50 is the plain high strength low alloy grade, while Grade 50W adds the weathering composition. Both meet the same 50 ksi yield requirement, but only 50W is intended for unpainted exposure.
How long does the patina take to form? A stable patina typically develops over six months to two years depending on climate, wet-dry frequency, and air quality, after which the corrosion rate drops to a low steady level.
