The W12×96 A992 h section steel, as a structural steel widely used in construction and industrial applications, features a distinctive H-shaped cross-section that provides excellent load-bearing capacity and stability.
W12×96 A992 h section steel
A992 Wide Flange H Beam, a high-strength, low-alloy steel under the American standard, and is highly regarded for its high strength, good toughness, and excellent weldability.
Contact now to get an A992 H Beam Quote
Section Specifications of W12×96 A992 Wide Flange H Beam
| Parameter | Value |
|---|---|
| Beam Designation | W12×96 |
| Nominal Height (H) | 12.22 in / 311 mm |
| Flange Width (B) | 12.01 in / 305 mm |
| Web Thickness (t1) | 0.91 in / 23 mm |
| Flange Thickness (t2) | 1.41 in / 36 mm |
| Weight per Foot | 96 lb/ft / 142.6 kg/m |
| Section Area | 28.2 in² / 18,190 mm² |
| Moment of Inertia (Ix) | 1,430 in⁴ / 39,000 cm⁴ |
| Section Modulus (Sx) | 233 in³ / 3,820 cm³ |
| Radius of Gyration (rx) | 7.14 in / 181 mm |
Chemical Composition of ASTM A992 H beam
| Element | Maximum / Range (%) |
|---|---|
| Carbon (C) | 0.26 |
| Manganese (Mn) | 1.0 – 1.5 |
| Silicon (Si) | 0.40 |
| Sulfur (S) | 0.05 |
| Phosphorus (P) | 0.04 |
| Copper (Cu) | 0.20 |
| Nickel (Ni) | 0.40 |
| Chromium (Cr) | 0.40 |
| Molybdenum (Mo) | 0.15 |
Physical & Mechanical Properties of A992 metal steel beam
| Property | Value |
|---|---|
| Minimum Yield Strength (Fy) | 50 ksi (≈345 MPa) |
| Tensile Strength (Fu) | 65–100 ksi (≈448–690 MPa) |
| Elongation (L0=8") | ≥18% |
| Density | 7.85 g/cm³ |
| Elastic Modulus (E) | 29,000 ksi (≈200 GPa) |
| Shear Modulus (G) | ≈11,200 ksi (≈77 GPa) |
| Charpy Impact Temperature | -50 °F (≈-45 °C) |
Contact now to get an A992 H Beam Quote
Applications of W12×96A992 Structural Steel Beams H-Beam
The W12×96 A 992 H-beam is commonly used in the construction of large-frame structures such as bridges, high-rise buildings, and warehouses. Its moderate cross-sectional dimensions meet structural strength requirements while maintaining economic efficiency. Additionally, being A992-grade steel, it exhibits excellent corrosion resistance, ensuring stable performance under various environmental conditions.
The W12×96 A992 Structural Steel Beam also plays an important role in industrial applications. In industries such as petrochemical, power generation, and machinery manufacturing, it is often used for equipment supports, conveyor line supports, machine bases, and other structural components. In these applications, the beam's strength and stability effectively support and secure equipment, ensuring smooth industrial operations.

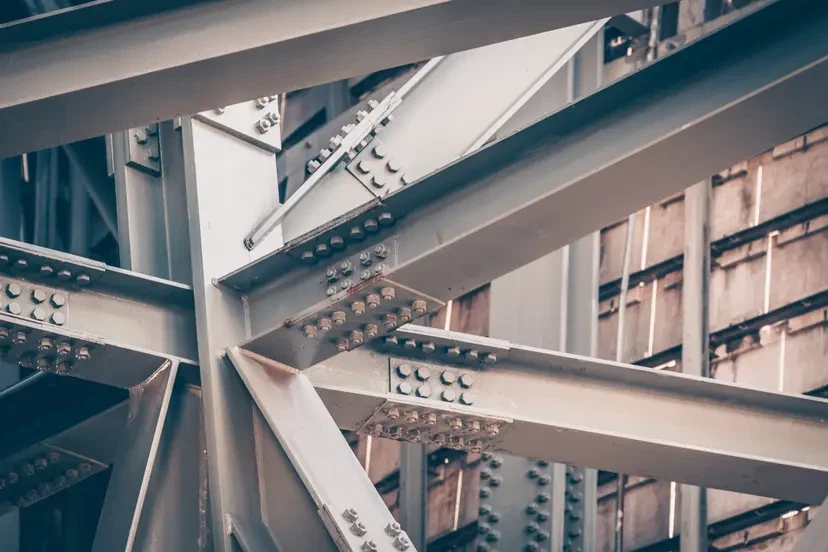

W12×96 A992 H-beam
When used as a structural material, the W12×96 A992 H-beam must also be considered in conjunction with other materials. In practice, designers and engineers need to select appropriate connection methods and auxiliary materials based on the specific structural requirements and environmental conditions to ensure the overall safety and stability of the structure.
We can provide material certificates for A992 structural steel beams, including detailed information on chemical composition, mechanical properties, and compliance with ASTM A992/A992M standards.
A992 structural steel beam
These certificates ensure full traceability and allow engineers to verify that the steel meets project specifications and quality requirements.
Contact now to get an A992 H Beam Quote
Q: What is A992 steel equivalent to?
A: ASTM A992 is currently the most available steel type for structural wide-flange beams. The industry's technical institute describes the standard thus: "ASTM A992 (Fy = 50 ksi, Fu = 65 ksi) is the preferred material specification for wide-flange shapes, having replaced ASTM A36 and A572 grade 50.
Q: What is the ultimate strength of A992 steel?
A: Tensile yield strength, 345 MPa (50 ksi); tensile ultimate strength, 450 MPa (65 ksi); strain to rupture (sometimes called elongation) in a 200-mm-long test specimen, 18%; strain to rupture in a 50-mm-long test specimen, 21%. ASTM A992 is currently the most available steel type for structural wide-flange beams.
Q: What are the mechanical properties of A992 steel beams?
A: A992 H-Beams have a minimum yield strength of 345 MPa (50 ksi) and tensile strength ranging from 450 to 620 MPa (65–90 ksi). This high strength allows for smaller cross-sections, reducing structural weight while maintaining load-bearing capacity and stability.
Q: How is the weldability of A992 H-Beams?
A: A992 steel has a low carbon equivalent, which ensures excellent weldability. It can be welded using standard techniques such as SMAW, GMAW, and FCAW, with minimal preheating or post-weld heat treatment required, making it ideal for on-site construction.
Q: What makes A992 steel suitable for seismic or dynamic load applications?
A: The steel exhibits excellent toughness and ductility, allowing it to absorb and dissipate energy under dynamic or seismic loads. This reduces the risk of brittle failure and enhances structural safety in high-rise buildings, bridges, and industrial facilities.
Q: Can A992 H-Beams contribute to sustainable construction?
A: Yes, A992 steel is 100% recyclable, and its high strength allows for smaller structural sections, reducing material usage. Efficient manufacturing and construction, combined with a long service life, make it a sustainable choice for modern building projects.
