Looking for high-quality EN10025-2 S355J0 steel plate? GNEE Steel supplies S355J0 steel plates in untreated or normalized condition, featuring medium tensile strength, low carbon content, and excellent weldability.

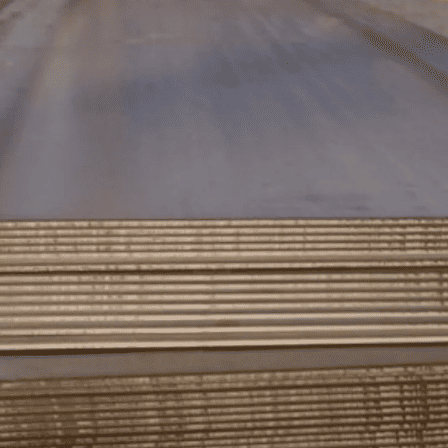

EN10025-2 S355J0 steel plate
This material also offers good impact resistance, making it suitable for a wide range of structural and industrial applications.
Delivery Conditions of S355J0 Steel Plate
Available Conditions:
As-Rolled (+AR): Standard hot-rolled delivery without special heat treatment
Normalized (+N): Rolled and heat-treated to ensure uniform grain structure and mechanical properties
Machinability and Fabrication of S355J0 Steel Plate
S355J0 steel plate offers excellent machinability and fabrication performance, comparable to conventional mild structural steels. Thanks to its controlled carbon content and balanced alloy composition, it can be efficiently processed using standard workshop equipment without special tooling requirements.
Cutting
S355J0 steel plate can be cut using a wide range of thermal and mechanical methods, ensuring flexibility in fabrication shops:
Saw cutting for precise straight cuts and small batch processing
Laser cutting for complex shapes with high dimensional accuracy and minimal heat-affected zones
Plasma cutting suitable for thicker plates and heavy structural components
Shearing for fast processing of thinner plates
Proper cutting parameters help maintain edge quality and reduce the need for secondary finishing.
Grinding and Surface Finishing
S355J0 steel plate responds well to grinding and surface treatment operations:
Smooth and uniform surface finishes can be achieved through standard grinding
Suitable for deburring, edge rounding, and surface preparation prior to painting or coating
Compatible with shot blasting and sandblasting for improved coating adhesion
These characteristics make S355J0 ideal for visible structural components and fabricated assemblies.
Welding
S355J0 steel plate demonstrates excellent weldability due to its low carbon equivalent (CEV), reducing the risk of cold cracking:
Fully compatible with common welding processes such as SMAW (Shielded Metal Arc Welding)
GTAW (TIG welding) for precision welding applications
SAW (Submerged Arc Welding) for thick plates and large-scale fabrication
In most cases, preheating is not required for thinner sections, while thicker plates may benefit from controlled preheating depending on joint design and ambient conditions.
Forming and Shaping
S355J0 steel plate supports a wide range of cold and hot forming operations:
Bending and rolling for beams, shells, and curved components
Press forming and shaping for structural and mechanical parts
Maintains good dimensional stability after forming
Its balanced strength and ductility allow complex shapes to be formed without cracking or excessive springback.
Typical Applications of S355J0 Steel Plate
Due to its reliable mechanical properties and ease of fabrication, S355J0 steel plate is widely used across multiple industries:
Construction
Bridges, high-rise buildings, and steel-frame structures
Load-bearing beams, columns, and connection plates
Engineering & Machinery
Cranes, lifting equipment, and industrial machinery frames
Heavy-duty structural components requiring consistent strength
Yellow Goods (Construction Equipment)
Earth-moving machinery such as excavators, loaders, and bulldozers
Structural parts exposed to dynamic loads and vibrations
Tanks & Vessels
Chemical storage tanks and general-purpose vessels
Structural elements of pressure-adjacent equipment (non-pressure parts)
Rail & Energy Infrastructure
Railway components, support frames, and track-related structures
Transmission towers, wind power structures, and energy-related steel frameworks
Chemical Composition of S355J0 Steel Plate
| Element | C | Mn | Si | Cu | P | S | Ni | Cr | Mo | CEV* |
|---|---|---|---|---|---|---|---|---|---|---|
| Max % | 0.22 | 1.6 | 0.55 | 0.55 | 0.030 | 0.030 | – | 0.55 | 0.55 | 0.47 |
*Note: Values vary with section thickness and grade variation
Mechanical Properties of S355J0 Steel Plate
| Property | Value | Unit |
|---|---|---|
| Yield Strength (ReH, min) | 355 | MPa |
| Tensile Strength (Rm) | 470–630 | MPa |
| Elongation (A, min) | 22 | % |
| Impact Toughness (Charpy V) | 27 | J |
Why Choose GNEE for S355J0 Steel Plate?
- Reliable Supply: Regular stock in multiple sizes and thicknesses
- Lab-Certified Materials: Ensuring quality and traceability
- Cost Savings: Non-standard sizes help reduce wastage and material costs
- Global Shipping: Fast delivery from China to worldwide projects
- Technical Support: Expert guidance for selecting S355J0 or alternative grades
What is Application of S355J0W Steel Plate
EN 10025_5 S355J0W Corrosion resistant steel plate is mainly used for container steel.Moreover, With improved atmospheric corrosion resistance S355J0W applications is as following: architecture, smokestacks, fabrication,freight wagons, silos, pylons and bridges.
What is EN 10025-5 steel plate S355J0W equivalent material
The steel plate S355J0W is under standard EN 10025-5. For S355J0W, S is short for structural steel; 355 means the minimum yield strength of S355J0W steel shall be 355Mpa; and W is for weather steel. EN 10025-5 steel plate S355J0W is kind of a weather resistant steel, and it can be more accurately termed as atmospheric corrosion resistant steel.
Do you have certificates or test reports for EN 10025-5 steel plate S355J0W?
Yes, we have MTC, ISO, SGS report, etc.
How long is your delivery time for EN 10025-5 steel plate S355J0W?
Generally it is 5-10 days for stock. And 35 days or so for fresh production, which is also up to the required quantity, specs, technical requirements and so on factors.
Do you provide EN 10025-5 steel plate S355J0W sample? Is it free or extra?
Yes, sample free. But the freight cost should be paid by the customer.
