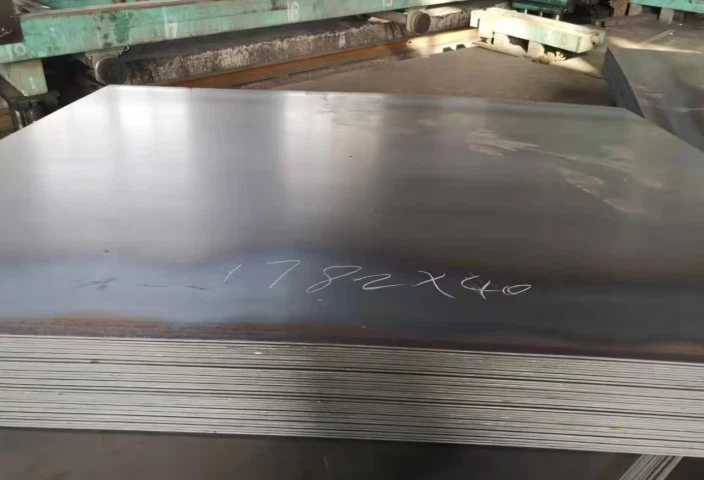

ASTM A387 Grade 11 Class 1 is a specific type of chromium-molybdenum (Cr-Mo) alloy steel plate designed for welded boilers and pressure vessels used in high-temperature, high-pressure applications, common in the oil & gas, petrochemical, and power generation industries. This material offers excellent high-temperature strength, creep resistance, and oxidation resistance due to its alloying elements (around 1.25% Chromium and 0.5% Molybdenum).
|
A387 Gr.11 CL.1Chemical Composition |
|||||||
|
Grade |
The Element Max (%) |
||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
|
|
A387 Gr.11 Cl.1 |
0.04-0.17 |
0.44-0.86 |
0.35-0.73 |
0.035 |
0.035 |
0.94-1.56 |
0.40-0.70 |
|
Grade |
A387 Gr.11 CL.1Mechanical Property |
|||
|
Thickness |
Yield |
Tensile |
Elongation |
|
|
A387 Gr.11 Cl.1 |
mm |
Min Mpa |
Mpa |
Min % |
|
t≦50 |
240 |
415-585 |
22 |
|
|
50<t≦200 |
240 |
415-585 |
19 |
|
|
Equivalent steel grade of A387 Gr.11 Cl.1 |
||||||||
|
Europe |
Belgium |
Germany |
France |
Italy |
Sweden |
India |
Japan |
U.K |
|
|
|
|
|
|
|
|
|
621 gr. A,B |
Application Industries Of Alloy Steel ASTM A387 Grade 11 Class 1 Plate
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry
Why Choose Us :
You can get the perfect material according to your requirement at the least possible price.
We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
e guarantee to give a response within 24hours(usually in the same hour)
You can get stock alternatives, mill deliveries with minimizing manufacturing time.
We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
If you have project requirements for A387 Grade 11 Class 1, we welcome your inquiry. GNEE maintains a large inventory of commonly used high strength steel grades for your selection.For detailed mechanical properties, chemical composition, and technical data, as well as free samples, please contact our factory immediately. We offer competitive prices, stable quality, and professional service. Email:beam@gneesteelgroup.com.
1.What is ASTM A387 Grade 11 equivalent to?
ASTM A387 grade 11 equivalent steel is ASME SA387 grade 11. ASTM A387 grade 11 covers A387 grade 11 class 1 and A387 grade 11 class 2, which are equivalent to ASME SA387 grade 11 class 1 and SA387 grade 11 class 2 respectively.
2.What is A387 grade 11 material?
The ASTM A387 specification is the Standard Specification for Pressure Vessel Plates, Alloy Steel, Chromium-Molybdenum intended primarily for use in welded boilers and pressure vessels designed for elevated temperature service. SSAB can supply A387 Grade 11 to the tension test requirements for Class 1 and/or Class 2.
3.What is the chemical composition of ASTM A387 Grade 11 Class 1?
ASTM A387 Grade 11 Class 1 is a chromium-molybdenum alloy steel with key elements including approximately 1.00-1.50% Chromium (Cr), 0.45-0.65% Molybdenum (Mo), and limited Carbon (C) (0.05-0.17%), designed for high-temperature pressure vessels, offering good creep, oxidation, and corrosion resistance. Other elements like Silicon (Si), Manganese (Mn), Phosphorus (P), and Sulfur (S) are also present within specified ranges.
