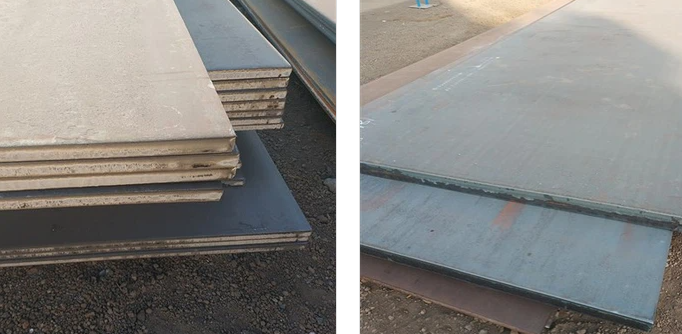

SA283 Grade C is a structural quality, low to intermediate tensile strength carbon steel plate used for general applications like structural components, tanks, and equipment, known for being easily weldable and machinable, with mechanical properties including a minimum yield strength of 30 ksi (205 MPa) and tensile strength of 55-75 ksi (380-515 MPa). It's an ASME/ASTM standard (A283/A283M) for structural use, distinct from pressure vessel steels, and is supplied as-rolled, offering good formability for various fabrications.
Key Characteristics:
Type: Structural Carbon Steel Plate.
Applications: General structural purposes, low-pressure tanks, building construction, equipment fabrication.
Strength: Low to intermediate tensile strength.
Weldability: Good, generally considered soft and easy to weld.
Is SA283 Grade C Weldable?
Yes, SA283 Grade C is highly weldable. It is considered one of the most weldable structural steel plates due to its low carbon content (max 0.24%) and simple chemical composition, which minimize the risk of hardening and cracking in the heat-affected zone (HAZ).
Key Reasons for Excellent Weldability:
Low Carbon Equivalent (CEV): Its typical CEV is very low (often below 0.30), indicating minimal risk of hydrogen-induced (cold) cracking.
No Mandatory Preheat: For most thicknesses (commonly up to 1 inch / 25 mm) and under normal conditions, preheating is not required. This simplifies fabrication.
Compatibility with Common Processes: It can be easily welded using all standard processes:
Shielded Metal Arc Welding (SMAW)
Gas Metal Arc Welding (GMAW/MIG)
Flux-Cored Arc Welding (FCAW)
Submerged Arc Welding (SAW)
Best Practices for Reliable Welds:
Consumables: Use common, low-strength electrodes like E60XX or E70XX series (AWS). For best results with higher deposition processes, low-hydrogen types (E7018) are recommended but not always mandatory.
Special Conditions: For very thick sections (e.g., > 1.5 inches / 38 mm) or welding in cold environments (below 50°F / 10°C), a light preheat (150-250°F / 65-120°C) may be prudent to ensure proper fusion and prevent rapid cooling.
Cleanliness: Always remove mill scale, rust, moisture, and contaminants from the joint area before welding.
Comparison to Other Steels:
vs. Higher-Strength Steels (A572 Gr. 50): SA283 Gr. C is much more forgiving and requires far less stringent procedures.
vs. Pressure Vessel Steels (SA516): SA516 often requires controlled procedures and Charpy testing; SA283 Gr. C does not.
Limitation to Note:
Its weldability is a key feature, but the welded assembly will only be as strong as the base metal. The HAZ will retain the base metal's properties (~30 ksi yield). It is not designed for applications requiring high-integrity, impact-tested welds (e.g., pressure vessels, low-temperature service).
Conclusion: SA283 Grade C is an excellent choice for general fabrication requiring extensive welding and forming. It allows for simple, cost-effective welding without complex procedures, making it a favorite in shops for tanks, frames, and structural components.
1. What Is SA283 Grade C?
SA283 Grade C is a low-carbon, general-purpose structural steel plate in the ASTM A283 standard, commonly used for low-stress structural applications like tanks, bins, and building frames where welding and forming are required.
2. What Is The Yield Strength Of SA283 Grade C?
The minimum yield strength of SA283 Grade C is 30,000 psi (205 MPa), making it suitable for applications with moderate structural loads.
3. What Is The Difference Between SA283 Grade A, B, C, And D?
The primary difference is increasing strength: Grade A (24 ksi min yield), Grade B (27 ksi), Grade C (30 ksi), and Grade D (33 ksi). Higher grades offer more strength but slightly less formability.
4. Is SA283 Grade C Weldable?
Yes, SA283 Grade C has excellent weldability due to its low carbon content, making it suitable for most common welding methods like SMAW, GMAW, and SAW without requiring complex procedures.
5. What Is SA283 Grade C Equivalent To In Europe?
The closest European equivalent is S235JR (EN 10025-2) based on comparable yield strength (~235 MPa nominal) and general application. Note that S235JR has mandatory impact toughness.
6. Where Is SA283 Grade C Commonly Used?
It is used in fabricating storage tanks, water towers, ductwork, building frames, agricultural equipment, and other general structural components not subjected to high stress or pressure.
7. Can SA283 Grade C Be Galvanized?
Yes, its low-carbon, low-alloy composition makes it an excellent candidate for hot-dip galvanizing, commonly used for outdoor structural components requiring corrosion protection.
8. What Is The Chemical Composition Of SA283 Grade C?
Typical composition includes Carbon (max 0.24%), Manganese (max 0.90%), Phosphorus (max 0.035%), and Sulfur (max 0.04%), ensuring good weldability and formability.
9. Is SA283 Grade C A Pressure Vessel Steel?
No, it is not rated for pressure-retaining service. For pressure vessels, materials like SA516 Grade 60 or 70 (with notch toughness requirements) are specifically designed and coded for that purpose.
10. What Is The Difference Between SA283 And A283?
There is no technical difference. A283 is the ASTM material standard, while SA283 is the ASME Boiler and Pressure Vessel Code adoption of the same standard, requiring ASME-compliant certification for code-bound components.
Full specification and details are available on request. The above information is provided for guidance purposes only. For specific design requirements please contact our technical sales staff.
