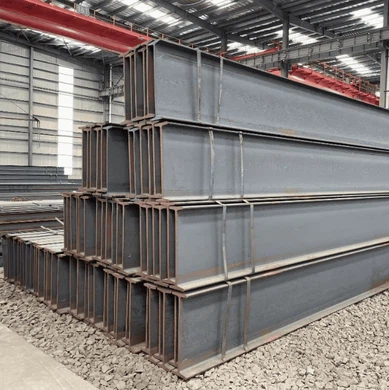

In the field of steel structure engineering, H-beams are widely used due to their excellent cross-sectional performance. S355JR Structural H Beam, as a European standard low-alloy high-strength structural steel, is highly favored in various construction and bridge projects. This article provides a detailed explanation of the core features and practical value of this steel.
Parameters of S355JR H-Beams
S355JR is a low-alloy high-strength structural steel under the European standard EN 10219. "S" stands for structural steel, "355" indicates a yield strength of ≥355 MPa, and "JR" denotes the impact toughness requirement (impact energy ≥27 J at -20℃).
Common specifications include H100×100×6×8, H300×150×6.5×9, etc. The cross-section has an "H" shape, with uniform web and flange thicknesses, offering bending resistance superior to ordinary I-beams.
Contact now to get the S355JR H beams Quote
Advantage of S355JR H Beams
Compared with ordinary carbon steel, S355JR has the following advantages:
High yield strength – allows for reduced cross-sectional dimensions and lowers structural weight.
Good low-temperature toughness – suitable for scenarios with fluctuating winter temperatures, such as in Yangzhou.
Excellent weldability – facilitates on-site fabrication of complex components.
S355JR H-beams
In a cross-river bridge project in China, S355JR replaced traditional Q345B steel, saving approximately 12% of steel usage and shortening the construction period by 8 days.
Mechanical Properties of S355JR H Profiles
| Property | Value | Test Condition / Note |
|---|---|---|
| Yield Strength (ReH) | ≥355 MPa | Room temperature |
| Tensile Strength (Rm) | 470–630 MPa | Room temperature |
| Elongation (A) | ≥20% | Depends on cross-section |
| Impact Energy (KV) | ≥27 J | -20°C |
| Hardness | ≤180 HB | Brinell |
| Density | ~7.85 g/cm³ | Standard steel density |
Contact now to get the S355JR H beams Quote
Typical Applications of S355JR H Beam in Engineering

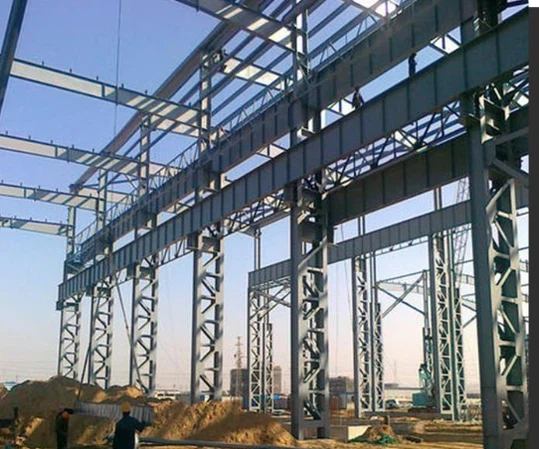

Construction: H300×300 H-beams are commonly used in multi-story factories and high-rise building frame columns. When combined with concrete, they enhance overall seismic performance.
Bridge Engineering: S355JR H-beams have been applied in temporary support systems for the Gaoyou Lake Grand Bridge and in renovation projects at the Jiangdu Water Conservancy Hub.
Warehousing and Logistics: In a cold-chain logistics park in Yangzhou, S355JR H beams were used for racking structures. Thanks to their high load-bearing capacity, single-span lengths reached up to 15 meters.
How to choose the S355JR H beam
Quality Verification: Upon receipt of the steel, check the certificate of conformity (indicating melting composition and mechanical properties). Ensure the surface is free of cracks and laminations, and the perpendicularity deviation between flanges and web is ≤1.5 mm/m.
Corrosion Protection: In Yangzhou's humid climate, it is recommended to apply anti-corrosion coatings on welded areas. A combination of zinc-rich primer and fluorocarbon topcoat can extend service life.
Storage and Moisture Prevention: Avoid outdoor stacking. Steel should be supported on wooden blocks at least 30 cm above the ground and covered with waterproof tarpaulin during the rainy season.
S355JR H-beams play an important role in steel structure engineering due to their high strength and cost-effectiveness. Proper selection and standardized construction can effectively improve project quality and safety.
For further information on specific parameters or construction details, Gnee, as a professional S355JR H-beam supplier, can provide technical support.
Contact now to get the S355JR H beams Quote
What is the US equivalent of S355JR?
Common equivalents include: S235JR: Equivalent to ASTM A36. S275JR: Equivalent to ASTM A572 Grade 42. S355JR/J2: Equivalent to ASTM A572 Grade 50.
What is grade S355JR?
S355JR steel has a high strength-to-weight ratio, making it suitable for use in load-bearing structures such as bridges, buildings, and offshore structures. It has a minimum yield strength of 355 N/mm², making it one of the strongest steel grades available.
Is S355J2 better than S355JR?
The primary evolution within this trio is: Basic toughness at room temperature (S355JR) → Enhanced toughness for cold climates (S355J2) → Enhanced toughness PLUS improved properties for critical fabrication (S355J2+N). Key Metric: Charpy V-Notch Impact Energy ≥ 27 Joules at +20°C.
What is the difference between S275JR and S355JR?
As to S275JR VS S355JR, actually they are totally not same thing. S275JR is carbon steel, while S355JR is low alloy steel. Both carbon steel S275JR and S355JR low alloy steel are under EN10025-2 standard. The S355JR low alloy steel is higher steel grade than carbon steel S275JR.
What type of steel is S355JR?
Steel grade S355JR is used to manufacture hot-rolled flat and long products, which are subsequently used when producing steel building structures. Classification: Non-alloy structural steel. Products: Flat and long products, semi-finished products.
