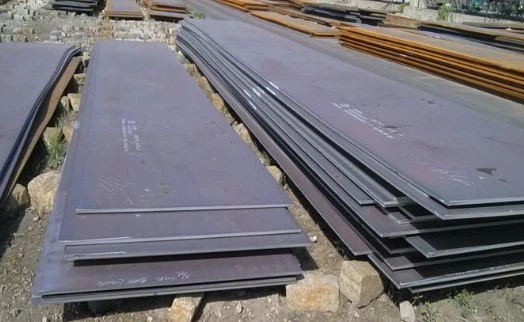

A537 Class 3 is a pressure vessel steel plate used in oil and gas, petrochemical, and power generation applications. It is designed for moderate to elevated temperatures and offers good strength and toughness. Supplied in the normalized and tempered condition, it has a fine-grained microstructure that enhances its mechanical properties. It is commonly used in boilers, heat exchangers, and other pressure-containing equipment requiring reliable performance under stress.
Chemical Composition of ASTM A537 Class 3
|
Element |
Composition (%) |
|---|---|
|
Carbon (C) |
0.24 max |
|
Manganese (Mn) |
0.70-1.35 (≤40mm thickness) 1.00-1.60 (>40mm thickness) |
|
Phosphorus (P) |
0.035 max |
|
Sulfur (S) |
0.035 max |
|
Silicon (Si) |
0.15-0.50 |
|
Copper (Cu) |
0.35 max (if specified) |
|
Nickel (Ni) |
0.25 max (if specified) |
|
Chromium (Cr) |
0.25 max (if specified) |
|
Molybdenum (Mo) |
0.08 max (if specified) |
Mechanical Properties of ASTM A537 Class 3
|
Property |
Value |
|---|---|
|
Tensile Strength |
75-95 ksi (515-655 MPa) (≤65mm) 70-90 ksi (485-620 MPa) (>65-100mm) 65-85 ksi (450-585 MPa) (>100-150mm) |
|
Yield Strength |
55 ksi (380 MPa) min (≤65mm) 50 ksi (345 MPa) min (>65-100mm) 40 ksi (275 MPa) min (>100-150mm) |
|
Elongation (in 50mm) |
22% min (≤100mm) 20% min (>100mm) |
|
Reduction in Area |
Not specified, typically high |
applications
Oil and Gas: Used in pressure vessels, storage tanks, separators, and piping systems for both onshore and offshore operations, where strength and toughness under pressure are essential.
Petrochemical Industry: Applied in reactors, process tanks, and key processing equipment that handle high temperatures and cyclic loading during chemical reactions and separation processes.
Power Generation: Utilized in boiler sections and steam system components that must endure high-pressure steam and repeated thermal cycling.
Chemical Processing: Selected for moderate-pressure storage tanks and vessels containing various chemicals, where reliable structural performance is required under a range of operating conditions.
Why Choose Us :
You can get the perfect material according to your requirement at the least possible price.
We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
We guarantee to give a response within 24hours(usually in the same hour)
You can get stock alternatives, mill deliveries with minimizing manufacturing time.
We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
Get an valued quotation for beam@gneesteelgroup.com, Contact GNEE Steel.
Is A537 Class 3 suitable for welding?
Yes, A537 Class 3 is generally considered to have good weldability. Proper welding procedures, including preheating and post-weld heat treatment when necessary, should be followed to ensure sound welds and maintain the material's mechanical properties.
What temperature range is A537 Class 3 suitable for?
A537 Class 3 is designed for service at moderate to elevated temperatures. It is commonly used in applications where temperatures range from cryogenic levels up to several hundred degrees Celsius, depending on the specific design and code requirements.
