hot work tool steel Product Introduction
H14 steel is a steel grade in the ASTM A681 standard.
AISI H14 chromium hot work tool steel contains a small amount of tungsten, which provides enhanced high temperature properties and excellent heat resistance. It exhibits minimal dimensional changes during quenching, making it ideal for use in durable die-cast molds.
H14 steel is a hot work tool steel known for its significant wear resistance, strength and toughness. It is commonly used in the manufacture of cutting tools, molds and various forms of machinery, benefiting from its excellent properties. Tungsten is added to this steel to enhance its high temperature properties and resistance to heat.
H14 steel material comes into its own in long-life die-casting molds, where its high temperature resistance and minimal dimensional changes during hardening ensure extended mold life and increased operating efficiency.
hot forging die steel
Hot Work Die Steel Product Details
Relevant H14 Hot Work Steel Specifications and Equivalent Steel Grades
| Specification | Equivalent Grades |
|---|---|
| AISI H14 | DIN 1.2344, JIS SKD61 |
H14 Tool Steel Chemical Composition
| Grade | Chemical Composition | |||||||||||
| C | Si | Mn | P | S | Cr | W | ||||||
| H14 | 0.35 | 0.45 | 0.80 | 1.25 | 0.20 | 0.60 | 0.03 | 0.03 | 4.75 | 5.50 | 4.00 | 5.25 |
H-14 Steel Properties:
| Properties | Metric | Imperial |
| Hardness, Rockwell C (air cooled from 982°C, 30 mins) | 52 | 52 |
| Hardness, Rockwell C (air cooled from 1010°C, 30 mins) | 55 | 55 |
| Hardness, Rockwell C (air cooled from 1038°C, 30 mins) | 56 | 56 |
| Modulus of elasticity | 207 GPa | 30000 ksi |
| Charpy impact (V-notch; air cooled from 1010°C; 490°C temper temperature) | 12.9 J | 9.50 ft-lb |
| Charpy impact (V-notch; air cooled from 1010°C; 370°C temper temperature) | 16.3 J | 12.0 ft-lb |
| Charpy impact (V-notch; air cooled from 1010°C; 650°C temper temperature) | 17.6 J | 13.0 ft-lb |
| Machinability (1% carbon steel) | 70.0 – 75.0% | 70.0 – 75.0% |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
mould steel
GNEE Group receives visiting customers
At GNEE, customers always come first. We work closely with each customer to understand their unique needs and challenges, customizing our products to provide the most appropriate solution.

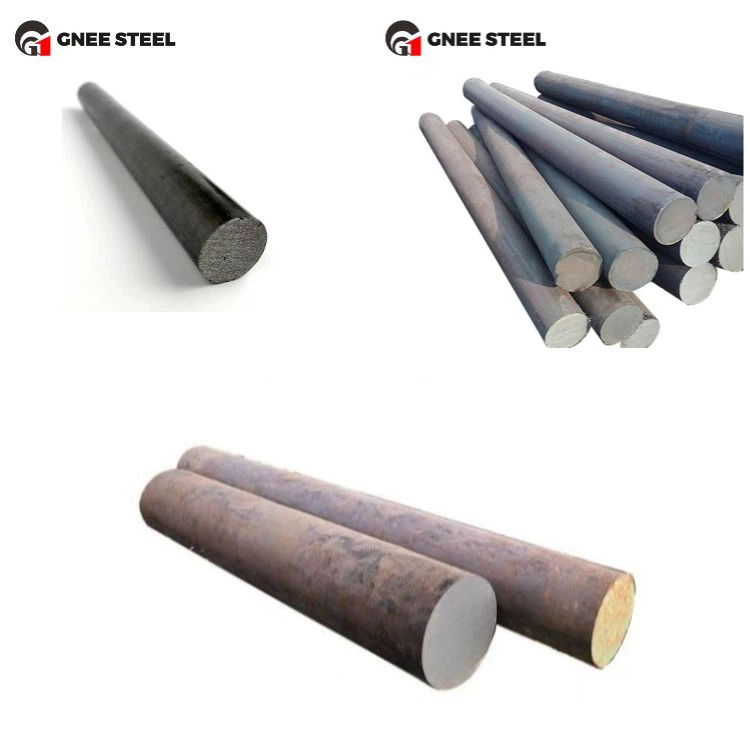

Steel Bar
If you have more needs and questions about steel, please contact us!
