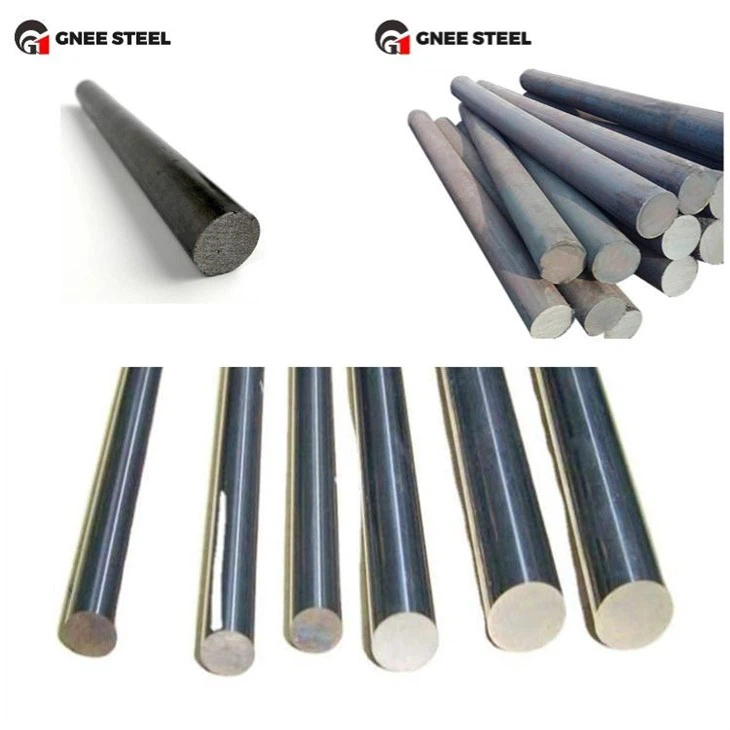

W18Cr4V High Speed Steel Bar Product Introduction
W18Cr4V belongs to the tungsten series high-speed steel with high hardness, red hardness and high temperature hardness. It has a wide heat treatment range, is not easily overheated during quenching, is not easily oxidized and decarburized during the heat treatment process, and has good grinding performance. The steel maintains its hardness at HRC63-64 and HRC62-63 at 500°C and 600°C respectively, and has good cutting performance on a wide range of common machining materials.
W18Cr4V high-speed steel is a Lesenite steel and is the longest-used high-speed steel. Like other high-speed steels, it is often called "white steel", "front steel" or "air steel" (air-cooled quenching). When the cutting temperature is 540 degrees, the hardness can be maintained at HRC66; when the cutting temperature is 600 degrees, the hardness can be maintained at HRC63.
W18Cr4V - Steel Grades
High Strength High Speed Tool Steel Product Details
Chemical Composition:
C(％) |
Si(％) |
Mn(％) |
P(％) |
S(％) |
Cr(％) |
V(％) |
Mo(％) |
W(％) |
|---|---|---|---|---|---|---|---|---|
0.70～0.80 |
≤0.40 |
≤0.40 |
≤0.030 |
≤0.030 |
3.80～4.40 |
1.00 ~ 1.40 |
≤0.30 |
17.50 ~ 19.00 |
Mechanical Propoerties:
Yield Strength
|
Tensile Strength
|
Elastic Modulus
|
Elongation
|
Coefficient of thermal
|
Thermal conductivity W/m℃ |
Hardness |
|---|---|---|---|---|---|---|
≥ 1880(110) |
≥ 1990(130) |
225000 |
≥ 9 |
12.1x10-6 |
24.0 |
≤63 HRC |
High Speed Tool Steel
GNEE Group receives visiting customers
Strict quality control system and perfect after-sales service system are the primary issues we always pay attention to, which can guarantee and track the quality of our products from the aspects of raw material procurement, production process, finished products and after-sales service.
Steel Bar
If you have more needs and questions about steel, please contact us!
