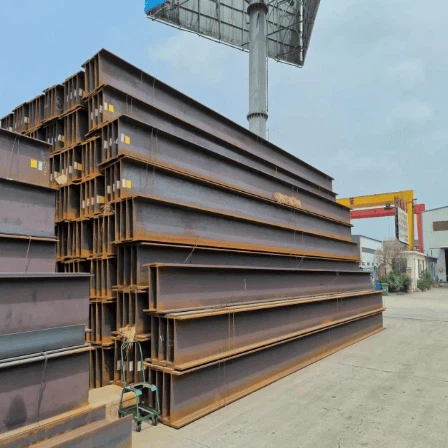

Fixed Outer Dimension H Shape Steel (H-beams) is a crucial material in construction due to its consistent dimensions, which ensure ease of design and integration into various structural projects.
These beams are widely used for their superior load-bearing capacity, stability, and flexibility in fabrication.
Specifications
| Size | Height (H) | Width (B) | Flange Thickness (t_f) | Web Thickness (t_w) |
|---|---|---|---|---|
| Small | 100mm – 200mm | 100mm – 200mm | 6mm – 10mm | 6mm – 8mm |
| Medium | 200mm – 500mm | 200mm – 300mm | 10mm – 16mm | 8mm – 12mm |
| Large | 500mm – 900mm | 300mm – 500mm | 16mm – 24mm | 12mm – 18mm |
Load-Bearing Capacity
| Beam Size | Load Capacity (per beam) | Typical Applications |
|---|---|---|
| H200×200×8×12 | 350-400 kN | Small buildings, light bridges |
| H300×300×10×15 | 600-700 kN | Medium structures, factory support |
| H500×500×15×20 | 1000-1200 kN | High-rise buildings, industrial use |
Applications in Construction
Building Structures:
Fixed Outer Dimension H Shape Steel provides essential structural support for floors, columns, and roofs, often used in commercial and residential buildings.
Bridges:
Due to its high load-bearing capacity, it's a common choice for large bridge constructions, ensuring stability under heavy traffic.
Industrial Infrastructure:
Used extensively in manufacturing facilities, power plants, and transportation networks where durability and precision are paramount.
