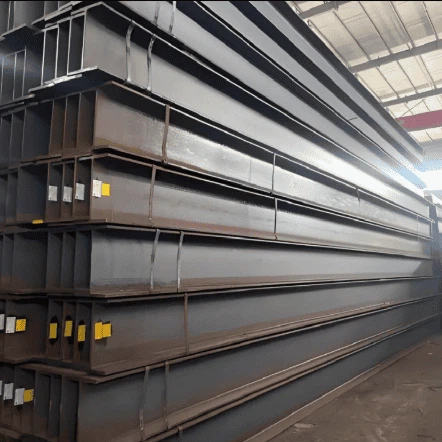

ASTM A992 steel is currently recognized as the most widely used steel grade for wide-flange beams (H-beams) worldwide. This high-strength low-alloy (HSLA) steel contains alloying elements such as vanadium, columbium, copper, nickel, chromium, and molybdenum, which significantly enhance its strength, weldability, and overall mechanical performance.
Compared to A36 H-beams and A572 GR50 H-beams, A992 H-beams offer:
Higher strength: tensile strength 65 ksi (~450 MPa) and yield strength 65 ksi (~450 MPa)
Better seismic performance due to high ductility
More consistent material properties, ensuring reliable performance in large-scale structures
Economical benefits, reducing material weight and project costs
As a result, A992 wide-flange beams are gradually replacing A572 GR50 in many structural applications.
Product Description
| Feature | Specification |
|---|---|
| Item | A992 W-Beam / H-Beam |
| Technology | Hot-rolled |
| Surface Treatment | Black, galvanized, or primed |
| Dimensions | HEA, HEB, HEM profiles |
| Customization | Non-standard H-beam sizes available on request |
A992 H-Beam Chemical Composition
| Steel Grade | Carbon, max (%) | Manganese (%) | Silicon, max (%) | Vanadium, max (%) | Columbium, max (%) | Phosphorus, max (%) | Sulfur, max (%) |
|---|---|---|---|---|---|---|---|
| A992 | 0.23 | 0.50–1.60 | 0.40 | 0.15 | 0.05 | 0.035 | 0.045 |
Mechanical Properties
| Steel Grade | Tensile Strength (ksi) | Yield Strength (ksi) |
|---|---|---|
| A992 | 65 | 65 |
A992 Wide-Flange H-Beam Dimensions
HEA Profiles (DIN 1025-3)
| Item | Weight (kg/m) | Height (mm) | Flange Width (mm) | Web Thickness (mm) | Flange Thickness (mm) |
|---|---|---|---|---|---|
| HEA100 | 17.1 | 96 | 100 | 5 | 8 |
| HEA120 | 20.3 | 114 | 120 | 5 | 8 |
| HEA140 | 25.2 | 133 | 140 | 5.5 | 8.5 |
| HEA160 | 31 | 152 | 160 | 6 | 9 |
| HEA180 | 36.2 | 171 | 180 | 6 | 9.5 |
| HEA200 | 43.2 | 190 | 200 | 6.5 | 10 |
| … | … | … | … | … | … |
| HEA600 | 181.4 | 590 | 600 | 13 | 25 |
HEB Profiles (DIN 1025-2)
| Item | Weight (kg/m) | Height (mm) | Flange Width (mm) | Web Thickness (mm) | Flange Thickness (mm) |
|---|---|---|---|---|---|
| HEB100 | 20.8 | 100 | 100 | 6 | 10 |
| HEB120 | 27.3 | 120 | 120 | 6.5 | 11 |
| HEB140 | 34.4 | 140 | 140 | 7 | 12 |
| … | … | … | … | … | … |
| HEB600 | 216.1 | 600 | 300 | 15.5 | 29 |
HEM Profiles (DIN 1025-4)
| Item | Weight (kg/m) | Height (mm) | Flange Width (mm) | Web Thickness (mm) | Flange Thickness (mm) |
|---|---|---|---|---|---|
| HEM100 | 42.6 | 120 | 106 | 12 | 20 |
| HEM120 | 53.1 | 140 | 126 | 12.5 | 21 |
| HEM140 | 64.5 | 160 | 146 | 13 | 22 |
| … | … | … | … | … | … |
| HEM600 | 290.5 | 620 | 305 | 21 | 40 |
Note: Custom lengths and non-standard dimensions are available for specialized projects.
Applications of A992 H-Beams
Workshops, warehouses, and elevated work platforms
Steel buildings and construction projects
Bridges, machinery supports, and large industrial equipment
A992 H-beams are ideal for high-load, long-span, and seismic-resistant structures, offering both strength and economy for modern engineering and construction.
Q1: What is ASTM A992 H-Beam and how does it differ from A36 H-Beam?
ASTM A992 H-Beam is a high-strength, low-alloy structural steel beam commonly used in building frames and bridges. Compared to A36 H-Beam, which has a yield strength of 250 MPa, A992 offers a higher yield strength of 345 MPa, improved toughness, and better weldability for modern structural applications.
Q2: What is the chemical composition of ASTM A992 H-Beam?
The typical chemical composition of A992 includes carbon ≤ 0.23%, manganese 0.50–1.50%, phosphorus ≤ 0.035%, sulfur ≤ 0.045%, and silicon ≤ 0.40%. A992 also includes microalloying elements such as vanadium and niobium to improve strength and toughness. Compared to A36, the lower carbon content and microalloying enhance weldability and reduce brittleness.
Q3: What are the mechanical properties of ASTM A992 H-Beam?
A992 H-Beams have a minimum yield strength of 345 MPa (50 ksi) and tensile strength between 450–620 MPa. The minimum elongation in 200 mm is 18%, and Charpy impact toughness is improved for low-temperature applications. In comparison, A36 beams are less strong but slightly more ductile, making them suitable for non-critical structural members.
Q4: What sizes and dimensional tolerances are available for ASTM A992 H-Beam?
A992 H-Beams are available in sizes from W8x10 to W44x335 (or similar, depending on the mill). Standard tolerances include ±3% for flange and web thickness and ±6 mm for beam depth. The tolerances are comparable to A36 but ensure consistency for high-strength applications where precise load distribution is critical.
Q5: Can ASTM A992 H-Beam be welded and fabricated easily?
Yes. A992 H-Beams are designed for high weldability with standard methods (SMAW, GMAW, FCAW) without preheating under normal conditions. Microalloying and low carbon content reduce the risk of cracking during welding. Bending and drilling are also feasible, though tight radius bends should follow ASTM guidelines.
Q6: What testing is performed on ASTM A992 H-Beams?
Standard tests include tensile testing, bend tests, chemical composition verification, and visual inspection. Mill Test Reports (MTRs) provide documentation. Charpy impact tests may be required for cold regions. Compared to A36, A992 requires stricter verification of mechanical properties due to higher strength requirements.
Q7: What are typical applications for ASTM A992 H-Beams?
A992 H-Beams are widely used in steel-framed buildings, long-span bridges, industrial facilities, and high-rise structures. A36 beams may still be used in secondary framing or low-load applications, but A992 is preferred where higher strength-to-weight ratio and toughness are critical.
Q8: How is corrosion protection handled for ASTM A992 H-Beams?
A992 beams are supplied in mill finish, with optional galvanization or painting for corrosive environments. Surface quality and straightness are important for welding and bolting. Corrosion protection methods are similar to A36, but A992 beams often require additional attention due to their use in exposed or high-rise structures.
Q9: What is the standard length and delivery method for ASTM A992 H-Beams?
Standard lengths are typically 6–12 meters, with custom lengths available. Beams are bundled for transport and inspected for straightness. Dimensional accuracy is important to ensure proper assembly and load-bearing performance.
Q10: Can ASTM A992 H-Beams be used in extreme temperatures?
A992 H-Beams are suitable for normal and moderately low temperatures. Impact toughness makes them safer for colder climates compared to A36. For very low or high-temperature environments, engineers may need additional verification or consider other specialized steel grades.
