DIN S 355 N DIN EN 10025-3
DIN S 355 N DIN EN 10025-3 steel Product Introduction
These steels are used for welded parts that have to withstand high levels of strain. Typical applications are bridges, pylons and other architectural structures
DIN S 355 N DIN EN 10025-3 Steel Product Details
| Grade : | S355N | ||
| Number: | 1.0545 | ||
| Classification: | Non-alloy quality structural steel | ||
| Standard: |
|
||
| Equivalent grades: | Go here |
Chemical composition % of steel S355N (1.0545): EN 10025-3-2004
| Nominal thickness =< 63(mm) CEV max = 0.43 For long products the P and S content can be 0.005% higher For railway application a maximum S content of 0.01% may be agreed at the time of enquiry and order In sufficient other N-binding elements are present the minimum total Al content does not applay Cu content above 0.4% may cause hot shortness during hot forming |
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | CEV |
| max 0.2 | max 0.5 | 0.9 - 1.65 | max 0.5 | max 0.03 | max 0.025 | max 0.3 | max 0.1 | max 0.12 | max 0.015 | max 0.05 | max 0.05 | max 0.02 | max 0.55 | max 0.45 |
Mechanical properties of steel S355N (1.0545)
| Nominal thickness (mm): | to 100 | 100 - 200 | 200 - 250 |
| Rm - Tensile strength (MPa) Flat and long products | 470-630 | 450-600 | 450-600 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
| ReH - Minimum yield strength (MPa) | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 |
| KV - Impact energy (J) longitud., (+N) | +20° 55 |
0° 47 |
-10° 43 |
-20° 40 |
| KV - Impact energy (J) transverse, (+N) | +20° 31 |
0° 27 |
-10° 24 |
-20° 20 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 200 | 200 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) | 22 | 22 | 22 | 21 | 21 | 21 |
Equivalent grades of steel S355N (1.0545)
Warning! Only for reference
| EU EN |
USA - |
Germany DIN,WNr |
France AFNOR |
England BS |
European old EN |
Italy UNI |
Spain UNE |
China GB |
Sweden SS |
Russia GOST |
|||||||||||
| S355N |
|
|
|
|
|
|
|
|
|
|

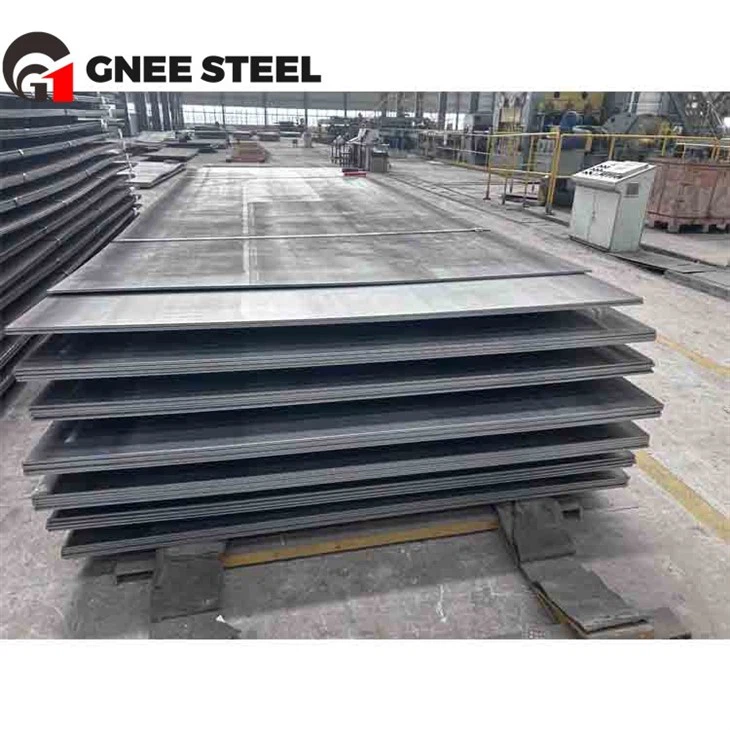

Plate Product Image
GNEE Group Team Photo
GNEE Steel was established in 2008. The company has sufficient inventory, the most complete varieties, the most stable supply, and the most timely supply. With our high-quality products and good services, we have customers all over the world. We have a series of automation Equipment, ready to meet your needs, ensuring customer satisfaction.
GNEE Group Exhibition Pictures
GNEE Group customers visit
If you have more needs and questions about DIN S 355 N DIN EN 10025-3 steel, please contact us!
