8620 Hot Rolled Round Bar
AISI 8620 round bar is a low-alloy nickel, chromium, molybdenum case-hardened steel, usually supplied in as-rolled condition, with a maximum hardness of HB 255max. SAE 8620 steel has high external strength and good internal strength, making it highly wear-resistant. AISI 8620 steel has higher core strength than 8615 and 8617 grades.
SAE 8620 alloy steel provides flexibility during the hardening process, allowing for improved shell/core performance. Prehardened and tempered (not carburized) 8620 can be further case hardened by nitriding, but due to its low carbon content does not respond satisfactorily to flame or induction hardening.
8620 steel is suitable for applications requiring a combination of toughness and wear resistance. This grade is usually supplied in round bar form.
8620 steel round bar equivalents chemical composition
| Standard | Grade | C | Mn | P | S | Si | Ni | Cr | Mo |
| ASTM A29 | 8620 | 0.18-0.23 | 0.7-0.9 | 0.035 | 0.040 | 0.15-0.35 | 0.4-0.7 | 0.4-0.6 | 0.15-0.25 |
| DIN 1654 | 1.6523/ 21NiCrMo2 |
0.17-0.23 | 0.65-0.95 | 0.035 | 0.035 | ≦0.40 | 0.4-0.7 | 0.4-0.7 | 0.15-0.25 |
| EN 10084 | 1.6523/ 20NiCrMo2-2 |
0.17-0.23 | 0.65-0.95 | 0.025 | 0.035 | ≦0.40 | 0.4-0.7 | 0.35-0.70 | 0.15-0.25 |
| JIS G4103 | SNCM220 | 0.17-0.23 | 0.6-0.9 | 0.030 | 0.030 | 0.15-0.35 | 0.4-0.7 | 0.4-0.65 | 0.15-0.3 |
| BS 970 | 805M20 | 0.17-0.23 | 0.6-0.95 | 0.040 | 0.050 | 0.1-0.4 | 0.35-0.75 | 0.35-0.65 | 0.15-0.25 |
8620 round stock steel mechanical property
| Properties | Metric | Imperial |
| Tensile strength | 530 MPa | 76900 psi |
| Yield strength | 385 MPa | 55800 psi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Bulk modulus (typical for steel) | 140 GPa | 20300 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
| Izod Impact | 115 J | 84.8 ft.lb |
| Hardness, Brinell | 149 | 149 |
| Hardness, Knoop (converted from Brinell hardness) | 169 | 169 |
| Hardness, Rockwell B (converted from Brinell hardness) | 80 | 80 |
| Hardness, Vickers (converted from Brinell hardness) | 155 | 155 |
| Machinability (hot rolled and cold drawn, based on 100 machinability for AISI 1212 steel) | 65 | 65 |

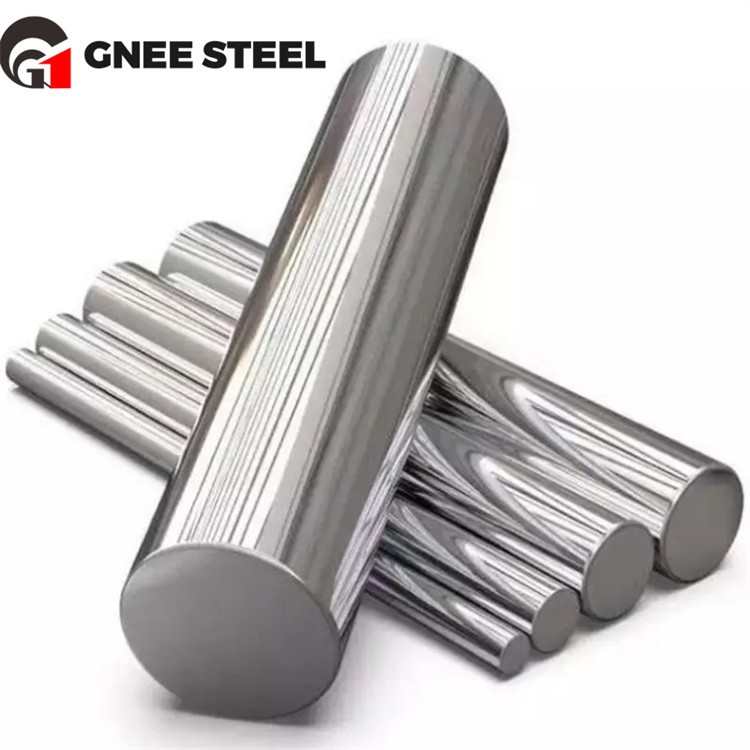

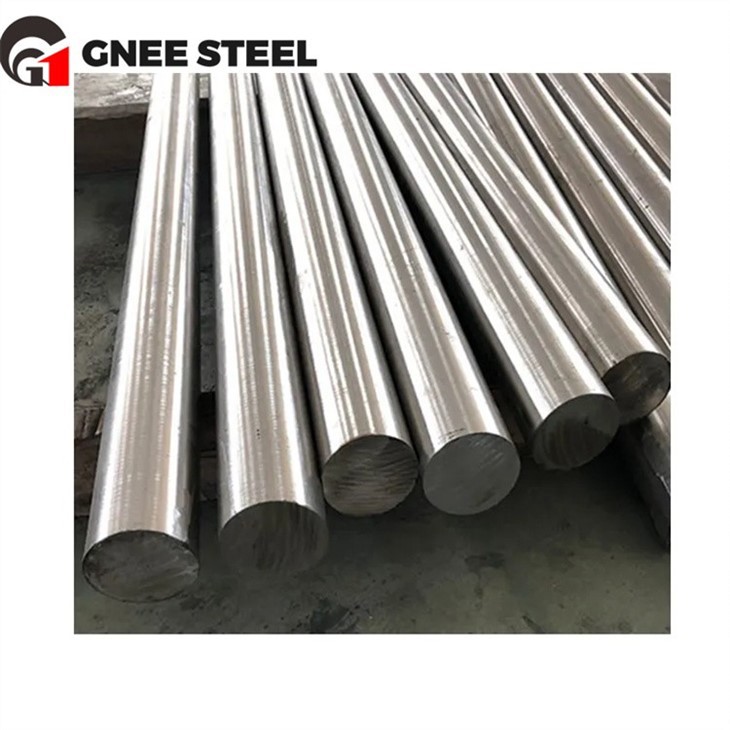

8620 round bar stock Products image
AISI 8620 is suited for applications which require a combination of toughness and wear resistance. it is commonly used in the engineering and automitive industries for toolholders and other such components.
GNEE group team photo
GNEE group customer visit
We guarantee the quality and quantity of 8620 Hot Rolled Round Bar. If you would like more information, please contact us!
