16MnCr5 Alloy Steel Bright Bar
16MnCr5 round steel is a national standard structural steel, similar to the national standard 16CrMnH steel in the national standard GB/T 5216-2004. It has better hardenability and processability. Mechanical parts produced with 16MnCr5 can have larger cross-sections, and higher surface hardness and surface hardness can be obtained after heat treatment. Wear resistance and low temperature impact toughness are also very high. 16MnCr5 gear steel is used after carburizing and quenching. Mainly used to manufacture gears, worms, sealing sleeves and other parts. 16MnCr5 belongs to China's GB standard: Standard: GB/T 3077-1988.
16MnCr5 round bar stock chemical composition
| C | Si | Mn | P | S | Cr |
| 0.14 - 0.19 | max 0.4 | 1 - 1.3 | max 0.025 | max 0.035 | 0.8 - 1.1 |
16MnCr5 round metal bar mechanical property
| Nominal thickness (mm): | to 16 |
| Rm - Tensile strength (MPa) hardening and tempering at 200 | 1000 |
| Rm - Tensile strength (MPa) (+A) | 550 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 420 |
| A - Min. elongation Lo = 80 mm (%) (+A) | 21 |
| Z - Reduction in cross section on fracture (%) | 62-64 |
| Brinell hardness (HBW): (+A) | 207 |
| Brinell hardness (HBW): (+TH) | 156 - 207 |
| Brinell hardness (HBW): (+FP) | 140 - 187 |
| Brinell hardness (HBW): (+N) | 138 - 187 |
| Rockwell B hardness ( HRB or RB): (+A) | 84 |
| Vickers hardness ( HV): (+A) | 170 |
16MnCr5 round stock metal appication
16MnCr5 steel rods are widely used in various applications for rotating machinery gears. Typical applications include valve bodies, pumps and fittings, high load wheels, bolts, studs, gears, internal combustion engines. Steel balls, rollers and bushings on electric locomotives, machine tools, tractors, steel rolling equipment, boring machines, railway vehicles, mining machinery transmission shafts, etc.

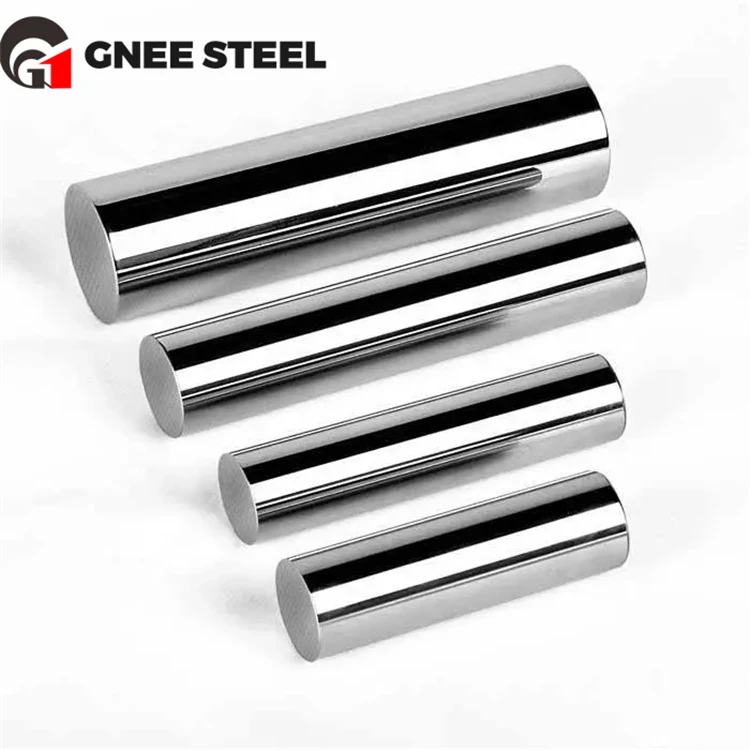

16MnCr5 solid round bar Products image
GNEE group team photo
GNEE group customer visit
We have enough 16MnCr5 Alloy Steel Bright Bar in stock, and we can also customize it according to your needs.
