ASME SA516Gr60 Boiler Plate
SA516Gr60 Boiler grade plate Product Introduction
SA516Gr60 pressure vessel quality steel offered by GNEE is american standard pressure vessel plate, and SA516Gr60 boiler steel offered by us carries out ASME standards. The SA516Gr60 pressure vessel plate material offered by us has certain wear resistance and fatigue resistance, which can be used for manufacturing boilers and pressure vessels.
In addition, the SA516Gr60 vessel steel plate we offer is produced in strict accordance with the standard and has passed the quality certification, we can provide the quality certificate, and we can accept the third party testing if you have special requirements.
| Product | Pressure Vessel Steel Plate |
| Specification | Thickness:1.2-11.75mm;customizable |
| Width: 20-2500mm;customizable | |
| Standard | AISI/ ASTM /GB/ EN / DIN /JIS |
| Material | A537/A612/A387/A203/A516/A517/A515/16Mo3/15Mo3 |
| Package | Packed with woven bag and steel sheet, fixed on non-fumigation pallet. Could also packed as clients' request. |
| Price term | CFR/ FOB |
| Payment terms | T/T, L/C |
| Deliver time | Within 7-30 days after deposit,base on quantity. |
| Others | We can do special orders as customer's requests. |
| We also can provide all kinds of steel coil. | |
| All the production process are made under the ISO strictly |
SA516Gr60 Boiler Quality Steel Plate Product Details
ASME SA516Gr60 Pressure Vessel (PVQ) Steel Plate Chemical Composition:
| Grade | C | Mn | Si | P max | S max |
| SA516 Grade 60 | 0.21-0.27 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
ASME SA516Gr60 Pressure Vessel Quality (PVQ) Steel Mechanical Properties:
| Grade | Tensile Strength(MPa) | Yield Strength(MPa)min | % Elongation in 2 in.(50mm) min | Impacting Test Temperature(°C) |
| SA516 Grade 60 | 415-550 | 220 | 21% | -20,40,-60 |

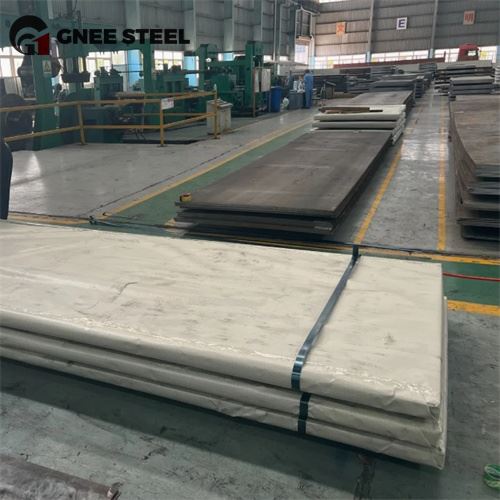

SA516Gr60 Hot rolled boiler steel plate Product Image
SA516Gr60 Hot rolled boiler steel plate Production process
GNEE Group Exhibition Pictures
GNEE Group customers visit
If you have more needs and questions about ASME SA516Gr60 Boiler Plate, we are happy to advise you!
