SA516 Grade 70 Pressure Vessel Plate
ASME Standard SA516Gr70 Pressure Vessel plate Product Introduction
The A516Gr70 vessel steel plate offered by GNEE belongs to American Standard boiler pressure vessel steel plate, and SA516Gr70 boiler steel is in accordance with ASME Specific Technical Condition. The SA516Gr70 boiler steel plate we supplied is strictly in accordance with the standard, we can provide the quality certificate, and we can accept the third party testing if you need.
In addition, the A516Gr70 pressure vessel plate material we offer has impact resistance and welding easy processing performance, commonly used in pressure vessel manufacturing, petrochemical equipment, petroleum machinery and other industry sectors.
| Product Name | High pressure steel plate |
| Length | 4m-12m or as required |
| Width | 0.6m-3m or as required |
| Thickness | 3mm-300mm or as required |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Technique | Hot rolled |
| Surface Treatment | Clean, blasting and painting according to customer requirement |
| Thickness tolerance | ±0.1mm |
| Material | Q245R,Q345R,Q370R 15CrMoR,15MnNiDR,15Mo3,15CrMoG 09MnNiDR,12MnNiVR,13MnNiMoR,Gr70,18MnMoNbR,19Mn6 12Cr2Mo1R,12Cr1MoVR,12CrMo1R,14Cr1MoR |
| Shipment time | Within 15-20 workdays after receiving deposit or L/C |
| Export packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
SA516Gr70 boiler steel plate Product Details
SA516 Grade 70 Pressure Vessel Steel Plate Chemical Composition:
| Grade | C | Mn | Si | P max | S max |
| SA516 Grade 70 | 0.27-0.31 | 0.79-1.3 | 0.13-0.45 | 0.035 | 0.035 |
SA516 Grade 70 Pressure Vessel Quality Steel Mechanical Properties:
| Grade | Tensile Strength(MPa) | Yield Strength(MPa) min | % Elongation in 2 in.(50mm) min | Impacting Test Temperature(°C) |
| SA516 Grade 70 | 485-620 | 260 | 17 | -20,40,-60 |

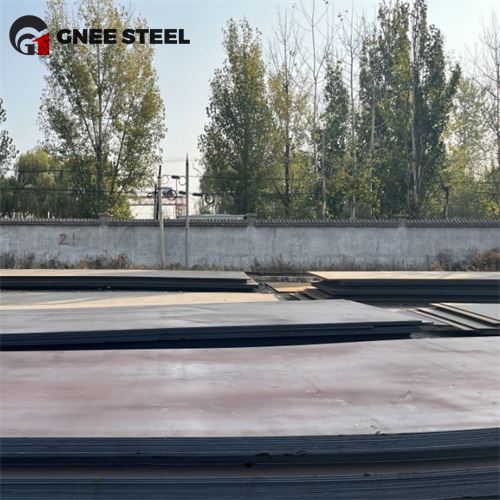

SA516Gr70 Pressure Vessel Grade Steel Plate Product Image
SA516Gr70 boiler quality plate Product packaging
GNEE Group Exhibition Pictures
GNEE Group customers visit
If you have more needs and questions about SA516 Grade 70 pressure vessel plate, we are happy to advise you!
