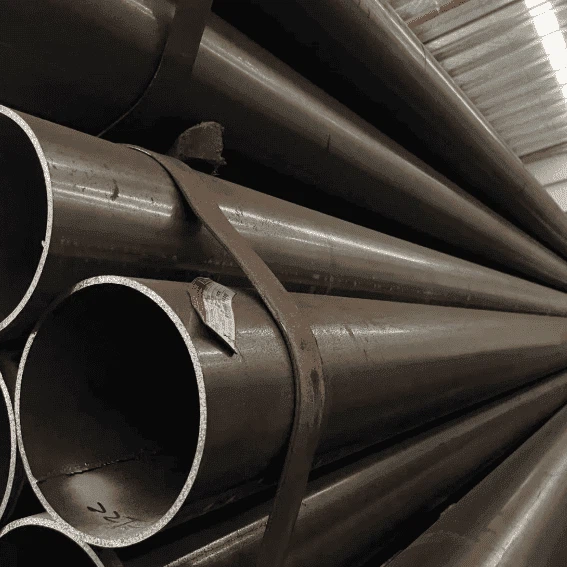

Overview of ASTM A252 Pipes
ASTM A252 covers the standards for pile pipes, which can be seamless or welded, designed for construction and structural applications. These pipes are typically cylindrical and serve as load-bearing members or as shells for cast-in-place concrete piles.
Grades Available: Grade 1, Grade 2, Grade 3 (Grade 3 is the most widely used for high-load applications).
Key Characteristics:
Designed for pile foundations, bridges, and high-rise buildings.
Can be produced using hot rolling, cold drawing, open-hearth, basic oxygen, or electric furnace processes.
Available in seamless, electric resistance welded, flash/fusion welded, longitudinal submerged arc welded (LSAW), helical submerged arc welded (HSAW), or SSAW forms.
Mechanical Properties (ASTM A252 Grade 3)
| Property | Value |
|---|---|
| Yield Strength | 45,000 psi (310 MPa) |
| Tensile Strength | 66,000 psi (455 MPa) |
| Minimum Elongation (2") | 20% (for 5/16" wall thickness; varies with thickness) |
| Maximum Phosphorus Content | 0.05% |
Elongation vs Wall Thickness (Grade 3)
| Wall Thickness (in) | Min. Elongation (%) |
|---|---|
| 5/16 (0.312) | 20 |
| 9/32 (0.281) | 19 |
| 1/4 (0.250) | 18 |
| 7/32 (0.219) | 17 |
| 3/16 (0.188) | 16 |
| 11/64 (0.172) | 16 |
| 5/32 (0.156) | 15 |
| 9/64 (0.141) | 14 |
| 1/8 (0.125) | 14 |
| 7/64 (0.109) | 13.5 |
Dimensions and Length Requirements
Outer Diameter (OD): Cylindrical, with ±1% variation allowed.
Wall Thickness: Minimum 90% of nominal; maximum 110%.
Length:
Single Random Length (SRL): 16–15 ft
Double Random Length (DRL): Avg. 35 ft, min. 25 ft
Pipe Ends: Plain, machine-cut, or flame-cut; beveled ends permissible at 30° ± 5° with burrs removed.
Manufacturing Processes
Hot rolling, cold drawing, open-hearth, basic oxygen, or electric furnace.
Seam types:
Longitudinal
Helical-butt
Helical-cap
Welded piles can be ERW, flash/fusion welded, LSAW, HSAW, or SSAW depending on application.
Note: Hydrostatic testing is not mandatory since these pipes are primarily used as structural supports, not for fluid transport. However, tensile and heat analysis tests are required.
Applications of ASTM A252 Pipes
Pile Foundations: Buildings, bridges, and heavy structures.
Marine & Offshore Structures: Docks, piers, offshore platforms.
Structural Construction: Load-bearing supports for industrial and civil projects.
High-Load Civil Engineering Projects: Suitable for piling in urban development and infrastructure.
Advantages:
High strength and durability for demanding load-bearing applications.
Weldable for custom lengths or repairs.
Seam flexibility and multiple production processes ensure adaptability.
Corrosion resistance possible with coatings or galvanization for marine/underground use.
Comparison with ASTM A500 Pipes
| Feature | ASTM A500 | ASTM A252 |
|---|---|---|
| Purpose | General structural carbon steel pipes (round, rectangular, square; welded, bolted, or riveted) | Piling pipes for foundation support (seamless or welded) |
| Grades | A, B, C, D | 1, 2, 3 |
| Manufacturing | Open-hearth, electric furnace, or basic oxygen furnace; butt-welded longitudinally | Hot rolling, cold drawing, open-hearth, basic oxygen/electric furnaces; longitudinal, helical-butt, or helical-cap seams |
| Shape | Round, rectangular, square, or customized | Cylindrical only |
| Strength | Grade B or C suitable for structural use; tensile 400–425 MPa | Grade 3 preferred for piling; tensile 455 MPa, yield 310 MPa |
| Testing | Wall thickness, straightness, and dimensional checks | Tensile and heat analysis; hydrostatic test not required |
| Applications | Construction, bridges, buildings, light structural supports | Pile foundations, high-load structural supports, offshore/urban construction |
ASTM A252 pipes are optimized for foundation piling, offering higher tensile strength and flexibility in welding and seam types. ASTM A500 pipes are general structural pipes with strict dimensional tolerances suitable for diverse construction applications but not designed for pile driving or load-bearing piles.
