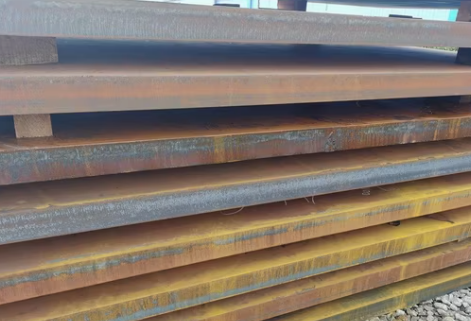

ASTM A515 Grade 70 is a carbon‑manganese steel plate designed for moderate‑temperature pressure vessel service. Produced to ASTM A515, it is suitable for fusion welding in boilers and pressure vessels. This grade offers good strength, toughness, and weldability, ensuring reliable performance at elevated temperatures. It is commonly used for pressure vessel components, storage tanks, and boiler parts where consistent operation under moderate pressure and temperature is required.
Mechnical property for A515 Grade 70 steel plate
| Yield strength (Mpa) | Tensile strength (Mpa) | Elongation in ≥,% | |
| 260 | 485-620 | 200mm | 50mm |
| 17 | 21 | ||
Chemical composition for A515 Grade 70 steel plate (Product Analysis Max%)
| Main chemical elements composition of A515 Grade 70 steel plate | |||||
| Thickness(mm) | C | Si | Mn | P | S |
| T≤25 | 0.24 | 0.13-0.45 | 0.98 | 0.025 | 0.025 |
| 25<T≤50 | 0.27 | ||||
| 50<T≤100 | 0.29 | ||||
| T>100 | 0.31 | ||||
applications
Boiler and Pressure Vessel Fabrication: ASTM A515 Grade 70 is widely used in the construction of boilers, pressure vessels, and heat exchangers. Its combination of moderate strength and good weldability makes it suitable for shells, heads, and other pressure‑containing components that operate at temperatures up to 650°F (345°C).
Oil and Gas Processing Equipment: The material is employed in oil refineries, gas processing plants, and petrochemical facilities for fabricating process vessels, separators, and storage tanks. It provides reliable performance under moderate pressure and temperature conditions encountered in these industries.
Power Generation Systems: In power plants, ASTM A515 Grade 70 is used for boiler drums, headers, and other structural components. Its ability to withstand cyclic thermal stresses and maintain integrity at elevated temperatures supports efficient and safe power generation.
General Industrial Fabrication: The steel plate is utilized in various industrial applications, including process piping supports, heavy machinery frames, and structural components that require a balance of strength and cost‑effectiveness. Its weldability allows for flexible manufacturing and assembly.
Water and Wastewater Treatment Facilities: It is used in the construction of tanks, clarifiers, and pressure vessels for water treatment plants. The material's durability and resistance to moderate corrosion in water environments make it a practical choice for such infrastructure.
advantages
Good Strength and Toughness:
ASTM A515 Grade 70 provides a balanced combination of strength and toughness, enabling it to withstand moderate pressure and temperature conditions commonly found in pressure vessel applications.
Excellent Weldability:
The steel is readily weldable using standard fusion welding processes, allowing for efficient fabrication of boilers, pressure vessels, and other welded structures without compromising joint integrity.
Reliable Performance at Elevated Temperatures:
It maintains its mechanical properties at moderately high temperatures, making it suitable for service in boilers and heat‑processing equipment.
Cost‑Effectiveness:
As a carbon‑manganese steel, it offers good performance at a relatively low cost, making it an economical choice for many pressure vessel and industrial applications.
Wide Availability and Well‑Established Standard:
Produced to a widely recognized ASTM specification, it is readily available and well understood by fabricators, engineers, and inspectors, ensuring consistent quality and ease of procurement.
Why Choose Us
You can get the perfect material according to your requirement at the least possible price.
We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
We guarantee to give a response within 24hours(usually in the same hour)
You can get stock alternatives, mill deliveries with minimizing manufacturing time.
We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
Contact us at beam@gneesteelgroup.com for pricing, technical support, or customized solutions. We are always ready to support your project.
What is the maximum temperature ASTM A515 Grade 70 can withstand continuously?
It can withstand continuous service temperatures up to 650°F (343°C). At temperatures above this, its tensile strength and creep resistance decrease, potentially leading to equipment failure over time.
What quality control measures are taken during the production of ASTM A515 Grade 70?
Quality control includes chemical composition analysis, mechanical property testing (tensile, bend, impact), visual inspection, and non-destructive testing (NDT) like ultrasonic testing to detect defects and ensure compliance with standards.
Is ASTM A515 Grade 70 used in the oil and gas industry?
Yes, it is widely used in the oil and gas industry. It is used to make storage tanks, pressure vessels, and pipelines for crude oil, natural gas, and refined products, thanks to its strength and weldability.
What is the modulus of elasticity for ASTM A515 Grade 70?
The modulus of elasticity is approximately 29,000 ksi (200 GPa) at room temperature. This value represents the material's stiffness, indicating how much it will deform under a given load within its elastic range.
Can ASTM A515 Grade 70 be used for boiler tubes?
It is typically used for boiler shells and pressure vessel plates rather than boiler tubes. Boiler tubes usually require materials with higher creep resistance and thermal conductivity, such as ASTM A106 Grade B.
What is the Poisson's ratio of ASTM A515 Grade 70?
The Poisson's ratio is approximately 0.3 at room temperature. This ratio describes the material's lateral strain (expansion/contraction) relative to its axial strain when subjected to tensile or compressive loads.
Is ASTM A515 Grade 70 available in coil form?
It is rarely available in coil form. It is primarily supplied as plates because its main applications (pressure vessels, boilers) require flat, thick material that is easier to handle and fabricate from plates.
What is the thermal conductivity of ASTM A515 Grade 70?
The thermal conductivity is approximately 26 Btu/(ft·hr·°F) (45 W/(m·K)) at room temperature. This property determines how well the material conducts heat, which is important for high-temperature service applications.
Can ASTM A515 Grade 70 be joined by brazing?
While brazing is technically possible, welding is the preferred joining method for ASTM A515 Grade 70. Brazing may not provide the same strength and integrity as welding, which is critical for pressure-containing equipment.
What are the common defects to avoid in ASTM A515 Grade 70 steel plates?
Common defects to avoid include cracks, inclusions, porosity, and laminations. These defects can reduce the material's strength, toughness, and weldability, compromising the safety and performance of the final equipment.
