When selecting high-strength structural steel, choosing between S690QL vs S960QL steel plate is not simply a material comparison - it is a strategic decision that directly affects structural safety, fabrication difficulty, total weight, and overall project cost.
Both grades belong to the EN 10025-6 quenched and tempered (Q&T) steel family and are widely used in cranes, trailers, mining equipment, and heavy-duty structures.
S960QL steel plate
As a professional high-strength steel plate manufacturer in China, GNEE supplies both S690QL steel plate and S960QL steel plate with stable quality, third-party inspection, and global delivery support. This guide will help you understand the real differences and choose the right grade for your application.
What Is the Core Difference Between S690QL and S960QL Steel Plate?
The most direct difference between S690QL vs S960QL steel plate lies in yield strength and fabrication behavior.
| Feature | S690QL Steel Plate | S960QL Steel Plate |
|---|---|---|
| Minimum Yield Strength | 690 MPa | 960 MPa |
| Standard | EN 10025-6 | EN 10025-6 |
| Tensile Strength | 770–940 MPa | 980–1150 MPa |
| Typical Applications | Frames, bridges, transport chassis | Crane booms, lifting arms, defense vehicles |
| Fabrication Difficulty | Easier | Higher (stronger & harder) |
| Weldability | Very good | Good (requires stricter control) |
Key Insight:
S960QL steel plate provides around 40% higher yield strength than S690QL, allowing thinner sections and lighter structures, but it requires more controlled welding and forming processes.
Why the Difference Between S690QL and S960QL Matters in Engineering Projects
Choosing the wrong grade can increase fabrication cost or reduce structural efficiency.
- A trailer designed with S960QL steel plate can be significantly thinner, lowering dead weight and improving fuel efficiency.
- A bridge or heavy frame using S690QL steel plate is often easier to fabricate and weld on-site.
- For cranes, lifting equipment, or military structures, S960QL offers higher safety margins under dynamic load.
In short, S690QL prioritizes manufacturability, while S960QL prioritizes performance and weight reduction.
Mechanical Properties: S690QL vs S960QL Steel Plate
Looking beyond brochure data, here is a realistic comparison used by engineers:
| Property | S690QL | S960QL |
|---|---|---|
| Yield Strength | ~690 MPa | ~960 MPa |
| Tensile Strength | 770–940 MPa | 980–1150 MPa |
| Elongation (min.) | ~14% | ~10% |
| Hardness (HBW) | ~250 | ~290 |
| Charpy Impact (-40°C) | ≥30 J | ≥30 J |
| Density | 7.85 g/cm³ | 7.85 g/cm³ |
How to Interpret These Numbers
S960QL steel plate delivers higher strength per millimeter, ideal for lightweight designs.
S690QL steel plate offers better ductility, making it safer for bending and forming operations.
Both grades meet strict low-temperature impact requirements.
Welding & Fabrication Differences Between S690QL and S960QL
| Fabrication Aspect | S690QL Steel Plate | S960QL Steel Plate |
|---|---|---|
| Weldability | Excellent | Good (strict control required) |
| Preheating | Low to moderate | Often required for thick plates |
| Cutting | Plasma / oxy-fuel friendly | Requires precise heat control |
| Bending & Forming | Easier | Limited due to higher strength |
| Machining | Easier on tools | Higher tool wear |
Practical Advice:
If your workshop has limited experience with ultra-high-strength steel, S690QL is the safer and more forgiving option.
If your goal is maximum strength-to-weight ratio, choose S960QL steel plate with proper welding procedures.
Cost & Availability: S690QL vs S960QL Steel Plateescription
| Parameter | S690QL | S960QL |
|---|---|---|
| Indicative Base Price | Lower | Higher |
| Availability | Widely stocked | Limited, thickness-dependent |
| Lead Time | Short | Moderate to long |
| Processing Cost | Lower | Higher (Q&T control) |
Which Should You Choose - S690QL or S960QL Steel Plate?
If your project prioritizes ease of fabrication, welding flexibility, and cost control, S690QL steel plate is the practical choice.
If your design demands maximum strength, reduced weight, and high safety margins, S960QL steel plate is the superior solution.
As a professional EN 10025-6 high-strength steel plate manufacturer, GNEE supplies both grades with mill test certificates, third-party inspection, and global shipping support.

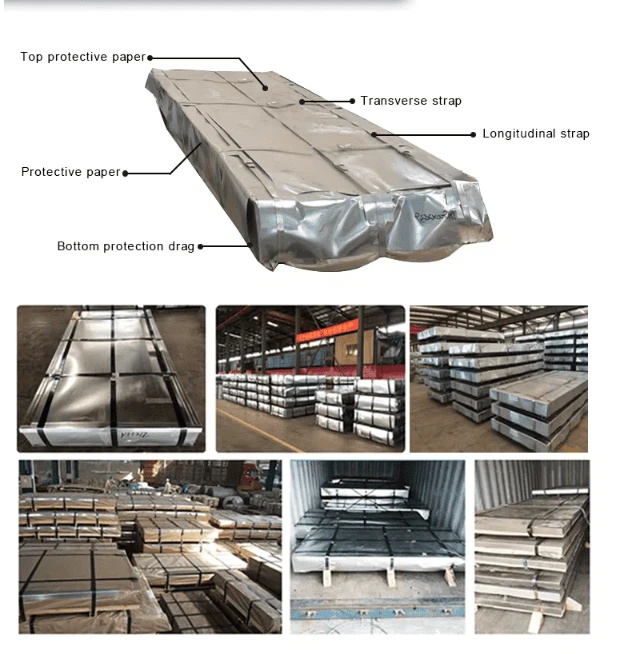

S960QL steel plate packing
What material is S960QL?
The S960QL Steel Plate is basically a structural steel that comes with a min yield strength of up to 960 MPa, the exact value depends on the thickness of the plate. The S960ql Steel plate is available with a thickness range of 4-100 mm.
What is EN S960QL steel equivalent
S960ql is a high-strength structural grade. The ASTM S960ql Equivalent is the ASTM Q345 exhibiting outstanding low temperature and cold stamping properties.
What are the properties of S960QL steel?
Thickness (mmin). 4.0 - 53.00.157 - 2.087 ; Yield strength R · (min MPaksi). 960139 ; Tensile strength R · (MPaksi). 980 - 1150142 - 166
What is the yield strength of s960 steel?
s960 is a structural steel with a minimum yield strength of 850-960 MPa depending on thickness.
