What Is HEB 240 240×240×10×17 H Beam?
HEB 240 240×240×10×17 H Beam is a European standard wide-flange structural section. The profile has a nominal height of 240 mm, a flange width of 240 mm, a web thickness of 10 mm, and a flange thickness of 17 mm. Its theoretical unit weight is approximately 83.2 kg/m.
The nearly square cross-section and relatively thick flanges give the HEB 240 wide flange beam good bending resistance, compression capacity, and structural stability. It can be used as either a beam or column in industrial buildings, warehouses, equipment platforms, bridges, and other load-bearing structures.
HEB 240 240×240×10×17 H Beam Dimensions
The section dimensions of the HEB 240 240×240×10×17 H Beam generally follow EN 10365. Dimensional and shape tolerances can be controlled according to EN 10034.
| Specification | HEB 240 Data |
|---|---|
| Section designation | HEB 240 / HE 240 B |
| Complete dimensions | 240×240×10×17 mm |
| Overall height, h | 240 mm |
| Flange width, b | 240 mm |
| Web thickness, tw | 10 mm |
| Flange thickness, tf | 17 mm |
| Root radius, r | Approx. 21 mm |
| Clear web depth, d | Approx. 164 mm |
| Cross-sectional area | Approx. 106 cm² |
| Theoretical weight | Approx. 83.2 kg/m |
| Surface area | Approx. 1.38 m²/m |
| Section standard | EN 10365 |
| Dimensional tolerance | EN 10034 |
| Common lengths | 6 m and 12 m |
| Customized lengths | Available according to order |
The wide, parallel flanges simplify the installation of end plates, base plates, stiffeners, and bolted connections. This makes the HEB 240 H Profile Steel suitable for fabricated structural components.
HEB 240 Steel Profile Section Properties
The geometric properties of the HEB 240 Steel Profile are important when comparing its bending stiffness and structural efficiency with other HEA, HEB, or IPE sections.
| Section Property | Approximate Value |
|---|---|
| Cross-sectional area | 106 cm² |
| Strong-axis moment of inertia, Ix | 11,260 cm⁴ |
| Strong-axis elastic section modulus, Wx | 938 cm³ |
| Strong-axis plastic section modulus, Wpl,x | 1,053 cm³ |
| Weak-axis moment of inertia, Iy | 3,923 cm⁴ |
| Weak-axis elastic section modulus, Wy | 327 cm³ |
| Weak-axis plastic section modulus, Wpl,y | 498 cm³ |
These figures describe the geometry of the section and can be used for preliminary comparison. They do not directly represent the allowable load of the beam. Final load capacity depends on the steel grade, span, restraint, buckling length, connection design, and applicable structural code.
How Much Does HEB 240 240×240×10×17 H Beam Weigh?
The theoretical weight of the 240×240×10×17 H Beam is approximately 83.2 kg per metre. The weight of each beam can be calculated using the following formula:
Weight per piece = 83.2 kg/m × beam length
| Length | Theoretical Weight per Piece |
|---|---|
| 6 m | Approx. 499.2 kg |
| 9 m | Approx. 748.8 kg |
| 12 m | Approx. 998.4 kg |
| 15 m | Approx. 1,248 kg |
| 18 m | Approx. 1,497.6 kg |
For example, 20 pieces of 12 m HEB 240 beams have a theoretical total weight of approximately 19.97 tonnes. Actual delivery weight may vary slightly because of permissible rolling tolerances.
Available Steel Grades for HEB 240 H Beam
The HEB 240 240×240×10×17 H Beam can be produced in different structural steel grades according to project strength, toughness, welding, and service-temperature requirements.
| Standard | Available Grade | Main Feature |
|---|---|---|
| EN 10025-2 | S235JR | General structural applications |
| EN 10025-2 | S275JR / S275J0 | Medium-strength structures |
| EN 10025-2 | S355JR | Higher-strength general structures |
| EN 10025-2 | S355J0 | 27 J impact toughness at 0°C |
| EN 10025-2 | S355J2 | 27 J impact toughness at −20°C |
Because the HEB 240 flange thickness is 17 mm, thickness-dependent mechanical properties should be checked when selecting a grade. For example, S355-grade steel generally has a minimum yield strength of 345 MPa for thicknesses above 16 mm and up to 40 mm.
The exact chemical composition and mechanical properties must be confirmed using the corresponding steel grade standard and EN 10204 3.1 mill test certificate.
HEB 240 H Beam Processing Services
The HEB 240 240×240×10×17 H Beam can be supplied in original mill lengths or processed according to structural drawings. Processing it before delivery helps reduce work at the construction site and improves component consistency.
Available processing services include:
- CNC fixed-length sawing
- Flange and web drilling
- Flame or plasma cutting
- Notching and coping
- End beveling
- Stiffener welding
- Base-plate and end-plate assembly
- Shot blasting
- Primer and finish painting
- Hot-dip galvanizing
- Component numbering
For welded fabrication, the welding procedure should match the selected steel grade, material thickness, joint restraint, welding consumables, and project standard.
Inspection of HEB 240 240×240×10×17 H Beam
Before delivery, the HEB 240 wide flange beam can be inspected to verify both material quality and section accuracy. Inspection items may include:
Overall height and flange width
- Web and flange thickness
- Beam length and straightness
- Flange squareness
- Surface condition
- Heat number and material marking
- Chemical composition
- Tensile and impact properties
- Processed-hole dimensions
- Coating or galvanized-layer thickness

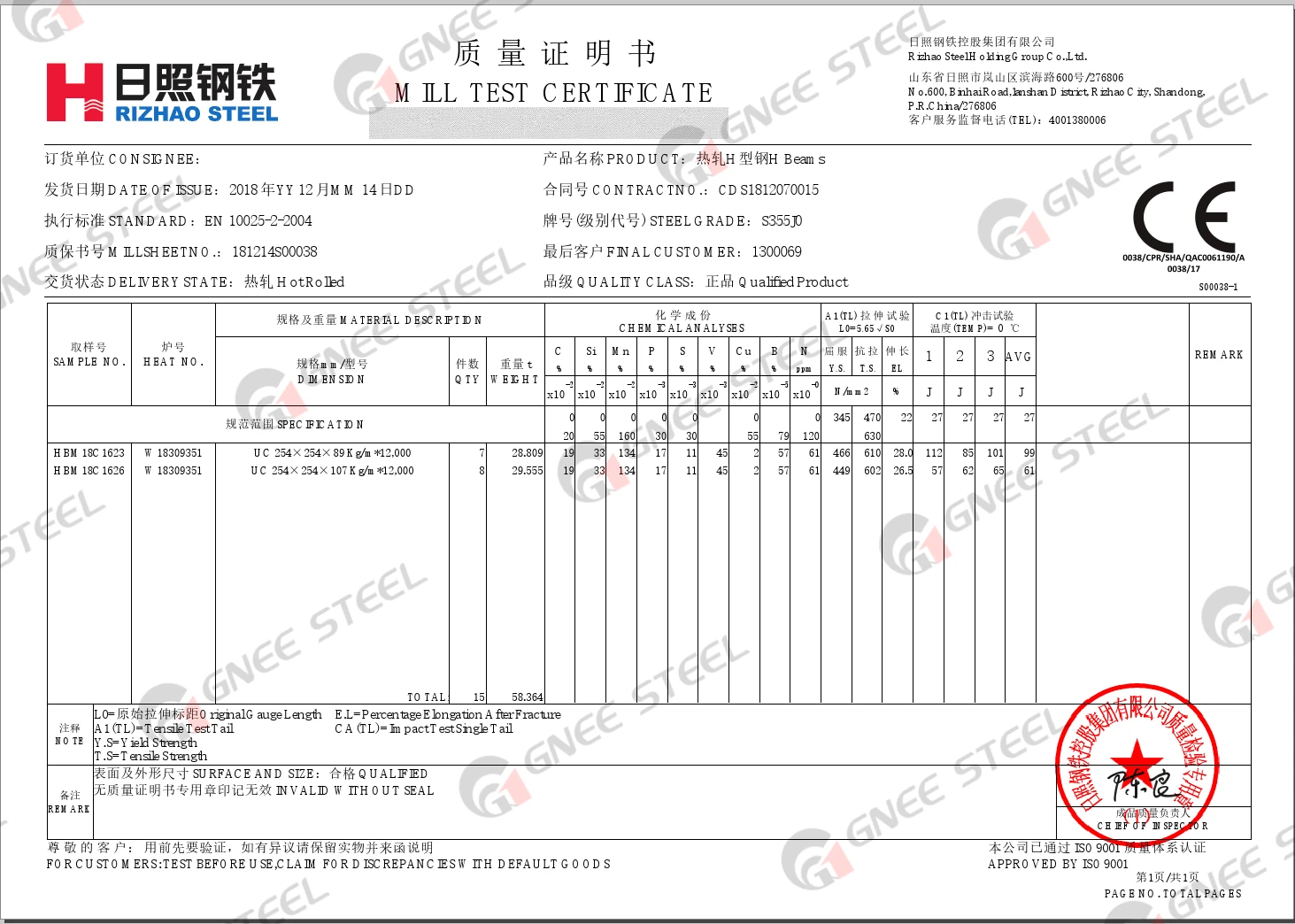

EN 10204 3.1 mill test certificates can be supplied with the material. Third-party inspection by SGS, BV, TÜV, or another nominated organization can also be arranged when required by the project.
Applications of HEB 240 H Profile Steel
The balanced height and flange width of the HEB 240 H Profile Steel make it suitable for both horizontal and vertical structural members. Common applications include:
- Industrial building columns and beams
- Warehouse and workshop frames
- Equipment-support structures
- Steel platforms and pipe racks
- Commercial building structures
- Bridge supporting members
- Crane-support systems
- Mezzanine structures
- Modular welded frames
- Infrastructure projects
The final profile and steel grade must be selected according to structural calculations. Section size alone cannot determine the safe load-bearing capacity.
We supply HEB 240 240×240×10×17 H Beams in different steel grades and lengths. Cutting, drilling, welding, blasting, painting, galvanizing, and third-party inspection can be arranged according to your project drawings.
Please provide the following details for an accurate quotation:
- Required steel grade
- Beam length and quantity
- Total project tonnage
- Surface-treatment requirements
- Processing drawings
- Certificate and inspection requirements
- Destination port
- Required FOB, CFR, CIF, or DDP terms
Request a Quote for HEB 240 240×240×10×17 H Beam
Send us your material list to receive specification confirmation, theoretical weight calculation, processing suggestions, loading details, delivery time, and a project-based quotation.
