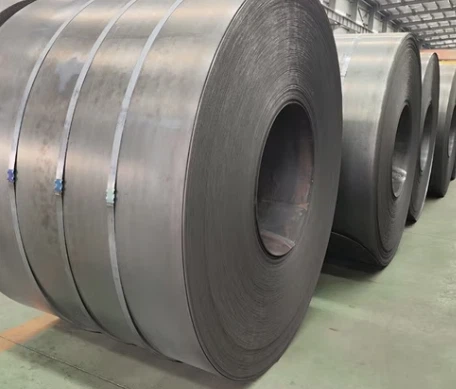

Q690D and Q690E are both star products in the Q690 series of high-strength low-alloy structural steels. They share the same core advantage of a minimum yield strength of 690 MPa, but the gap in low-temperature toughness standards divides their application boundaries. The following will analyze their differences from practical engineering perspectives such as actual application cases, process operation difficulties, and cost - benefit ratios, to provide a more intuitive reference for material selection.
Low-Temperature Toughness: From Moderate Cold Adaptation to Extreme Cold Resistance
The fundamental difference between the two lies in the Charpy V-notch impact test standards, which directly determines their ability to adapt to low-temperature environments. For Q690D, it must pass the impact test at -20℃, with the average impact energy of three samples not less than 34 J and no single sample less than 24 J. This performance enables it to cope with the cold climate in most temperate and cold regions, and there is no need to worry about brittle fracture when facing conventional low-temperature stress. In contrast, Q690E has stricter requirements. It needs to complete the impact test at -40℃, and some high-quality products can still maintain stable toughness even at -60℃. This makes Q690E stand out in ultra-low-temperature scenarios where the temperature drops sharply. For example, in the alpine section of the China - Russia Eastern Route Natural Gas Pipeline, Q690E is used to ensure the pipeline's operation safety in the long-term low-temperature environment; while Q690D is more often used in the southern section of the pipeline where the temperature is relatively higher.
Process Implementation: Different Difficulties and Quality Control Focus
In actual production and processing, the two steels have obvious differences in process difficulty and quality control points. In terms of smelting, Q690D only needs conventional converter smelting with LF refining. It controls phosphorus content ≤ 0.030% and sulfur content ≤ 0.025%, and adds niobium, vanadium and other microalloy elements to refine grains. The process is mature and the product qualification rate is high. For Q690E, in addition to basic smelting, it must add VD vacuum degassing process to further remove harmful gases and impurities. It also strictly limits phosphorus content ≤ 0.025% and sulfur content ≤ 0.020% to avoid material embrittlement at ultra-low temperatures.In welding operation, which is common in engineering, Q690D has a carbon equivalent of no more than 0.55%. For plates with thickness less than 12mm, it can be welded directly without preheating. Even for thick plates, the preheating temperature only needs to be controlled at 100 - 150℃. Q690E has a lower carbon equivalent (≤ 0.45%), but due to its high requirements for structural stability, the preheating temperature for welding is generally 120 - 180℃. After welding, hydrogen removal heat treatment must be carried out to eliminate residual stress, which increases the complexity of the construction process and the requirements for workers' operation skills.
Application Cases: Differentiated Matching with Engineering Needs
The two steels are clearly divided in practical applications, which is closely related to their performance characteristics and project cost budgets. Q690D is widely used in conventional heavy-duty projects. For example, in the production of port cranes and coal mine hydraulic supports, it can reduce the weight of equipment while ensuring load-bearing capacity, and balance performance and cost. In the construction of ordinary highway bridges in northern China, Q690D is used for truss components, which can meet the anti-seismic and low-temperature requirements of the bridge without excessive cost input.Q690E is more inclined to high-end and special projects. In the pressure steel pipe of Baihetan Hydropower Station, the use of Q690E reduces the pipe wall thickness from the original 60mm to 42mm, saving 12,000 tons of steel on the premise of ensuring pressure resistance. In addition, in deep-sea drilling platforms and polar LNG storage tank supports, Q690E can withstand the dual challenges of ultra-low temperature and extreme pressure. In the production of 1200-ton all-terrain cranes, its arm frame adopts Q690E, which makes the maximum lifting capacity of the crane increased by 50% compared with the original Q690D arm frame.
Cost - Benefit Ratio: Balancing Performance and Budget
Cost is an important factor affecting the choice of engineering materials. The production process of Q690D is simple, the requirements for raw materials and process parameters are not harsh, so its market price is relatively stable. Compared with Q690E, it can save about 10 - 20% of the material cost. For general engineering projects with sufficient budget constraints and no ultra-low-temperature use requirements, choosing Q690D can reduce the overall project cost while meeting the structural strength.The production of Q690E involves multiple refining processes and strict quality inspection procedures. 100% ultrasonic testing and surface magnetic particle testing are required for delivery, which increases the production cycle and cost. However, for key projects where safety is the top priority, the higher cost of Q690E is cost-effective. Once a brittle fracture accident occurs in ultra-low-temperature equipment such as polar pipelines and alpine bridges, the economic loss and safety risks are immeasurable. At this time, Q690E's reliable ultra-low-temperature performance can avoid such risks.
Can Q690D be substituted for Q690E in emergency engineering projects?
Substitution is not recommended, even in emergencies. In environments below -20℃, Q690D's impact toughness will decline sharply, which may lead to structural brittle fracture and cause serious safety accidents. For example, in the alpine section of the China - Russia Eastern Route Natural Gas Pipeline (minimum temperature -45℃), Q690E is the only choice to ensure long - term safe operation. If Q690D is used instead, the pipeline may crack under low-temperature stress, resulting in gas leakage and huge economic losses.
How do the thickness variations affect the mechanical properties of Q690D and Q690E?
Both grades show a gradual decrease in mechanical properties with increasing thickness, but the decline trend is consistent. For plates ≤50mm, both Q690D and Q690E have a minimum yield strength of 690 MPa and a tensile strength of 770–940 MPa. When thickness is 50＜t≤100mm, their minimum yield strength drops to 650 MPa, and tensile strength drops to 760–930 MPa. To compensate for this performance decline, manufacturers usually adopt the quenching and tempering process for thick plates of both grades to homogenize the microstructure and maintain stable toughness.
What are the typical application scenarios for Q690D and Q690E respectively?
Q690D is widely used in moderately cold regions for projects such as port crane booms, coal mine hydraulic supports, large-span bridge truss components, and heavy truck frames. Q690E is tailored for extreme cold environments, with typical applications including alpine section pipelines of natural gas projects, polar LNG storage tank supports, deep-sea drilling platform jackets, and low-temperature pressure vessels in ultra-supercritical power plants.
