ASTM A203 Low Alloy Steel, Grade B

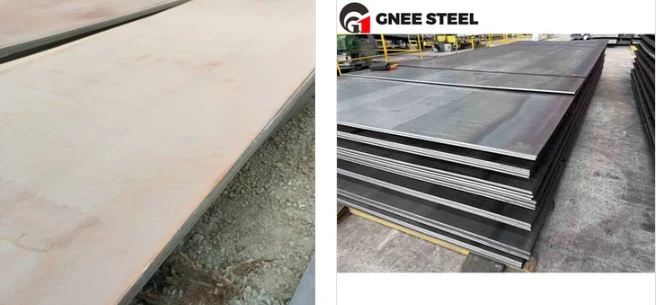

SA203 Grade B is a nickel-alloy steel plate standardized under the ASME Boiler and Pressure Vessel Code (Section II, Part A). It is specifically designed for low-temperature and cryogenic service in welded pressure vessels and other critical structures where good notch toughness at sub-zero temperatures is required.
Key Characteristics:
Chemistry: Its defining feature is a nominal nickel content of 2.25%. This nickel addition significantly improves toughness at low temperatures by lowering the ductile-to-brittle transition temperature.
Heat Treatment: It is supplied in the normalized or normalized and tempered condition.
Mechanical Properties (Typical for plates ≤ 2.5 in / 63.5 mm):
Tensile Strength: 65‑85 ksi (450‑585 MPa)
Yield Strength (Min): 37.5 ksi (260 MPa)
Low-Temperature Toughness: It is known for reliable notch toughness, commonly specified for service temperatures down to -75°F (-60°C). Its suitability is verified by Charpy V-Notch impact testing at the specified design temperature.
Common Applications:
Pressure vessels and storage tanks for liquefied gases (e.g., propane, butane, ammonia, ethylene).
Components in gas processing, petrochemical, and refrigeration plants.
Structural parts exposed to low ambient temperatures in cold climates.
Comparison within SA203 Grades:
SA203 includes several grades with increasing nickel content for progressively lower service temperatures:
Grade A: 2.25% Ni (lower strength than Grade B)
Grade B: 2.25% Ni (standard strength)
Grade D: 3.25% Ni
Grade E: 3.50% Ni
Grade F: 4.75% Ni
Grade B offers an optimal balance of cost (moderate nickel content), strength, and proven low-temperature toughness for a wide range of industrial applications.
SA203 Grade B steel standard :ASME SA203/SA203M
SA203 Grade B pressure vessel steel chemical composition %
| Grade | Thickness(mm) | C max | Mn max | P max | S max | Si max | Ni |
| SA203 Grade B | t≤50 | 0.21 | 0.70 | 0.025 | 0.025 | 0.15-0.40 | 2.10-2.50 |
| 50<t≤100 | 0.24 | 0.80 | |||||
| 100<t | 0.25 |
SA203 Grade B pressure vessel steel Mechanical properties
| Grade | Thickness(mm) | Yield strength ReH MPa min | Tensile strength Rm MPa | Elongation A% min | |
| 50mm | 200mm | ||||
| SA203 Grade B | t≤50 | 275 | 485-620 | 21 | 17 |
1.What is SA203 Grade B?
SA203 Grade B is a nickel-alloy steel plate designed for low-temperature pressure vessel service, with a nominal nickel content of 2.25%, offering good notch toughness for applications down to approximately -75°F (-60°C).
2.What is the chemical composition of SA203 Grade B?
Its composition includes approximately 2.25% Nickel, along with controlled amounts of Carbon (max 0.17%), Manganese (max 0.70%), Silicon (0.15-0.40%), Phosphorus, and Sulfur.
3.What are the mechanical properties of SA203 Grade B?
Key mechanical properties include a minimum tensile strength of 65-85 ksi (450-585 MPa) and a minimum yield strength of 37.5 ksi (260 MPa) for plates up to 2.5 inches thick.
4.Is SA203 Grade B a carbon steel or alloy steel?
It is classified as a nickel-alloy steel due to its intentional and significant (2.25%) nickel content, which differentiates it from carbon steels and gives it enhanced low-temperature properties.
5.What is the impact toughness of SA203 Grade B?
SA203 Grade B is known for good notch toughness, typically requiring Charpy V-Notch impact testing at -75°F (-60°C) with minimum absorbed energy values specified.
6.How does SA203 Grade B differ from Grade A, D, and E?
The primary difference is nickel content. Grade B has 2.25% Ni, while Grade A has 2.25% Ni but lower strength, Grade D has 3.25% Ni, and Grade E has 3.50% Ni, offering progressively better low-temperature toughness.
7.What is SA203 Grade B used for?
It is commonly used in low-temperature pressure vessels, storage tanks, and structural components for applications such as propane tanks, ethylene storage, and other services down to -75°F (-60°C).
8.Can SA203 Grade B be welded?
Yes, it has good weldability. However, welding procedures should use low-hydrogen practices, and matching or suitable nickel-alloy filler metals are often recommended for critical applications.
9.What is the heat treatment for SA203 Grade B?
SA203 Grade B is typically supplied in the normalized or normalized and tempered condition to achieve the required mechanical properties and toughness.
10.Is SA203 Grade B suitable for cryogenic service?
Yes, it is a standard material for moderately low-temperature (cryogenic) service, commonly used for applications in the -50°F to -150°F (-46°C to -101°C) range, making it suitable for many liquefied gas storage applications.
Full specification and details are available on request. The above information is provided for guidance purposes only. For specific design requirements please contact our technical sales staff.
