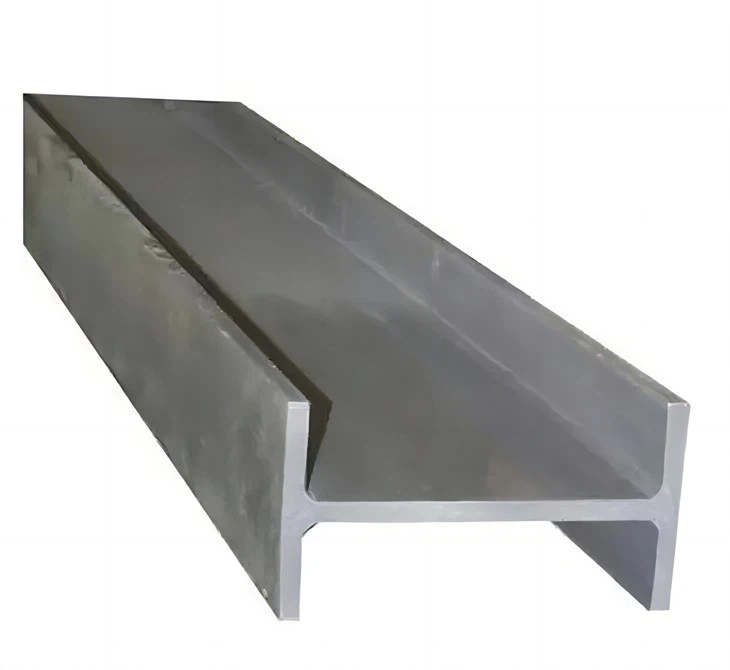

SUS SM520 SM490 Steel H Beam
SM490 H section steel is made from JIS G3106 SM490 low alloy steel and has excellent fatigue resistance, which means it can withstand repeated stress. Secondly, SM490H steel has strong impact resistance and will not break under sudden impact. It also has excellent corrosion resistance.
SM520 implements the standard: Japanese standard JISG 3106-2008 "Rolled Steel Plate for Welded Structures". SM570 is also a brand in this standard. The strength level is the highest in the standard. H-shaped steel made of SM520 is widely used in bridge construction. , engineering machinery, construction, ships, etc. and other mechanical equipment and steel structure components that require higher strength.
Products Details
| Product Name | SUS SM520 SM490 Steel H Beam |
| Standard | SUS |
| Material | SM490 |
| Shape | H type steel beam |
| Technology | Hot-rolled and High frequency welded |
| payment term | TT，LC |
| Surface | painted，galvanized |
| Delivery time | About 7-15 days, up to order quantity |
SM490 structural h beam chemical composition
| Chemical composition % MAX | ||||||||||||||
| C | Si | Mn | P | S | ||||||||||
| TH(MM) | ≤50 | >50≤200 | ||||||||||||
| 0.18 | 0.2 | 0.55 | 1.6 | 0.035 | 0.035 | |||||||||
SM520 h profile steel Chemical composition
| Chemical composition % MAX | ||||||||||||||
| C | Si | Mn | P | S | ||||||||||
| TH(MM) | ≤50 | >50≤200 | ||||||||||||
| 0.20 | 0.20 | 0.55 | 1.6 | 0.035 | 0.035 | |||||||||
SM490 H section steel mechanical property
| Mechanical properties MIN | ||||||||||||||
| Yield strength (N/MM2) | Tensile strength (N/MM2) | Elongation % | ||||||||||||
| TH(MM) | ≤16 | >16-40 | >40-75 | >75-100 | >100-160 | >160-200 | ≤100 | >100-200 | ≤15 | >5-16 | >16-50 | >40 | ||
| 325 | 315 | 295 | 295 | 285 | 275 | 490-610 | 490-610 | 22 | 17 | 21 | 23 | |||
sM520 h shaped steel column mechanical property
| Mechanical properties MIN | ||||||||||||||
| Yield strength (N/MM2) | Tensile strength (N/MM2) | Elongation % | ||||||||||||
| TH(MM) | ≤16 | >16-40 | >40-75 | >75-100 | >100-160 | >160-200 | ≤100 | >100-200 | ≤15 | >5-16 | >16-50 | >40 | ||
| 365 | 355 | 335 | 325 | - | - | 520-640 | - | 19 | 15 | 19 | 21 | |||
about GNEE Group
Founded in 2008, GNEE Group is an integrated supply chain company. With a clear strategic framework, sound governance structure, solid management foundation, strong financial and human resources, GNEE is moving towards the goal of becoming the most leading and professional international steel supply chain company in the Central Plains region of China. If you need, you can contact us, we will attract you with quality service and preferential prices. The company welcomes new and old customers to visit and negotiate business.
Here are some photos of our company, work photos and customer visits to the company：
When GNEE customers visited the company, the salesperson warmly received them and took photos. We look forward to more cooperation from new and old customers, and also warmly welcome your visit:
We can provide professional services, we have SUS SM520 SM490 Steel H Beam and angle iron and other products in stock, if you have any needs, please contact us.
Hot Tags: SUS SM520 SM490 Steel H Beam, China SUS SM520 SM490 Steel H Beam manufacturers, suppliers, factory
