CARBON STEEL H BEAM S235JR S275JR
CARBON STEEL H BEAM S235JR S275JR Products Description
S235JR describes non-alloy structural steels, part 2 of the EN 10025 specification. “S” stands for “structural steel” and has a yield strength of 235 MPa. The "JR" designation confirms that the material has passed a Charpy V-notch impact test of 27 Joules at room temperature.
S275JR is a very low carbon grade suitable for many general and construction applications. Since this product is widely used in the construction and structural fields, this series of products is supplied in hot-rolled alloy-free grade specifications. This product is mainly used in the construction industry, repair industry, and manufacturing industry.
S235JR h steel beam Chemical composition
| C | Mn | P | S | N | Cu | CEV |
| max 0.2 | max 1.4 | max 0.04 | max 0.04 | max 0.012 | max 0.55 | max 0.38 |
S235JR h profile steel mechanical property
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) Flat and long products | 360-510 | 360-510 | 350-500 | 340-490 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
| ReH - Minimum yield strength (MPa) Flat and long products | 235 | 225 | 215 | 215 | 215 | 195 | 185 | 175 |
| KV - Impact energy (J) longitud., | -20° 27 |
0° 27 |
+20° 27 |
| Nominal thickness (mm): | to 1 | 1 - 1.5 | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) parallel, | 17 | 18 | 19 | 20 | 21 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 | 150 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 26 | 25 | 24 | 22 | 21 |
S275JR h shaped steel chemical composition
| C | Mn | P | S | N | Cu | CEV |
| max 0.22 | max 1.5 | max 0.04 | max 0.04 | max 0.012 | max 0.55 | max 0.42 |
S275JR h section steel mechanical property
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) Flat and long products | 430-580 | 410-560 | 400-540 | 380-540 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
| ReH - Minimum yield strength (MPa) Flat and long products | 275 | 265 | 255 | 245 | 235 | 225 | 215 | 205 |
| KV - Impact energy (J) longitud., | -20° 27 |
0° 27 |
+20° 27 |
| Nominal thickness (mm): | to 1 | 1 - 1.5 | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) parallel, | 15 | 16 | 17 | 18 | 19 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 | 150 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 23 | 22 | 21 | 19 | 18 |
CARBON STEEL H BEAM S235JR S275JR is a kind of rolled steel with an H-shaped cross-section. Equal thickness in the two parallel flanges with no taper on the inside surface. Classified into narrow, medium, and wide, based on the height and flange width.

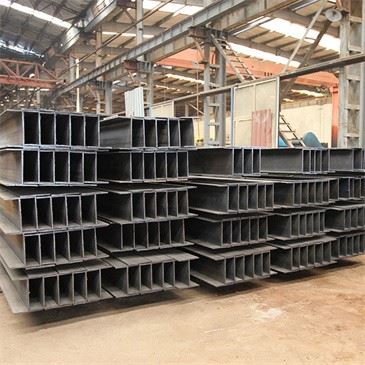

h profile steel image
If you need them more, you could check them in our website of stock warehouse or contract us by email.
Our mill also supply steel grade in S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S355JR, S355J0, S355J2, S355K2, S450J0 steel plate of EN10025-2 standard.
about gNEE group
A group photo of the GNEE company team. We were founded in 2008. We have rich experience in steel export and have established cooperative relationships with more than 120 countries and regions around the world. If you have any steel needs, please contact us and we will provide you with high-quality services. , to meet your purchasing needs, and also welcome new and old customers to visit:
GNEE Group office environment display. GNEE Group is a professional steel trading company with a strong and professional business team that can provide customized services for channel steel, angle steel, h section beam, etc. products according to your needs:
When GNEE customers visited the company, the salesperson warmly received them and took photos. We look forward to more cooperation from new and old customers, and also warmly welcome your visit:
GNEE Company has signed first-level agency agreements with some large steel plants such as Baosteel, Maanshan Iron and Steel, and Anshan Iron and Steel, which has a strong price war advantage. We are committed to strict quality control and thoughtful customer service, and our experienced staff are always ready to listen to your requirements to ensure full customer satisfaction:
We can customize CARBON STEEL H BEAM S235JR S275JR and other products of different sizes and standards according to your needs, and provide customers with high-quality after-sales services. If you have any purchasing needs for steel products, please contact us!
