S235J2 CARBON STEEL H BEAM
Products Description
S235J2 CARBON STEEL H BEAM Advantage:H Beam can be processed into the T section steel. Honeycomb beam can be combined by the formation of various sorts of cross section form meet the demand of engineering design and production flange width, large lateral stiffness, bending capability is strong.
Products Details
|
Grade |
S235J2 H steel beam |
|
Standard |
En |
|
Technique |
Hot rolled |
|
Length |
5.8m-12.0m or as your requirement |
|
Usage |
Widely used in various building structure and engineering structure,iron tower ,etc |
|
Certification |
ISO, CE, SIRIM, Classification Society certifications |
|
Production Advantage |
1. Light, good quality and reasonable price. |
s235J2 h shaped steel chemical composition
| C | Mn | P | S | Cu | CEV |
| max 0.17 | max 1.4 | max 0.03 | max 0.03 | max 0.55 | max 0.38 |
s235J2 h profile steel mechanical property
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 | 150 - 250 | 250 - 400 |
| Rm - Tensile strength (MPa) Flat and long products | 360-510 | 360-510 | 350-500 | 340-490 | 330-480 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
| ReH - Minimum yield strength (MPa) Flat and long products | 235 | 225 | 215 | 215 | 215 | 195 | 185 | 175 |
| KV - Impact energy (J) longitud., | -20° 27 |
0° 27 |
+20° 27 |
| Nominal thickness (mm): | to 1 | 1 - 1.5 | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) parallel, | 17 | 18 | 19 | 20 | 21 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 | 150 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 26 | 25 | 24 | 22 | 21 |
equivalent grades of steel s235J2
| EU EN |
USA - |
England BS |
European old EN |
China GB |
Russia GOST |
||||||
| S235J2 |
|
|
|
|
|
S235J2 carbon H steel beam is composed of H steel to optimize the development of a more excellent mechanical properties of economic cross section steel. Especially the section the same as the English letterH the name.
S235J2 H section steel image
S235J2 CARBON STEEL H BEAM are widely used throughout the construction industry when supporting heavy loads is required. Commonly termed an “H” Beam because of its shape, beams provide great load bearing support when used horizontally or standing as columns. Available in two configurations, the most popular being the Wide Flange Steel Beam aka H Beam or W Beam with non-tapered flanges.
about GNEE group
A group photo of the GNEE company team. We were founded in 2008. We have rich experience in steel export and have established cooperative relationships with more than 120 countries and regions around the world. If you have any steel needs, please contact us and we will provide you with high-quality services. , to meet your purchasing needs, and also welcome new and old customers to visit:

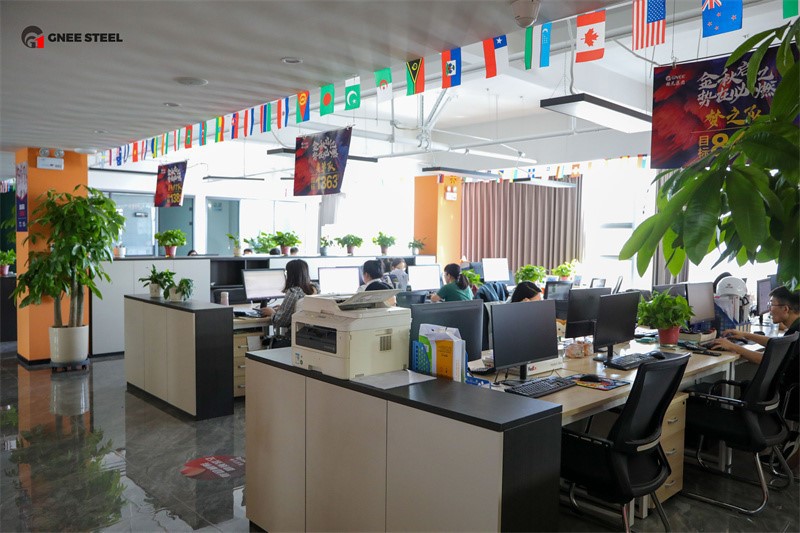

GNEE Group office environment display. GNEE Group is a professional steel trading company with a strong and professional business team that can provide customized services for channel steel, angle steel, h section beam, etc. products according to your needs:
When GNEE customers visited the company, the salesperson warmly received them and took photos. We look forward to more cooperation from new and old customers, and also warmly welcome your visit:
We can customize S235J2 CARBON STEEL H BEAM and other products of different sizes and standards according to your needs, and provide customers with high-quality after-sales services. If you have any purchasing needs for steel products, please contact us!
