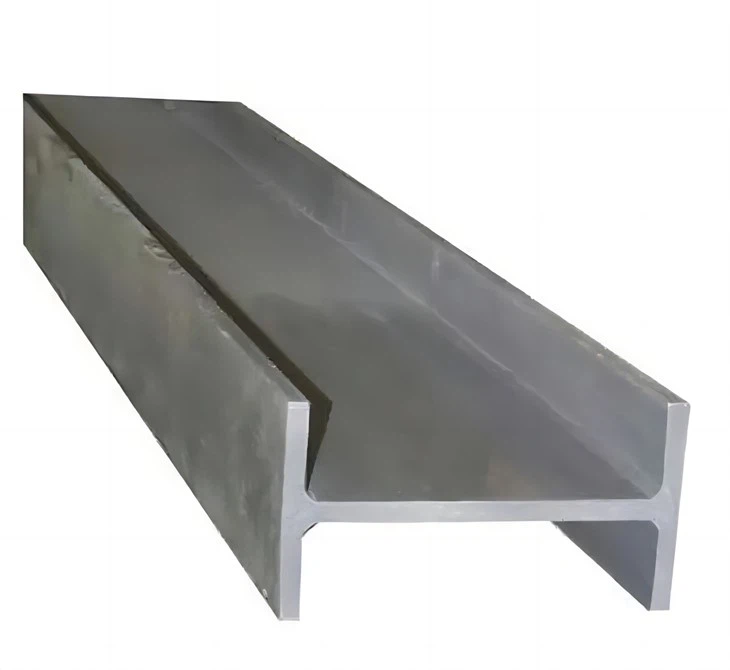

ASTM A992 H Beam
ASTM A992 steel is a structural steel alloy commonly used in the United States for wide-flange H-beams and I-beams. Like other carbon steels, ASTM A992 steel has a density of approximately 7850 kg/m3 (0.2836 lb/in3). According to ASTM Specification A992/A992M, ASTM A992 steel has the following minimum mechanical properties. Tensile yield strength, 345 MPa (50 ksi); Tensile ultimate strength, 450 MPa (65 ksi); Breaking strain (sometimes called elongation) in a 200 mm long specimen, 18%; 50 mm long The breaking strain in the test specimen was 21%.
Products Details
| Product Name | ASTM A992 H Beam |
| Standard | ASTM |
| Material | A992 |
| Shape | H |
| Technology | Hot-rolled and High frequency welded |
| payment term | TT，LC |
| Surface | painted，galvanized |
| Delivery time | About 7-15 days, up to order quantity |
A992 h shaped steel chemical composition
| Steel grade | Styles | Carbon, max, % | Manganese, % | Silicon, max, % | Vanadium, max, % | Columbium, max, % | Phosphorus, max, % | Sulfur, max, % |
|---|---|---|---|---|---|---|---|---|
| A992 | H sections steel | 0.23 | 0.50 - 1.60 | 0.40 | 0.15 | 0.05 | 0.035 | 0.045 |
a992 h section steel mechanical property
| Steel grade | Styles | Tensile strength, ksi | Yield point, min, ksi |
|---|---|---|---|
| A992 | Steel H sections | 65 | 65 |
a992 h steel beam - IPE dimension(parallel flanges)
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| IPE 80 | 6.0 | 80 | 46 | 3.8 | 5.2 |
| IPE 100 | 8.1 | 100 | 55 | 4.1 | 5.7 |
| IPE 120 | 10.4 | 120 | 64 | 4.4 | 6.3 |
| IPE 140 | 12.9 | 140 | 73 | 4.7 | 6.9 |
| IPE 160 | 15.8 | 160 | 82 | 5.0 | 7.4 |
| IPE 180 | 18.8 | 180 | 91 | 5.3 | 8.0 |
| IPE 200 | 22.4 | 200 | 100 | 5.6 | 8.5 |
| IPE 220 | 26.2 | 220 | 110 | 5.9 | 9.2 |
| IPE 240 | 30.7 | 240 | 120 | 6.2 | 9.8 |
| IPE 270 | 36.1 | 270 | 135 | 6.6 | 10.2 |
| IPE 300 | 42.2 | 300 | 150 | 7.1 | 10.7 |
| IPE 330 | 49.1 | 330 | 160 | 7.5 | 11.5 |
| IPE 360 | 57.1 | 360 | 170 | 8 | 12.7 |
| IPE 400 | 66.3 | 400 | 180 | 8.6 | 13.6 |
| IPE 450 | 79.1 | 450 | 190 | 9.4 | 14.6 |
| IPE 500 | 90.7 | 500 | 200 | 10.2 | 16 |
| IPE 550 | 106.0 | 550 | 210 | 11.2 | 17.2 |
| IPE 600 | 124.4 | 600 | 220 | 12 | 19 |
The above is part of the size information!
For more information please contact us!
