Monel 400 is a solid solution strengthened alloy with excellent corrosion resistance. This alloy has better corrosion resistance than most alloys at room temperature, especially in flowing seawater. Therefore, Monel 400 is often used for parts in marine applications.

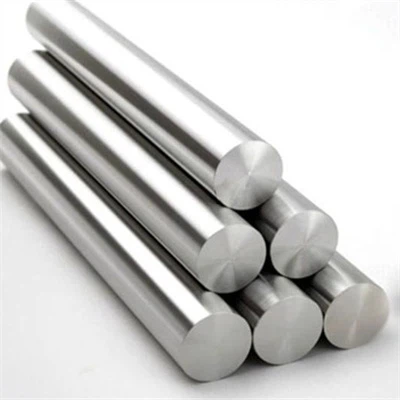

We manufacture Monel 400 round bar & rod according to ASTM B164. Regarding surfaces, we default to delivery in bright state. For the Monel 400 round bar, if you can accept a black bar, we can offer you the best price with a shorter lead time. For the Monel 400 rod, we can grind the material according to your requirements for higher precisio.
Physical Properties
| Density | g/cm3 | 8.80 | |
|---|---|---|---|
| lb/in.3 | 0.318 | ||
| Melting Range | °F | 2370 - 2460 | |
| °C | 1300 - 1350 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) |
Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| Cold-worked (as worked) / under 12.7mm | 760 | 585 | 8 | ... | ... |
| Cold-worked (stress-relieved) / under 12.7mm | 580 | 345 | 10 | ... | ... |
| Cold-worked (stress-relieved) / 12.7mm to 88.9mm, incl | 600 | 415 | 20 | ... | ... |
| Cold-worked (stress-relieved) / 88.9mm to 101.6mm, incl | 580 | 380 | 20 | ... | ... |
| Hot-worked (as worked or stress-relieved) / up to 305mm, incl | 552 | 276 | 30 | ... | ... |
| Hot-worked (as worked or stress-relieved) / over 305mm to 356mm, incl | 517 | 276 | 30 | ... | ... |
| Hot-worked (annealed) or cold-worked (annealed) / all sizes | 480 | 170 | 35 | ... | ... |
*Mechanical Properties According to ASTM B164
Other Informations
Package
Plastic Bag
Wooden Case
Logistics
By Sea
By Air
