Q460 Q500 HM H shaped steel
Q500 HM carbon steel H-beams are widely used in the construction industry and are available in a variety of standard sizes.H-beams can be used as both beams and columns.GNEE's hot rolled H-beams are available in a range of standard sizes from 100×100 to 350×350.Non-standard H-beams are available as welded beams by welding plates together to meet the customer's dimensional requirements.
Q460 H steel beams is a low alloy high-strength steel, elongation ≥ 17%, Q stands for the strength of the steel, 460 stands for 460 MPa.
Products Details
|
Product Name |
Q460 Q500 HM H shaped steel |
|
Standard |
GB Q500 Q460 HM |
|
Size |
Height: 100-900mm |
|
Length: 6-12m or according to customer requirements |
|
|
Flange width: 100-400mm |
|
|
Flange thickness: 5-34mm |
|
|
Thickness of web: 5-30mm |
|
|
Material |
Q195, Q235, Q345, Q235B, Ss400, S235, A36, S235JR etc. |
|
Technology |
Hot rolled |
|
Applications |
Beam and column components in industrial and civil structures. |
|
Steel structure load-bearing support for industrial structures |
|
|
Steel piles and supporting structure of underground engineering |
|
|
The structure of petrochemical and other industrial equipment |
|
|
Long-span steel bridge components |
|
|
Port conveyor belt, high-speed baffle bracket |
|
|
Frame structure of ship and machinery manufacturing |
|
|
Girder brackets for trains, cars and tractors |
|
|
Packaging |
Standard export package,suit for all kinds of transport,or as required. |
|
Price Terms |
Ex-Work,FOB,CFR,CIF,etc |
|
Payment term |
TT,L/C,Western Union,D/P,etc |
q460 h section steel mechanical property
| Thickness or Dia. (Ø) mm; Yield Strength (≥N/mm2) | ||||||||||
| Steel Grade | Quality | Ø≤16 | 16< Ø ≤40 | 40 < Ø ≤63 | 63 < Ø ≤ 80 | 80 < Ø ≤ 100 | 100 < Ø ≤ 150 | 150 < Ø ≤ 200 | 200 < Ø ≤ 250 | 250 < Ø ≤ 400 |
| Q460 | Q460C | 460 | 450 | 430 | 410 | 410 | 390 | – | – | – |
| Dia. (Ø) mm; Tensile Strength (N/mm2) | |||||
| Steel Grade | Quality Level | Ø≤100 | 100 < Ø ≤ 150 | 150 < Ø ≤ 250 | 250 < Ø ≤ 400 |
| Q460 | Q460C | 520 – 720 | 530 – 700 | – | – |
q550 h profile steel mechanical property
| Proof strength Rp0.2(MPa) |
Tensile strength Rm(MPa) |
Impact energy KV(J) |
Elongation at fracture A(%) |
Reduction in cross section on fracture Z(%) |
As-Heat-Treated Condition | Brinell hardness(HBW) |
|---|---|---|---|---|---|---|
| 335(≥) | 232(≥) | 11 | 12 | 33 | Solution and Aging,Annealing,Ausaging,Q+T,etc | 313 |

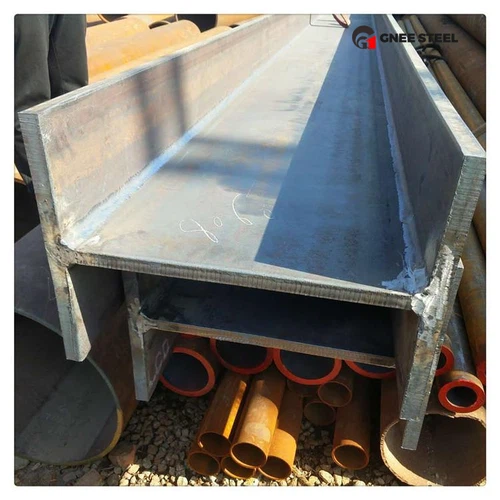

h beam steel structure image
For Q500 HM H beam, everyone has different special concerns about it, and what we do is to maximize the product requirements of each customer, so the quality of our Q500 steel H beam has been well received by many customers and enjoyed a good reputation in many countries. Gnee Steel Group H type steel beam have characteristic design & practical performance & competitive price, for more information on the Q500 H metal Beam, please feel free to contact us.
about GNEE group
A group photo of the GNEE company team. We were founded in 2008. We have rich experience in steel export and have established cooperative relationships with more than 120 countries and regions around the world. If you have any steel needs, please contact us and we will provide you with high-quality services. , to meet your purchasing needs, and also welcome new and old customers to visit:
Photos of the morning meeting of GNEE Group. A good day starts with the morning meeting of the team. Start the day's work energetically and provide better customer service:
When GNEE customers visited the company, the salesperson warmly received them and took photos. We look forward to more cooperation from new and old customers, and also warmly welcome your visit:
We can provide professional services, we have products such as Q460 Q500 HM H shaped steel and round steel in stock, if you have any needs, please contact us.
