Additional technical services for carbon-steel-h-beam-q550d from Xinsteel which including Heat treatment(Normalized,TMCP,Quenched and Tempered,N+T),Z-test (Z15,Z25,Z35),Ultrasonic Examination,Low temperature impacting test,DWTT,PWHT and cutting&welding into special pieces for end users. Mill test certificate issued under EN 10204 format.
carbon-steel-h-beam-q550d Chemical Composition
| STEEL GRADE | C% max | Si% max | Mn% max | P% max | S% max | Cu% max | Cr% max | Ni% max | Mo % max | B % max | V % max | Nb% max | Ti % max |
| Q550D | 0.2 | 0.80 | 1.7 | 0.02 | 0.010 | 0.5 | 1.5 | 2 | 0.70 | 0.005 | 0.12 | 0.06 | 0.05 |
carbon-steel-h-beam-q550d Mechanical Property
| STEEL GRADE | Re yield strength Mpa min | Re yield strength Mpa min | elongation % | Energy and temperature | |||||||
| Min | 0 | -20 | -40 | -60 | |||||||
| t≤50 | 50-100 | 100-150 | t≤50 | 50-100 | 100-150 | J | J | J | J | ||
| Q550D | 550 | 530 | 490 | 640-820 | 640-820 | 590-770 | 16 | 47 | 47 | 34 | 34 |

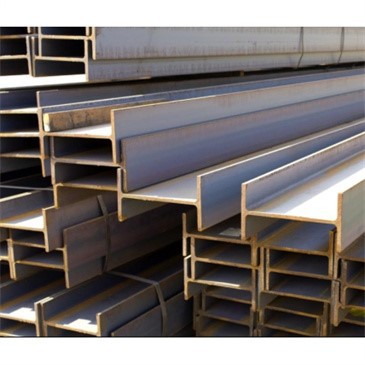

carbon-steel-h-beam-q550d’ unique geometry and high strength make them capable of resisting shear stress and bending, and they are extensively used for general construction and civil engineering. But the exact application will depend on the specific geometry of the beam. For example, beams can act as critical support columns in large building construction. These are referred to as H-Piles, bearing piles, or HP-beams. They tend to be heavier and thicker than either S or W beams.
Hot Tags: carbon steel h beam q550d, China carbon steel h beam q550d manufacturers, suppliers, factory
