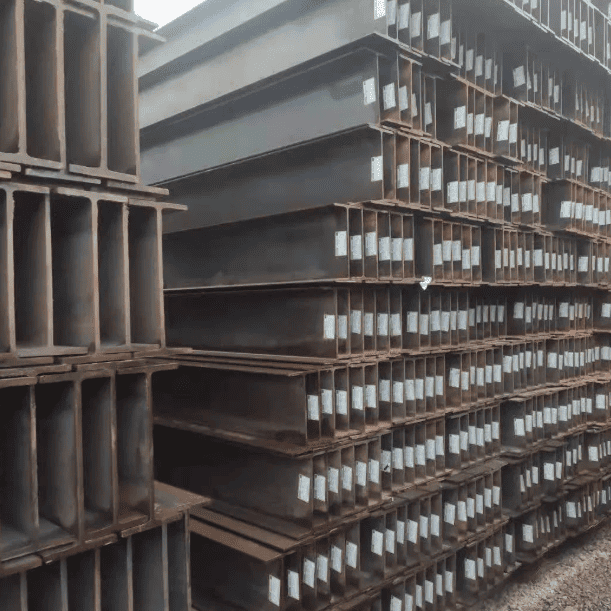

H Beam Wide Flange
In buildings, wide flange beams are a structural support material. In addition, wide flange beams can also be used for equipment sliding, building piling, house moving and building support, etc. It can work under high pressure to ensure the overall stability of the building.
The thickness of the wide flange beam will determine the type of job it is best suited for. It is important to consider the force exerted, the weight carried, and the tension and pressure. The smaller sizes are typically used for jobs where stress and weight are minimal, while the larger, thicker sizes of steel wide flange beams are used to support structures that carry a lot of weight.
wide flange h beam reference size
| Classification (Height × Flange width) |
Standard cross-section dimensions (mm) |
Cross-sectional area(cm3) |
Unit mass (kg/m) |
|||
|---|---|---|---|---|---|---|
| H×B | t1 | t2 | r | |||
| 100×100 | *100×100 |
6 |
8 |
8 |
21.59 | 16.9 |
| 125×125 | 125×125 |
6.5 |
9 |
8 |
30.00 | 23.6 |
| 150×150 | 150×150 |
7 |
10 |
8 |
39.65 | 31.1 |
| 175×175 | 175×175 |
7.5 |
11 |
13 |
51.43 | 40.4 |
| 200×200 | 200×200 *200×204 |
8 |
12 |
13 |
63.53 71.53 |
49.9 56.2 |
| 250×250 | *244×252 250×250 *250×255 |
11 |
11 |
13 |
81.31 91.43 103.9 |
63.8 71.8 81.6 |
| 300×300 | *294×302 300×300 *300×305 |
12 |
12 |
13 |
106.3 118.5 133.4 |
83.4 93.0 105.0 |
| 350×350 | *344×348 *344×354 350×350 |
10 |
16 |
13 |
144.0 164.6 171.9 |
113.0 129.0 135.0 |
| 400×400 | 400×400 |
13 |
21 |
22 |
218.7 | 172.0 |
| Classification (Height × Flange width) |
Reference | |||||
|---|---|---|---|---|---|---|
| Second moment of area(cm4) |
Radius of gyration of area(cm) |
Section modulus(cm3) |
||||
| lx | ly | ix | iy | zx | zy | |
| 100×100 | 378 | 134 | 4.18 | 2.49 | 75.6 | 26.7 |
| 125×125 | 839 | 293 | 5.29 | 3.13 | 134.0 | 46.9 |
| 150×150 | 1,620 | 563 | 6.40 | 3.77 | 216.0 | 75.1 |
| 175×175 | 2,900 | 984 | 7.50 | 4.37 | 331.0 | 112.0 |
| 200×200 | 4,720 4,980 |
1,600 1,700 |
8.62 8.35 |
5.02 4.88 |
472.0 498.0 |
160.0 167.0 |
| 250×250 | 8,700 10,700 11,400 |
2,940 3,650 3,880 |
10.30 10.80 10.50 |
6.01 6.32 6.11 |
713.0 860.0 912.0 |
233.0 292.0 304.0 |
| 300×300 | 16,600 20,200 21,300 |
5,510 6,750 7,100 |
12.50 13.10 12.60 |
7.20 7.55 7.30 |
1,130.0 1,350.0 1,420.0 |
365.0 450.0 466.0 |
| 350×350 | 32,800 34,900 39,800 |
11,200 11,800 13,600 |
15.10 14.60 15.20 |
8.84 8.48 8.89 |
1,910.0 2,030.0 2,280.0 |
646.0 669.0 776.0 |
| 400×400 | 66,600 | 22,400 | 17.50 | 10.10 | 3,330.0 | 1,120.0 |
The above is part of the size information!
For more information please contact us!
h beam wide flange dimensions & sizes
Wide Flange Steel Beams are available in a range of sizes with widths between 4"-16" (10.2–40.6 cm), depths from 4"-16" (10.2–40.6 cm), flange thicknesses between .35"-1.18" (9-30 mm), and a web thickness of .25"-.79" (6.5-20 mm). Wide Flange Steel Beams are available in typical lengths between 8'-20' (2.44-6.1 m).
about GNEE group
A group photo of the GNEE company team. We were founded in 2008. We have rich experience in steel export and have established cooperative relationships with more than 120 countries and regions around the world. If you have any steel needs, please contact us and we will provide you with high-quality services. , to meet your purchasing needs, and also welcome new and old customers to visit:
GNEE company's office environment and employee work style are displayed. New and old customers are welcome to visit. We will welcome your visit with great enthusiasm and provide you with professional steel services:
When GNEE customers visited the company, the salesperson warmly received them and took photos. We look forward to more cooperation from new and old customers, and also warmly welcome your visit:
We can provide professional services, we have H Beam Wide Flange and angle iron and other products in stock, if you have any needs, please contact us.
