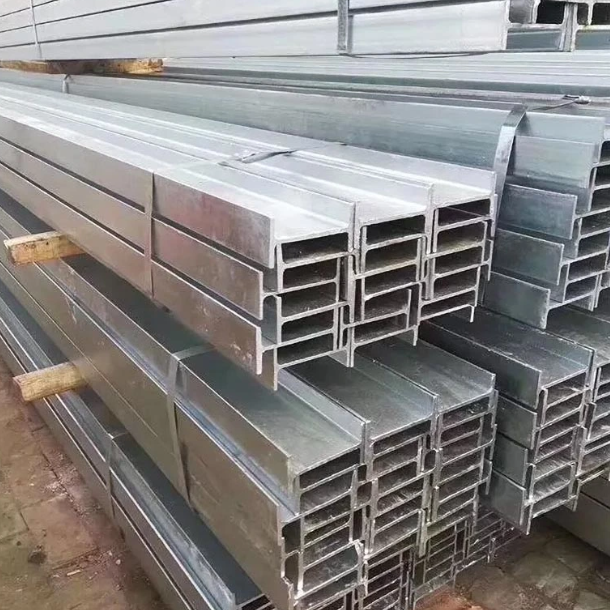

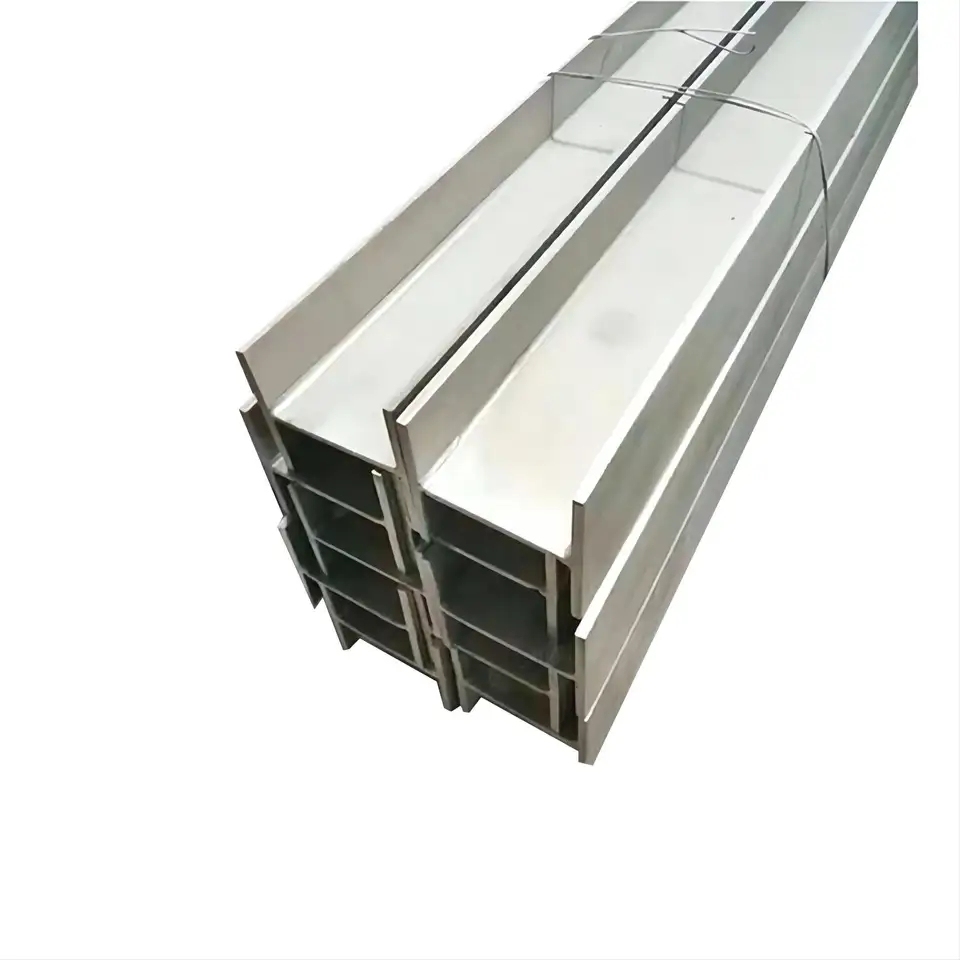

ABS W5×5×19 H profile steel for shipbuilding
The American Bureau of Shipping (ABS) is a leading classification society that provides services to the maritime and offshore industries. ABS establishes and enforces standards for the design, construction, and maintenance of marine vessels and offshore structures. The classification process involves verifying that ships and offshore installations are constructed and maintained in compliance with these standards, ensuring they are safe, reliable, and environmentally responsible.
| Designation | Unit Weight (lbs/ft) | Unit Weight (kg/m) | Standard SectionalDimension(mm) | Sectional Area (cm²) | ||||
| W | M | H | B | t1 | t2 | r | A | |
| W5 x 5 | 16 | 23.8 | 127 | 127 | 6.1 | 9.1 | 7.6 | 30.26 |
| 19 | 28.1 | 131 | 128 | 6.9 | 10.9 | 7.6 | 35.88 | |
Product Details:
|
Product Name |
ABS W5×5×19 H profile steel for shipbuilding |
|
Standard |
JIS / ASTM / GB / DIN / EN /AISI |
|
Material |
Q235B,Q345B,Q420B/C,Q460C,SS400/SS540,S235JR/S235J0/S235J2,S275JR/S275J0/S275J2,S355JR/S355J0/S355J2/A36，etc |
|
Length |
6m 9m 12m or as customized |
|
Delivery terms |
FOB,CFR,CIF,CNF etc. |
|
Thickness |
5-30mm |
|
Exported Area |
USA,UAE,Europe,Asia,Middle East,Africa,South America or other areas. |
|
Lead Time |
A.7 days if this goods is stock goods.B.20 days if this goods will be produced after order |
|
Payment Terms |
30% T/T in advance as deposit,70% balance against the B/L copy or 100% irrevocable L/C at sight |
|
Remark |
Specific requirement of alloy grade,temper or specification can be discussed at your request |
An H-beam, also known as an H-beam or H-beam, is a structural steel shape widely used in shipbuilding and various other construction applications. Its unique cross-sectional shape, resembling the letter "H", offers several advantages, making it ideal for boatbuilding:
1. Bearing capacity: The high strength-to-weight ratio of H-shaped steel means that it can carry heavier objects with a smaller weight. This performance is very important for the pressure and loads that ships are subjected to during ocean navigation.
2. Structural integrity: H-beams are designed with excellent bending and shearing capabilities. This makes it suitable for manufacturing large spans, supporting decks, bulkheads and other critical components.
3. Versatility: There are many specifications of H-beams, which can be used for various purposes of ships. The shipowner can choose the appropriate H-shaped steel cross section according to the different bearing capacity required by each part of the hull.
4. Weldability: H-beams are generally easy to weld, so shipbuilders can efficiently connect various parts and components together during construction.
Customer visit：
