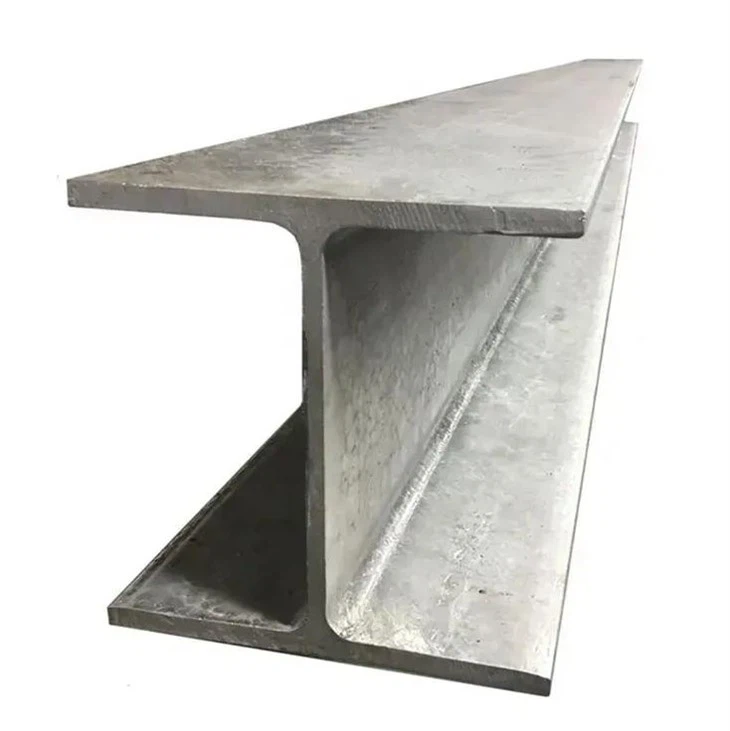

EN S355 S460N H Beam Wide Flange
Products Description
S355 steel is a low carbon structural steel that is used in a wide range of construction and engineering applications. It has excellent mechanical properties and is highly resistant to corrosion, making it ideal for use in harsh or high-stress environments.
One of the primary uses of S355 steel is in the construction of buildings and structures. Its strength and durability make it an ideal material for use in load-bearing applications such as columns, beams, and girders. S355 steel is also commonly used in the construction of bridges, offshore structures, and oil and gas platforms.
S460N H section steel is low alloy steel which is mainly used to manufacture the plants of factory,the common constructure and construction machinery and equipment.The minimum yield strength of S460N carbon steel sheet shall be 400Mpa,and tensile strength of S460N structural steel shall be within 540-720Mpa. S460N structural steel sheet have the good weldable and fine grain structural property.
Products Details
| Product Name | EN S355 S460N H Beam Wide Flange |
| Size | 100mm*100mm-900mm*300mm |
| Length |
as your requested |
| Standards | EN |
| Shape | H steel beam |
| Packing | in bundle,packed with steel belts tightly |
| Origin | China |
| Delivery Time | 3-30 days,according to your quantity |
s355 steel h beam chemical compisition
| EU Grade | Carbon % | Magnesium % | Potassium % | Sulphur % | Silicon % |
|---|---|---|---|---|---|
| S355 | 0.23 max | 1.60 max | 0.05 max | 0.05 max | 0.05 max |
s460N h profile steel chemical composition
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | CEV |
| max 0.2 | max 0.6 | 1 - 1.7 | max 0.8 | max 0.03 | max 0.025 | max 0.3 | max 0.1 | max 0.2 | max 0.025 | max 0.05 | max 0.05 | max 0.02 | max 0.55 | max 0.55 |
s355 h shaped steel mechanical property
| Structural Steel at 16mm | ksi | N/mm² (MPa) |
|---|---|---|
| S355 | 50000 ksi | 355 N/mm² |
| Structural Steel Grade | Tensile Strength MPa at Nominal thickness between 3mm and 16mm |
|---|---|
| S355 | 470- 630 MPa |
s460N h section steel mechanical property
| Nominal thickness (mm): | to 100 | 100 - 200 |
| Rm - Tensile strength (MPa) | 540-720 | 530-710 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 |
| ReH - Minimum yield strength (MPa) | 460 | 440 | 430 | 410 | 400 | 380 | 370 |
| KV - Impact energy (J) longitud., (+N) | +20° 55 |
0° 47 |
-10° 43 |
-20° 40 |
| KV - Impact energy (J) transverse, (+N) | +20° 31 |
0° 27 |
-10° 24 |
-20° 20 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 200 |
| A - Min. elongation Lo = 5,65 √ So (%) | 17 | 17 | 17 | 17 | 17 |
