E335 CARBON STEEL H BEAM
GNEE Group video introduction
Products Description
E335 CARBON STEEL H BEAM are widely used throughout the construction industry when supporting heavy loads is required. Commonly termed an “I” Beam because of its shape, beams provide great load bearing support when used horizontally or standing as columns. Available in two configurations, the most popular being the Wide Flange Steel Beam aka H Beam or W Beam with non-tapered flanges.
e355 carbon steel beam chemical composition
C max |
Si |
Mn max |
P max |
S max |
N max |
Cu max |
|
0.27 |
0.60 |
1.70 |
0.045 |
0.045 |
0.014 |
0.60 |
e355 h profile steel mechanical properties
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) flat and long products | 590-770 | 570-710 | 550-710 | 540-710 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 |
| ReH - Minimum yield strength (MPa) flat and long products | 335 | 325 | 315 | 305 | 295 | 275 | 265 |
| Nominal thickness (mm): | to 1 | 1 - 1.5 | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) parallel, | 8 | 9 | 10 | 11 | 12 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 | 150 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 16 | 15 | 14 | 12 | 11 |
e355 beam steel thermal properties
| Properties | Conditions | ||
|---|---|---|---|
| T (°C) | Treatment | ||
| Thermal Conductivity (W/m-K) | 42.7 | 100 | |
| Specific Heat (J/kg-K) | 477 | 50-100 | |
e355 h shaped steel physical properties
| Quantity | Value | Unit |
|---|---|---|
| Thermal expansion | 16 - 17 | e-6/K |
| Thermal conductivity | 16 - 16 | W/m.K |
| Specific heat | 500 - 500 | J/kg.K |
| Melting temperature | 1370 - 1400 | °C |
| Service temperature | 0 - 500 | °C |
| Density | 8000 - 8000 | kg/m3 |
| Resistivity | 0.7 - 0.7 | Ohm.mm2/m |
E335 CARBON STEEL H BEAM is a carbon (non-alloy) steel formulated for primary forming into wrought products. Cited properties are appropriate for the hot worked condition. 1.0060 is the EN numeric designation for this material. E335 is the EN chemical designation.
It has a very low base cost among wrought carbon or non-alloy steels. In addition, it has a very low electrical conductivity and a fairly high thermal conductivity.

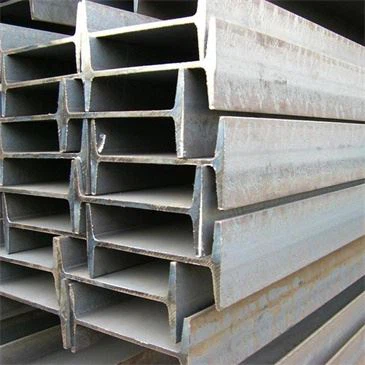

e355 h steel beam image
Gnee offers E355 steel beam in several configurations, including S beams, W beams and M beams. Carbon beams offer excellent support in load-bearing applications, particularly those requiring welding, bolting or riveting, such as construction supports in commercial and residential projects and cargo trailer manufacturing.
about gnee group
GNEE (Tianjin) Multinational Trade Co., Ltd. is mainly engaged in the import and export of steel products and the deep processing of steel products. Founded in 2008, it currently has more than 200 employees. Mainly engaged in square tubes, channel steel, angle steel, I-beam, H-shaped steel, seamless steel pipes, open plates, flower formwork, welded pipes, galvanized steel, round steel, flat steel, PPGI, hot-rolled, etc. Our products have been exported to more than 120 countries in Europe, the Middle East, Southeast Asia, Australia, etc. We have won the recognition of our customers with our good reputation and good service. We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefit. We look forward to receiving your inquiry as soon as possible:
GNEE company’s August-September activities use games to increase team cohesion and demonstrate the unity of the team. At the same time, through this activity, we can cultivate the cooperation ability among employees:
GNEE Group conducts steel knowledge training for employees just to better serve customers. Please call us for inquiries:
GNEE Group office environment display. GNEE Group is a professional steel trading company with a strong and professional business team that can provide customized services for channel steel, angle steel, h section beam, etc. products according to your needs:
When GNEE customers visited the company, the salesperson warmly received them and took photos. We look forward to more cooperation from new and old customers, and also warmly welcome your visit:
Products Description
GNEE company has passed SGS CE ISO and other certifications, has complete testing equipment, strong technical force, and accepts factory testing. We firmly believe that "quality is the core of a company's sustainable strength". We will establish stable, long-term, win-win cooperative relationships with our customers and stick to them:
Products Description
GNEE Company has signed first-level agency agreements with some large steel plants such as Baosteel, Maanshan Iron and Steel, and Anshan Iron and Steel, which has a strong price war advantage. We are committed to strict quality control and thoughtful customer service, and our experienced staff are always ready to listen to your requirements to ensure full customer satisfaction:
We can customize E335 CARBON STEEL H BEAM and other products of different sizes and standards according to your needs, and provide customers with high-quality after-sales services. If you have any purchasing needs for steel products, please contact us!
