ASTM A992 Steel Wide Flange H Beam is one of the most widely used high-strength structural steels for modern construction projects. It is specifically developed for wide flange beams (W-Beams) used in buildings, bridges, and seismic-resistant structures.
Compared with conventional structural steels such as ASTM A36 or ASTM A572 Grade 50, ASTM A992 offers higher strength, improved weldability, and superior seismic performance. The steel contains micro-alloying elements such as vanadium and columbium (niobium), which enhance strength while maintaining excellent ductility and weldability.

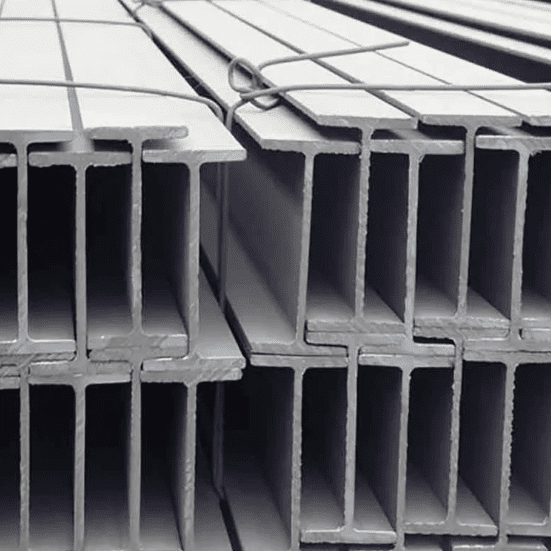

ASTM A992 Steel Wide Flange H Beam
One of the key advantages of ASTM A992 is its controlled Yield-to-Tensile strength ratio (≤ 0.85). This property ensures that the steel maintains excellent deformation capability before failure, making it an ideal material for earthquake-resistant structures and high-safety building projects.
Because of these advantages, ASTM A992 has largely replaced A36 and A572-50 in structural wide flange beam applications, especially in the United States, Canada, and Central & South America.
Product Description of ASTM A992 Wide Flange Beam
Product Name: ASTM A992 Wide Flange Beam (W-Beam / H-Beam)
Manufacturing Process: Hot Rolled
Surface Treatment Options:
- Black surface
- Shot blasting + primer coating
- Hot-dip galvanizing
Available Standards & Sections:
- American Standard W-Beam (ASTM A6)
- European sections HEA / HEB / HEM
Although ASTM A992 is primarily specified for American W-shape beams, we can also supply A992 material in European HEA / HEB / HEM sections for specific international projects.
Customization:
Non-standard beam sizes and lengths are available upon request.
ASTM A992 Chemical Composition
| Steel Grade | Styles | Carbon Max (%) | Manganese (%) | Silicon Max (%) | Vanadium Max (%) | Columbium Max (%) | Phosphorus Max (%) | Sulfur Max (%) |
|---|---|---|---|---|---|---|---|---|
| ASTM A992 | Structural Sections | 0.23 | 0.50 – 1.60 | 0.40 | 0.15 | 0.05 | 0.035 | 0.045 |
The addition of vanadium and niobium micro-alloying elements increases the steel's strength while maintaining excellent toughness and weldability.
ASTM A992 Mechanical Properties
| Steel Grade | Tensile Strength (min) | Yield Strength | Yield-to-Tensile Ratio |
|---|---|---|---|
| ASTM A992 | 65 ksi (450 MPa) | 50 – 65 ksi (345 – 450 MPa) | ≤ 0.85 |
Key Performance Advantages
1. Excellent Seismic Resistance
The controlled yield-to-tensile ratio ensures that the steel can deform before fracture, which is essential for buildings in earthquake-prone regions.
2. Superior Weldability
ASTM A992 has controlled carbon equivalent levels, allowing safer welding with lower risk of cracking.
3. Higher Strength-to-Weight Ratio
Compared with A36, A992 beams can often reduce structural steel weight while maintaining the same load-bearing capacity, helping lower overall project costs.
Typical Applications of ASTM A992 Wide Flange Beam
ASTM A992 wide flange beams are widely used in:
- High-rise buildings
- Bridges and infrastructure projects
- Industrial plants and warehouses
- Seismic-resistant construction
- Power plants and heavy machinery structures
Because of its excellent mechanical performance, ASTM A992 is the preferred structural steel for modern large-scale construction projects.
European Wide Flange Beam Sizes (HEA / HEB / HEM)
In addition to American W-beam sections, we also supply ASTM A992 material manufactured in European standard beam profiles.
HEA Series (DIN 1025-3)
| Item | Weight (kg/m) | Height (mm) | Flange Width (mm) | Web Thickness (mm) | Flange Thickness (mm) |
|---|---|---|---|---|---|
| HEA100 | 17.1 | 96 | 100 | 5 | 8 |
| HEA120 | 20.3 | 114 | 120 | 5 | 8 |
| HEA140 | 25.2 | 133 | 140 | 5.5 | 8.5 |
| HEA160 | 31 | 152 | 160 | 6 | 9 |
| HEA180 | 36.2 | 171 | 180 | 6 | 9.5 |
| HEA200 | 43.2 | 190 | 200 | 6.5 | 10 |
| HEA220 | 51.5 | 210 | 220 | 7 | 11 |
| HEA240 | 61.5 | 230 | 240 | 7.5 | 12 |
| HEA260 | 69.5 | 250 | 260 | 7.5 | 12.5 |
| HEA280 | 77.9 | 270 | 280 | 8 | 13 |
| HEA300 | 90 | 290 | 300 | 8.5 | 14 |
Quality Assurance & Supply Capability
As a professional steel supplier from China, we ensure all ASTM A992 beams meet international project requirements.
Dual Certification Available
Many of our materials can be supplied with dual certification (ASTM A992 + EN S355JR/S355J2) to satisfy both American and European standards.
Mill Test Reports (MTR)
Each shipment includes full chemical composition and mechanical property traceability, including alloying elements such as vanadium and niobium.
Surface Preparation Options
- Shot blasting Sa2.5
- Zinc-rich primer coating
- Anti-corrosion treatments for long-term outdoor use
ASTM A992 Wide Flange Beams Supplier
We supply ASTM A992 Steel Wide Flange H Beams in multiple sizes and standards for international construction and infrastructure projects.
Our advantages include:
- Stable supply from certified mills
- Custom beam sizes and lengths
- Fast international delivery
- Competitive export pricing
If you are looking for high-strength ASTM A992 wide flange beams for structural construction, feel free to contact us for technical support, stock availability, and the latest quotation.
Contact now to get A992 H Beam Quote
What is A992 beam material?
ASTM A992 steel is a structural steel alloy often used in the US for steel wide-flange and I beams. Like other carbon steels, the density of ASTM A992 steel is approximately 7850 kg/m3 (0.2836 lb/in3). ASTM A992 steel has the following minimum mechanical properties, according to ASTM specification A992/A992M.
What is grade A992 steel equivalent to?
In most cases, ASTM A992 steel can be dual-certified to A572 grade 50, exhibiting the high strength and improved weight-to-strength found in A572 carbon steel. Since A992 welds easily, it is often used to fabricate structural steel components where high corrosion resistance is required.
Are A36 and A992 the same?
ASTM A992 outperforms A36 in structural strength, weld consistency, and seismic resilience-making it ideal for modern construction. Still, A36 remains a solid, cost-effective choice for lighter-duty and non-critical applications. Choose based on structural requirements, budget, and project design.
What is the allowable bending stress for A992 steel?
Common structural steel like A992 has a yield strength (Fy) of 345 MPa. * Allowable Stress: Most design codes, such as AISC 360, use a factor of safety. The allowable bending stress is often 0.66Fy = 0.66 × 345 MPa = 227.7 MPa.
