ASTM A992 Wide Flange H-Beams are the premier structural steel beams used in modern construction across North America, Central America, and international infrastructure projects.
Designed specifically for wide flange (W-shape) beams, ASTM A992 steel provides an optimal combination of strength, ductility, and weldability for demanding structural applications.

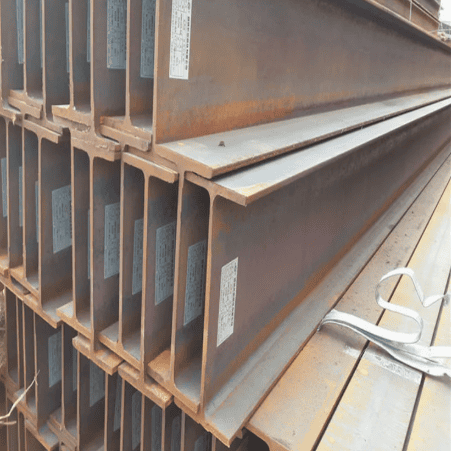

ASTM A992 Wide Flange H-Beams
One of the most important engineering advantages of ASTM A992 is its controlled Yield-to-Tensile strength ratio (≤ 0.85). This ensures the steel maintains excellent ductility under stress, allowing structures to absorb energy before failure. Because of this property, A992 steel beams are widely used in seismic-resistant structures such as skyscrapers, bridges, and high-load industrial facilities.
Compared with conventional structural steels like ASTM A36 and ASTM A572 Grade 50, ASTM A992 provides better mechanical balance, improved weldability, and greater structural reliability. For this reason, ASTM A992 has become the standard steel grade for wide flange beams in modern structural engineering.
Why Choose ASTM A992 Steel Beams?
Structural engineers and contractors often compare ASTM A36, ASTM A572 Grade 50, and ASTM A992 when selecting steel beams. The table below highlights why A992 has become the preferred choice for high-performance structures.
| Feature | ASTM A36 | ASTM A572 Gr.50 | ASTM A992 |
|---|---|---|---|
| Yield Strength | 36 ksi | 50 ksi | 50 ksi (min) |
| Tensile Strength | 58 ksi | 65 ksi | 65 ksi (min) |
| Yield-to-Tensile Ratio | N/A | N/A | ≤ 0.85 |
| Weldability | Good | Good | Excellent |
| Typical Applications | General structural | Heavy-duty structures | Seismic structures & skyscrapers |
Key Advantages of ASTM A992
Superior Ductility
The controlled yield-to-tensile ratio allows the steel to deform before failure, which is critical for structural safety.
Better Seismic Performance
ASTM A992 beams are widely specified for buildings located in earthquake-prone regions.
Higher Strength Efficiency
The higher strength-to-weight ratio allows engineers to design lighter structures while maintaining load-bearing capacity.
Mechanical Properties of ASTM A992 Steel
The mechanical properties of ASTM A992 steel are carefully controlled to ensure predictable structural performance in demanding engineering applications.
Mechanical Properties (ASTM A992)
| Property | Value |
|---|---|
| Modulus of Elasticity (E) | 29,000 ksi (200,000 MPa) |
| Yield Strength (Fy) | 50,000 psi (345 MPa) |
| Ultimate Tensile Strength (Fu) | 65,000 psi (450 MPa) |
| Poisson's Ratio | 0.29 |
| Density | 490 lb/ft³ (7,850 kg/m³) |
These properties make ASTM A992 steel beams ideal for structures that require high strength combined with reliable deformation capacity.
Chemical Composition & Metallurgical Advantages
ASTM A992 steel is produced using micro-alloying technology, incorporating elements such as vanadium and columbium (niobium) to refine the grain structure.
Chemical Composition (Typical)
| Element | Max % |
|---|---|
| Carbon | 0.23 |
| Manganese | 0.50 – 1.60 |
| Silicon | 0.40 |
| Vanadium | 0.15 |
| Columbium (Niobium) | 0.05 |
| Phosphorus | 0.035 |
| Sulfur | 0.045 |
Metallurgical Benefits
Improved grain refinement for higher strength
Lower carbon equivalent for excellent weldability
Increased fracture toughness
Reliable performance in low-temperature environments
These characteristics ensure that ASTM A992 beams maintain structural integrity even under dynamic loads or harsh environmental conditions.
Available ASTM A992 W-Beam Sizes
ASTM A992 is primarily used for American Standard W-Shapes (Wide Flange Beams) manufactured according to ASTM A6 specifications.
Lightweight Sections
W6×9
W6×12
W6×15
W8×10
W8×15
Medium Structural Beams
W10×22
W12×26
W14×30
W14×43
Heavy Structural Sections
W18×50
W21×62
W24×68
W27×94
W36 series
Standard Lengths Available
20 ft (6 m)
40 ft (12 m)
60 ft (18 m)
Custom cutting lengths according to engineering drawings or project requirements are also available. In addition to W-beams, we can also supply A992 material in European HEA / HEB / HEM beam profiles for international projects.
Value-Added Processing Services
Beyond supplying raw steel beams, we provide complete structural fabrication services to help reduce on-site installation time.
Precision Cutting
High-accuracy cutting with tolerance within ±2 mm, ensuring compatibility with engineering drawings.
Surface Preparation
Shot blasting to Sa2.5 followed by inorganic zinc-rich primer to improve corrosion resistance and coating adhesion.
CNC Drilling & Notching
Pre-drilled bolt holes and custom notches allow faster structural assembly on construction sites.
Hot-Dip Galvanizing
Galvanizing according to ASTM A123 for long-term corrosion protection in coastal or tropical environments.
These services allow contractors to receive ready-to-install structural components, saving both time and labor costs.
Typical Applications of ASTM A992 H Beams
Because of its strength and ductility balance, ASTM A992 wide flange beams are used in many large-scale engineering projects.
High-Rise Buildings
ASTM A992 beams form the primary load-bearing framework of skyscrapers and modern office towers.
Bridges and Infrastructure
The material provides high fatigue resistance for structures subjected to heavy traffic loads.
Industrial Facilities
Used for support columns, heavy equipment frames, and structural supports in oil & gas plants and manufacturing facilities.
Solar Energy Structures
Large-scale solar farms use high-strength W-beams as foundations and mounting structures.
Quality Assurance & International Export
We maintain strict quality control to ensure all ASTM A992 beams meet international engineering standards.

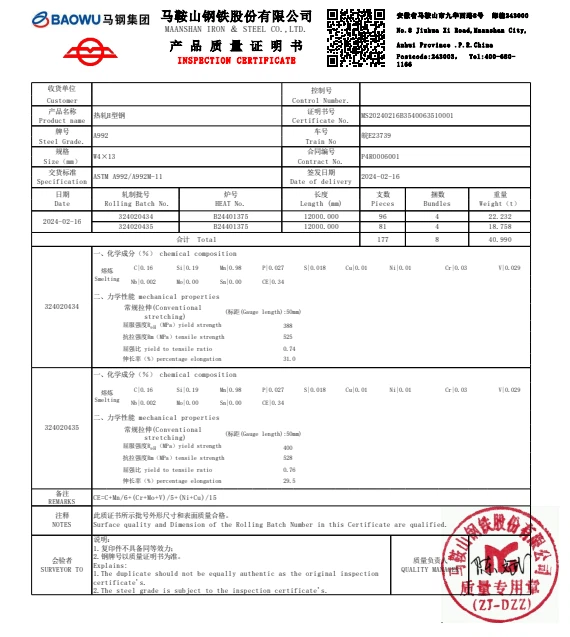

Mill Test Certification
Each shipment includes Mill Test Certificate (MTC) according to EN 10204 3.1, verifying chemical composition and mechanical properties.
Third-Party Inspection
Independent inspections can be arranged with internationally recognized agencies including:
- SGS
- Bureau Veritas (BV)
- Lloyd's Register
Export Packaging
- Bundled with high-strength steel straps
- End-protected with plastic caps
- Seaworthy packaging suitable for long-distance shipping
Global Export Markets
We regularly export structural steel beams to:
- Guatemala
- Panama
- Costa Rica
- Mexico
- United States
- Middle East and Southeast Asia
Looking for ASTM A992 W6×15, W12×26, W14×43, or larger structural beams for your construction project? Contact us today to receive a quotation and project support for ASTM A992 wide flange steel beams.
Contact now to get A992 H Beam Quote
What is A992 beam material?
ASTM A992 steel is a structural steel alloy often used in the US for steel wide-flange and I beams. Like other carbon steels, the density of ASTM A992 steel is approximately 7850 kg/m3 (0.2836 lb/in3). ASTM A992 steel has the following minimum mechanical properties, according to ASTM specification A992/A992M.
Is A992 high carbon?
At its core, A992 steel is a high-strength structural steel alloy designed for structural applications. It is composed primarily of iron with small amounts of carbon, manganese, and other elements to enhance its strength and durability.
What is the yield strength of A992 steel?
A992 vs A36: Side-by-Side Comparison
| Property | A36 | A992 |
|---|---|---|
| Yield Strength | 36 ksi | 50 ksi |
| Tensile Strength | 58–80 ksi | 65 ksi (min) |
| Weldability | Good | Excellent |
| Ductility | Moderate | High (regulated) |
