A572 GR.50 CARBON STEEL H BEAM
Products Description
A572 GR.50 CARBON STEEL H BEAM is an economical section and high-efficiency profile with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named because its cross section is the same as the English letter “H”. Since all parts of the H-beam are arranged at right angles, the H-beam has the advantages of strong bending resistance, simple construction, cost saving and light weight in all directions, and has been widely used.
a572 GR.50 H profile steel chemical composition
| Item | Grade | Carbon, max, % | Manganese, max, % | Silicon, max, % | Phosphorus, max, % | Sulfur, max, % |
|---|---|---|---|---|---|---|
| A572 steel angle | 42 | 0.21 | 1.35 | 0.40 | 0.04 | 0.05 |
| 50 | 0.23 | 1.35 | 0.40 | 0.04 | 0.05 | |
| 55 | 0.25 | 1.35 | 0.40 | 0.04 | 0.05 |
a572 GR.50 h shaped steel mechanical property
| Item | Grade | Yield point, min, ksi [MPa] | Tensile strength, min, ksi [MPa] |
|---|---|---|---|
| A572 steel angle | 42 | 42 290] | 60 [415] |
| 50 | 50 [345] | 65 [450] | |
| 55 | 55 [380] | 70 [485] |
a572 GR.50 steel H beam - IPN dimension
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| IPN 80 | 5.9 | 80 | 42 | 3.9 | 5.9 |
| IPN 100 | 8.3 | 100 | 50 | 4.5 | 6.8 |
| IPN 120 | 11.1 | 120 | 58 | 5.1 | 7.7 |
| IPN 140 | 14.3 | 140 | 66 | 5.7 | 8.6 |
| IPN 160 | 17.9 | 160 | 74 | 6.3 | 9.5 |
| IPN 180 | 21.9 | 180 | 82 | 6.9 | 10.4 |
| IPN 200 | 26.2 | 200 | 90 | 7.5 | 11.3 |
| IPN 220 | 31.1 | 220 | 98 | 8.1 | 12.2 |
| IPN 240 | 36.2 | 240 | 106 | 8.7 | 13.1 |
| IPN 260 | 41.9 | 260 | 113 | 9.4 | 14.1 |
| IPN280 | 47.9 | 280 | 119 | 10.1 | 15.2 |
| IPN 300 | 54.2 | 300 | 125 | 10.8 | 16.2 |
| IPN320 | 61.0 | 320 | 131 | 11.5 | 17.3 |
| IPN 340 | 68.0 | 340 | 137 | 12.2 | 18.3 |
| IPN 360 | 76.1 | 360 | 143 | 13 | 19.5 |
A572 GR.50 H section steel is similar to an economical section profile of the capital Latin letter H, also known as universal steel beam, wide edge (edge) I-beam or parallel flange I-beam. The cross-section of H-beam usually includes two parts, the web plate and the flange plate, also known as the waist and the edge.

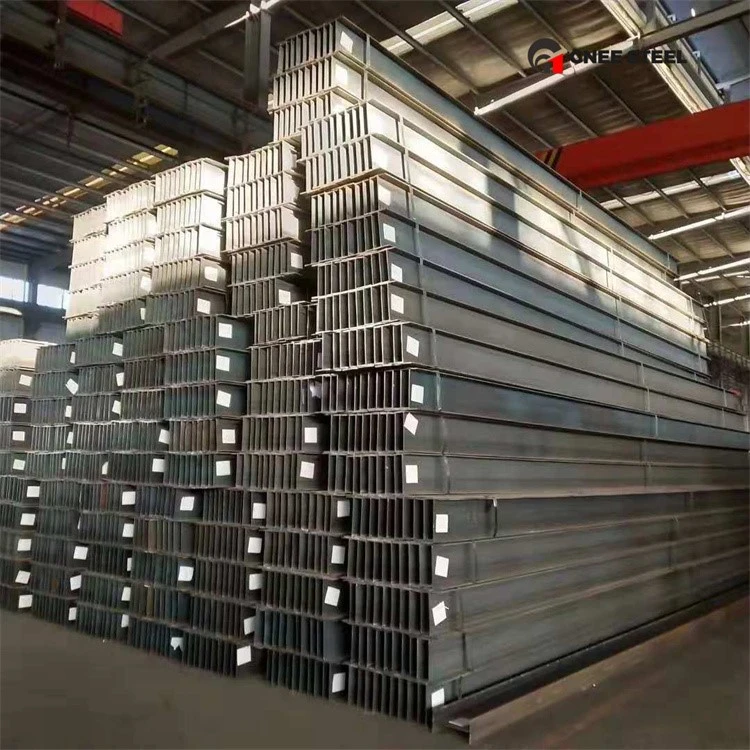

A572 GR.50 h section beam image
A572 GR.50 CARBON STEEL H BEAM are often used in applications that aid in improving rigidity and good resistance to bending in any direction. You will find carbon steel angles in heavy-duty construction like bridges, warehouses, cable towers, and buildings. Carbon steel angle is also found in lighter items including bed frames, chairs, benches, and other furniture.
GNEE group qualification and honors
GNEE company has passed SGS CE ISO and other certifications, has complete testing equipment, strong technical force, and accepts factory testing. We firmly believe that "quality is the core of a company's sustainable strength". We will establish stable, long-term, win-win cooperative relationships with our customers and stick to them:
GNEE group cooperation factories
GNEE Company has signed first-level agency agreements with some large steel plants such as Baosteel, Maanshan Iron and Steel, and Anshan Iron and Steel, which has a strong price war advantage. We are committed to strict quality control and thoughtful customer service, and our experienced staff are always ready to listen to your requirements to ensure full customer satisfaction:
We can customize A572 GR.50 CARBON STEEL H BEAM and other products of different sizes and standards according to your needs, and provide customers with high-quality after-sales services. If you have any purchasing needs for steel products, please contact us!
