S235JR A36 U Channel Steel

S235JR is the European standard of non-alloy structural steel, equivalent to the national standard Q235B, that is, carbon structural steel with low carbon content, which is used for welding, bolted and riveted structures. A36 is an American standard carbon structural plate that implements the ASTM A36/A36M standard for riveted, bolted and welded structures for Bridges and buildings, as well as general purpose structural steel quality carbon steel sections, plates and bar steels.

Products Details

Product Name	S235JR A36 u channel steel
Length	as your required
Shape	C
Alloy or Not	Not
Standards	GB, ASTM, EN, SUS, ect.
Packing	in bundle,packed with steel belts tightly
Surface	Painted,galvanized,welded
Price Term	FOB, CIF, EXW, DDP, etc.
Delivery Time	7-30 days, according to your quantity
Origin	China

Products Description

For steel S235JR, "S" is the abbreviation of structural steel. The term "235" refers to the minimum yield strength (MPa) for steel thickness less than 16 mm. The "JR" indicates the energy-related quality level of the Charpy impact test (27 J, 20℃ temperature).

ASTM A36 material is equivalent to steel S235JR. Below is for steel S235JR VS A36 material.

Steel S235JR VS A36 material in chemical composition:

Grade	C (t≤16mm)	Si	Mn	P	S	Cu	N
Steel S235JR	0.19 max	-	1.5 max	0.045 max	0.045 max	0.60 max	0.014 max
A36 material	0.26 max	0.40 max	-	0.040 max	0.050 max	0.20 min	-

Steel S235JR VS A36 material in mechanical properties:

Grade	Yield strength ReH/(N/mm2) (t≤16mm) min	Tensile strength Rm/(N/mm2) (3mm≤t≤16mm)	Elongation A/% (3mm≤t≤40mm) min	Charpy V test
Grade	Yield strength ReH/(N/mm2) (t≤16mm) min	Tensile strength Rm/(N/mm2) (3mm≤t≤16mm)	Elongation A/% (3mm≤t≤40mm) min	Temperature/℃	Impact energy (Longitudinal)/J min
Steel S235JR	235	360-510	26	+20	27
A36 material	250	400-550	23	-	-

Steel S235JR and A36 material has little difference but more common points in chemical composition and mechanical properties. For most projects, they can meet demands of each other. But there are also exceptions, which need to check with engineers.

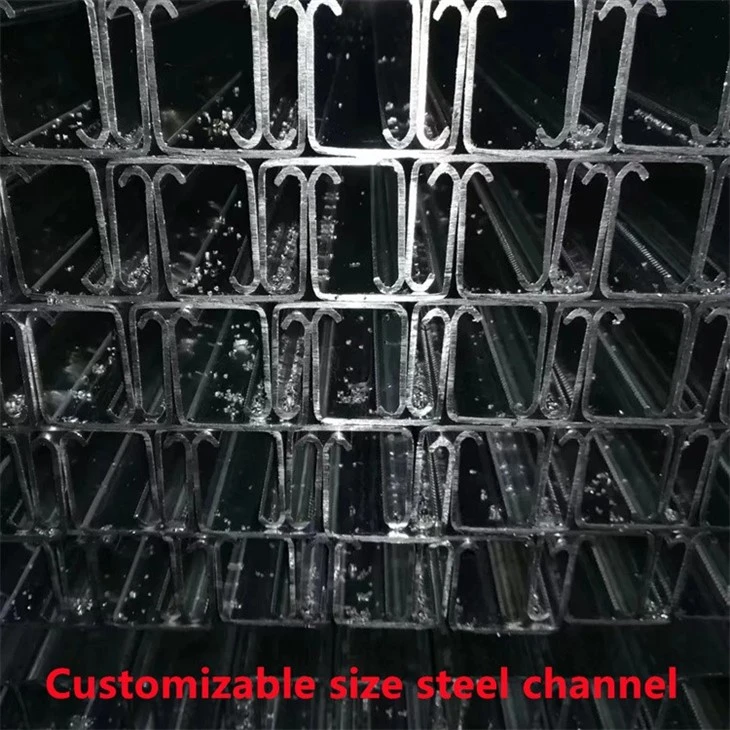

Products Image
