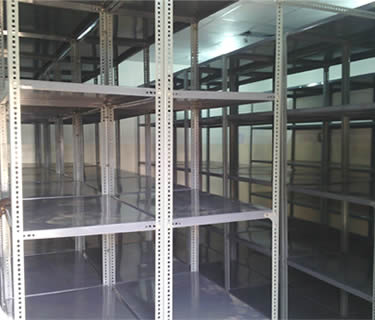

JIS SS490 structural steel angle is popular choices for communication towers, factory warehouse, equipment supports and other industrial or engineering places. Compared with SS400, it is much stronger and effectively reduces weight and thickness for the same strength.
JIS SS490 hot-rolled carbon steel angle iron is available in black, zinc-coated or painted treatment. Owing SS490 is kind of common carbon steel which has no resistance to corrosion, so black is not recommended for the applications when the steel often contacts with water or corrosive airs. Painting will be also a good alternative. It can be painted any color to coordinate with the things all around.
JIS SS490 structural steel angle description:
Item: $s490 angle steel.
Standard:JIs G3101-2004.
.Technology: hot rolled.
Type: equal & unequal.
Surface: black or galvanized.
Length:6 m,9 m,12 m or per your request.Equal angle:
Size:20 x20 mm to 200 x200 mm.
Thickness:3 to 20 mm.
"Length:6 m,9 m,12 m or per your request.Unequal angle:
Size:30 x20 mm to 250 x 90 mm.
Thickness:3 to 10 mm.
"Length: 6 m,9 m, 12 m or per your request.
| Steel grade | Styles | Carbon, max, % | Manganese, % | Phosphorus, max, % | Sulfur, max, % |
|---|---|---|---|---|---|
| SS490 | Steel shapes | -- | -- | 0.050 | 0.050 |
| Steel grade | styles | Tensile strength, MPa | Yield point, min, MPa | |
|---|---|---|---|---|
| Thickness, mm | ||||
| ≤16 | 16 - 40 | |||
| SS490 | Steel shapes | 490 - 610 | ≥285 | ≥275 |
JIS SS490 equal angle steel sizes:
| Item | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) | Item | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| ESS490001 | 20 | 20 | 3 | 0.889 | ESS490045 | 80 | 80 | 7 | 8.525 |
| ESS490002 | 20 | 20 | 4 | 1.145 | ESS490046 | 80 | 80 | 8 | 9.658 |
| ESS490003 | 25 | 25 | 3 | 1.124 | ESS490047 | 80 | 80 | 10 | 11.874 |
| ESS490004 | 25 | 25 | 4 | 1.459 | ESS490048 | 90 | 90 | 6 | 8.35 |
| ESS490005 | 30 | 30 | 3 | 1.373 | ESS490049 | 90 | 90 | 7 | 9.656 |
| ESS490006 | 30 | 30 | 4 | 1.786 | ESS490050 | 90 | 90 | 8 | 10.946 |
| ESS490007 | 35 | 35 | 3 | 1.578 | ESS490051 | 90 | 90 | 10 | 13.476 |
| ESS490008 | 35 | 35 | 4 | 2.072 | ESS490052 | 90 | 90 | 12 | 15.94 |
| ESS490009 | 35 | 35 | 5 | 2.551 | ESS490053 | 100 | 100 | 6 | 9.366 |
| ESS490010 | 40 | 40 | 3 | 1.852 | ESS490054 | 100 | 100 | 7 | 10.83 |
| ESS490011 | 40 | 40 | 4 | 2.422 | ESS490055 | 100 | 100 | 8 | 10.276 |
| ESS490012 | 40 | 40 | 5 | 1.976 | ESS490056 | 100 | 100 | 10 | 15.12 |
| ESS490013 | 44 | 44 | 3 | 2.002 | ESS490057 | 100 | 100 | 12 | 17.898 |
| ESS490014 | 44 | 44 | 4 | 2.638 | ESS490058 | 100 | 100 | 14 | 20.611 |
| ESS490015 | 38 | 38 | 3 | 1.719 | ESS490059 | 100 | 100 | 16 | 23.257 |
| ESS490016 | 38 | 38 | 4 | 2.261 | ESS490060 | 110 | 110 | 7 | 11.928 |
| ESS490017 | 48 | 48 | 3 | 2.19 | ESS490061 | 110 | 110 | 8 | 13.532 |
| ESS490018 | 48 | 48 | 4 | 2.889 | ESS490062 | 110 | 110 | 10 | 16.69 |
| ESS490019 | 48 | 48 | 5 | 3.572 | ESS490063 | 110 | 110 | 12 | 19.782 |
| ESS490020 | 50 | 50 | 3 | 2.332 | ESS490064 | 110 | 110 | 14 | 22.809 |
| ESS490021 | 50 | 50 | 4 | 3.059 | ESS490065 | 125 | 125 | 8 | 15.504 |
| ESS490022 | 50 | 50 | 5 | 3.77 | ESS490066 | 125 | 125 | 10 | 19.133 |
| ESS490023 | 50 | 50 | 6 | 4.465 | ESS490067 | 125 | 125 | 12 | 22.692 |
| ESS490024 | 56 | 56 | 3 | 2.624 | ESS490068 | 125 | 125 | 14 | 26.193 |
| ESS490025 | 56 | 56 | 4 | 3.446 | ESS490069 | 140 | 140 | 10 | 21.488 |
| ESS490026 | 56 | 56 | 5 | 4.251 | ESS490070 | 140 | 140 | 12 | 25.522 |
| ESS490027 | 56 | 56 | 6 | 6.568 | ESS490071 | 140 | 140 | 14 | 29.49 |
| ESS490028 | 63 | 63 | 4 | 3.907 | ESS490072 | 140 | 140 | 16 | 33.393 |
| ESS490029 | 63 | 63 | 5 | 4.822 | ESS490073 | 160 | 160 | 10 | 24.724 |
| ESS490030 | 63 | 63 | 6 | 5.721 | ESS490074 | 160 | 160 | 12 | 29.391 |
| ESS490031 | 63 | 63 | 8 | 7.469 | ESS490075 | 160 | 160 | 14 | 33.987 |
| ESS490032 | 63 | 63 | 10 | 9.151 | ESS490076 | 160 | 160 | 16 | 38.518 |
| ESS490033 | 70 | 70 | 4 | 4.372 | ESS490077 | 180 | 180 | 12 | 33.159 |
| ESS490034 | 70 | 70 | 5 | 5.397 | ESS490078 | 180 | 180 | 14 | 35.383 |
| ESS490035 | 70 | 70 | 6 | 6.406 | ESS490079 | 180 | 180 | 16 | 43.452 |
| ESS490036 | 70 | 70 | 7 | 7.398 | ESS490080 | 180 | 180 | 18 | 48.634 |
| ESS490037 | 70 | 70 | 8 | 8.373 | ESS490081 | 200 | 200 | 14 | 42.894 |
| ESS490038 | 75 | 75 | 5 | 5.818 | ESS490082 | 200 | 200 | 16 | 48.56 |
| ESS490039 | 75 | 75 | 6 | 6.905 | ESS490083 | 200 | 200 | 18 | 54.501 |
| ESS490040 | 75 | 75 | 7 | 7.976 | ESS490084 | 200 | 200 | 20 | 60.056 |
| ESS490041 | 75 | 75 | 8 | 9.03 | ESS490085 | 200 | 200 | 22 | 71.168 |
| ESS490042 | 75 | 75 | 10 | 11.089 | Length = 6 - 12 meters | ||||
| ESS490043 | 80 | 80 | 5 | 6.211 | |||||
| ESS490044 | 80 | 80 | 6 | 7.376 | |||||
JIS SS490 Unequal Angle Steel Sizes:
| Item no. | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) | Item no. | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| UESS490001 | 30 | 20 | 3 | 1.14 | UESS490045 | 100 | 50 | 6 | 6.98 |
| UESS490002 | 30 | 20 | 4 | 1.49 | UESS490046 | 100 | 50 | 8 | 9.16 |
| UESS490003 | 40 | 20 | 3 | 1.38 | UESS490047 | 100 | 50 | 10 | 11.3 |
| UESS490004 | 40 | 20 | 3 | 1.8 | UESS490048 | 100 | 65 | 7 | 8.96 |
| UESS490005 | 40 | 25 | 4 | 1.97 | UESS490049 | 100 | 65 | 8 | 10.2 |
| UESS490006 | 45 | 30 | 4 | 2.3 | UESS490050 | 100 | 65 | 9 | 11.3 |
| UESS490007 | 45 | 30 | 5 | 2.82 | UESS490051 | 100 | 65 | 10 | 12.5 |
| UESS490008 | 50 | 30 | 5 | 3.02 | UESS490052 | 100 | 75 | 7 | 9.52 |
| UESS490009 | 50 | 30 | 6 | 3.58 | UESS490053 | 100 | 75 | 8 | 10.8 |
| UESS490010 | 50 | 40 | 4 | 2.77 | UESS490054 | 100 | 75 | 9 | 12.1 |
| UESS490011 | 50 | 40 | 5 | 3.42 | UESS490055 | 100 | 75 | 10 | 13.3 |
| UESS490012 | 50 | 40 | 6 | 4.03 | UESS490056 | 100 | 75 | 11 | 14.6 |
| UESS490013 | 60 | 30 | 5 | 3.43 | UESS490057 | 100 | 75 | 12 | 15.8 |
| UESS490014 | 60 | 30 | 6 | 4.06 | UESS490058 | 120 | 80 | 8 | 12.4 |
| UESS490015 | 60 | 30 | 7 | 4.68 | UESS490059 | 120 | 80 | 10 | 15.3 |
| UESS490016 | 60 | 40 | 5 | 3.83 | UESS490060 | 120 | 80 | 12 | 18.2 |
| UESS490017 | 60 | 40 | 6 | 4.54 | UESS490061 | 130 | 65 | 8 | 12.1 |
| UESS490018 | 60 | 40 | 7 | 5.24 | UESS490062 | 130 | 65 | 10 | 14.9 |
| UESS490019 | 65 | 50 | 5 | 4.43 | UESS490063 | 130 | 65 | 12 | 17.7 |
| UESS490020 | 65 | 50 | 6 | 5.26 | UESS490064 | 130 | 75 | 8 | 12.7 |
| UESS490021 | 65 | 50 | 7 | 6.08 | UESS490065 | 130 | 75 | 10 | 15.7 |
| UESS490022 | 65 | 50 | 8 | 6.88 | UESS490066 | 130 | 75 | 12 | 18.6 |
| UESS490023 | 75 | 50 | 5 | 4.83 | UESS490067 | 130 | 90 | 10 | 17 |
| UESS490024 | 75 | 50 | 6 | 5.75 | UESS490068 | 130 | 90 | 12 | 20.1 |
| UESS490025 | 75 | 50 | 7 | 6.65 | UESS490069 | 150 | 75 | 9 | 15.7 |
| UESS490026 | 75 | 50 | 8 | 7.53 | UESS490070 | 150 | 75 | 10 | 17.4 |
| UESS490027 | 75 | 50 | 9 | 8.4 | UESS490071 | 150 | 75 | 11 | 18.9 |
| UESS490028 | 75 | 55 | 5 | 5.04 | UESS490072 | 150 | 75 | 12 | 20.6 |
| UESS490029 | 75 | 55 | 7 | 6.93 | UESS490073 | 150 | 90 | 10 | 18.6 |
| UESS490030 | 75 | 65 | 6 | 6.49 | UESS490074 | 150 | 90 | 12 | 22 |
| UESS490031 | 75 | 65 | 8 | 8.48 | UESS490075 | 150 | 90 | 15 | 27.1 |
| UESS490032 | 75 | 65 | 10 | 10.5 | UESS490076 | 150 | 100 | 10 | 19.3 |
| UESS490033 | 80 | 40 | 6 | 5.51 | UESS490077 | 150 | 100 | 12 | 23 |
| UESS490034 | 80 | 40 | 8 | 7.21 | UESS490078 | 150 | 100 | 14 | 26.6 |
| UESS490035 | 80 | 60 | 6 | 6.49 | UESS490079 | 160 | 80 | 10 | 18.5 |
| UESS490036 | 80 | 60 | 7 | 7.5 | UESS490080 | 160 | 80 | 12 | 22 |
| UESS490037 | 80 | 60 | 8 | 8.48 | UESS490081 | 160 | 80 | 14 | 25.4 |
| UESS490038 | 80 | 65 | 6 | 6.73 | UESS490082 | 200 | 100 | 10 | 23.4 |
| UESS490039 | 80 | 65 | 8 | 8.82 | UESS490083 | 200 | 100 | 12 | 27.8 |
| UESS490040 | 80 | 65 | 10 | 10.9 | UESS490084 | 200 | 100 | 15 | 34.4 |
| UESS490041 | 90 | 65 | 6 | 7.22 | UESS490085 | 250 | 90 | 10 | 26.6 |
| UESS490042 | 90 | 65 | 7 | 8.32 | Material: JIS SS490 Length = 6 - 12 meters | ||||
| UESS490043 | 90 | 65 | 8 | 9.44 | |||||
| UESS490044 | 90 | 65 | 10 | 11.7 | |||||
