SS400 is a low carbon steel without specified carbon content. According to its mechanical properties, it is similar to ASTM A36 which is extensively used in engineering and industrial applications. Structural JIS SS400 steel angle is relatively cost-less and shows well in major engineering projects.
Hot-dip galvanized & pre-painting are two popular surface treatments. Since SS400 angle iron doesn't have copper content or other alloy elements, it can't resist environment corrosion without additional protective coating like zinc-coating. The amount of zinc is customized depending on the specific application. In addition, there are a lot of colors for painting, which also adds aesthetic view.
JIS SS400 Carbon Steel Angle
Ss400 angle steel description:
Item: $s400 angle steel.
Standard: JIs G3101-2004.
Technology: hot rolled.
Type: equal & unequal.
Surface: black or galvanized.
Length:6 m,9 m,12 m or per your request.唐Equal angle:
Size:20 x20 mm to 200 x200 mm.
"Thickness:3 to 20 mm.
"Length: 6 m,9 m, 12 m or per your request.Unequal angle:
Size:30 x 20 mm to 250 x 90 mm.
Thickness:3 to 10 mm.
"Length:6 m,9 m,12 m or per your request.
| Steel grade | Styles | Carbon, max, % | Manganese, % | Phosphorus, max, % | Sulfur, max, % |
|---|---|---|---|---|---|
| SS400 | Steel Shapes | -- | -- | 0.050 | 0.050 |
| Steel grade | Styles | Tensile strength, MPa | Yield point, min, MPa | |
|---|---|---|---|---|
| Thickness, mm | ||||
| ≤16 | 16 - 40 | |||
| SS400 | Steel shapes | 400 - 510 | ≥245 | ≥235 |
JIS SS400 equal angle steel sizes:
| Item | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) | Item | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| ESS400001 | 20 | 20 | 3 | 0.889 | ESS400045 | 80 | 80 | 7 | 8.525 |
| ESS400002 | 20 | 20 | 4 | 1.145 | ESS400046 | 80 | 80 | 8 | 9.658 |
| ESS400003 | 25 | 25 | 3 | 1.124 | ESS400047 | 80 | 80 | 10 | 11.874 |
| ESS400004 | 25 | 25 | 4 | 1.459 | ESS400048 | 90 | 90 | 6 | 8.35 |
| ESS400005 | 30 | 30 | 3 | 1.373 | ESS400049 | 90 | 90 | 7 | 9.656 |
| ESS400006 | 30 | 30 | 4 | 1.786 | ESS400050 | 90 | 90 | 8 | 10.946 |
| ESS400007 | 35 | 35 | 3 | 1.578 | ESS400051 | 90 | 90 | 10 | 13.476 |
| ESS400008 | 35 | 35 | 4 | 2.072 | ESS400052 | 90 | 90 | 12 | 15.94 |
| ESS400009 | 35 | 35 | 5 | 2.551 | ESS400053 | 100 | 100 | 6 | 9.366 |
| ESS400010 | 40 | 40 | 3 | 1.852 | ESS400054 | 100 | 100 | 7 | 10.83 |
| ESS400011 | 40 | 40 | 4 | 2.422 | ESS400055 | 100 | 100 | 8 | 10.276 |
| ESS400012 | 40 | 40 | 5 | 1.976 | ESS400056 | 100 | 100 | 10 | 15.12 |
| ESS400013 | 44 | 44 | 3 | 2.002 | ESS400057 | 100 | 100 | 12 | 17.898 |
| ESS400014 | 44 | 44 | 4 | 2.638 | ESS400058 | 100 | 100 | 14 | 20.611 |
| ESS400015 | 38 | 38 | 3 | 1.719 | ESS400059 | 100 | 100 | 16 | 23.257 |
| ESS400016 | 38 | 38 | 4 | 2.261 | ESS400060 | 110 | 110 | 7 | 11.928 |
| ESS400017 | 48 | 48 | 3 | 2.19 | ESS400061 | 110 | 110 | 8 | 13.532 |
| ESS400018 | 48 | 48 | 4 | 2.889 | ESS400062 | 110 | 110 | 10 | 16.69 |
| ESS400019 | 48 | 48 | 5 | 3.572 | ESS400063 | 110 | 110 | 12 | 19.782 |
| ESS400020 | 50 | 50 | 3 | 2.332 | ESS400064 | 110 | 110 | 14 | 22.809 |
| ESS400021 | 50 | 50 | 4 | 3.059 | ESS400065 | 125 | 125 | 8 | 15.504 |
| ESS400022 | 50 | 50 | 5 | 3.77 | ESS400066 | 125 | 125 | 10 | 19.133 |
| ESS400023 | 50 | 50 | 6 | 4.465 | ESS400067 | 125 | 125 | 12 | 22.692 |
| ESS400024 | 56 | 56 | 3 | 2.624 | ESS400068 | 125 | 125 | 14 | 26.193 |
| ESS400025 | 56 | 56 | 4 | 3.446 | ESS400069 | 140 | 140 | 10 | 21.488 |
| ESS400026 | 56 | 56 | 5 | 4.251 | ESS400070 | 140 | 140 | 12 | 25.522 |
| ESS400027 | 56 | 56 | 6 | 6.568 | ESS400071 | 140 | 140 | 14 | 29.49 |
| ESS400028 | 63 | 63 | 4 | 3.907 | ESS400072 | 140 | 140 | 16 | 33.393 |
| ESS400029 | 63 | 63 | 5 | 4.822 | ESS400073 | 160 | 160 | 10 | 24.724 |
| ESS400030 | 63 | 63 | 6 | 5.721 | ESS400074 | 160 | 160 | 12 | 29.391 |
| ESS400031 | 63 | 63 | 8 | 7.469 | ESS400075 | 160 | 160 | 14 | 33.987 |
| ESS400032 | 63 | 63 | 10 | 9.151 | ESS400076 | 160 | 160 | 16 | 38.518 |
| ESS400033 | 70 | 70 | 4 | 4.372 | ESS400077 | 180 | 180 | 12 | 33.159 |
| ESS400034 | 70 | 70 | 5 | 5.397 | ESS400078 | 180 | 180 | 14 | 35.383 |
| ESS400035 | 70 | 70 | 6 | 6.406 | ESS400079 | 180 | 180 | 16 | 43.452 |
| ESS400036 | 70 | 70 | 7 | 7.398 | ESS400080 | 180 | 180 | 18 | 48.634 |
| ESS400037 | 70 | 70 | 8 | 8.373 | ESS400081 | 200 | 200 | 14 | 42.894 |
| ESS400038 | 75 | 75 | 5 | 5.818 | ESS400082 | 200 | 200 | 16 | 48.56 |
| ESS400039 | 75 | 75 | 6 | 6.905 | ESS400083 | 200 | 200 | 18 | 54.501 |
| ESS400040 | 75 | 75 | 7 | 7.976 | ESS400084 | 200 | 200 | 20 | 60.056 |
| ESS400041 | 75 | 75 | 8 | 9.03 | ESS400085 | 200 | 200 | 22 | 71.168 |
| ESS400042 | 75 | 75 | 10 | 11.089 | Length = 6 - 12 meters SS400 or Q235 | ||||
| ESS400043 | 80 | 80 | 5 | 6.211 | |||||
| ESS400044 | 80 | 80 | 6 | 7.376 | |||||
JIS SS400 unequal angle steel size:
| Item no. | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) | Item no. | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| UESS400001 | 30 | 20 | 3 | 1.14 | UESS400045 | 100 | 50 | 6 | 6.98 |
| UESS400002 | 30 | 20 | 4 | 1.49 | UESS400046 | 100 | 50 | 8 | 9.16 |
| UESS400003 | 40 | 20 | 3 | 1.38 | UESS400047 | 100 | 50 | 10 | 11.3 |
| UESS400004 | 40 | 20 | 3 | 1.8 | UESS400048 | 100 | 65 | 7 | 8.96 |
| UESS400005 | 40 | 25 | 4 | 1.97 | UESS400049 | 100 | 65 | 8 | 10.2 |
| UESS400006 | 45 | 30 | 4 | 2.3 | UESS400050 | 100 | 65 | 9 | 11.3 |
| UESS400007 | 45 | 30 | 5 | 2.82 | UESS400051 | 100 | 65 | 10 | 12.5 |
| UESS400008 | 50 | 30 | 5 | 3.02 | UESS400052 | 100 | 75 | 7 | 9.52 |
| UESS400009 | 50 | 30 | 6 | 3.58 | UESS400053 | 100 | 75 | 8 | 10.8 |
| UESS400010 | 50 | 40 | 4 | 2.77 | UESS400054 | 100 | 75 | 9 | 12.1 |
| UESS400011 | 50 | 40 | 5 | 3.42 | UESS400055 | 100 | 75 | 10 | 13.3 |
| UESS400012 | 50 | 40 | 6 | 4.03 | UESS400056 | 100 | 75 | 11 | 14.6 |
| UESS400013 | 60 | 30 | 5 | 3.43 | UESS400057 | 100 | 75 | 12 | 15.8 |
| UESS400014 | 60 | 30 | 6 | 4.06 | UESS400058 | 120 | 80 | 8 | 12.4 |
| UESS400015 | 60 | 30 | 7 | 4.68 | UESS400059 | 120 | 80 | 10 | 15.3 |
| UESS400016 | 60 | 40 | 5 | 3.83 | UESS400060 | 120 | 80 | 12 | 18.2 |
| UESS400017 | 60 | 40 | 6 | 4.54 | UESS400061 | 130 | 65 | 8 | 12.1 |
| UESS400018 | 60 | 40 | 7 | 5.24 | UESS400062 | 130 | 65 | 10 | 14.9 |
| UESS400019 | 65 | 50 | 5 | 4.43 | UESS400063 | 130 | 65 | 12 | 17.7 |
| UESS400020 | 65 | 50 | 6 | 5.26 | UESS400064 | 130 | 75 | 8 | 12.7 |
| UESS400021 | 65 | 50 | 7 | 6.08 | UESS400065 | 130 | 75 | 10 | 15.7 |
| UESS400022 | 65 | 50 | 8 | 6.88 | UESS400066 | 130 | 75 | 12 | 18.6 |
| UESS400023 | 75 | 50 | 5 | 4.83 | UESS400067 | 130 | 90 | 10 | 17 |
| UESS400024 | 75 | 50 | 6 | 5.75 | UESS400068 | 130 | 90 | 12 | 20.1 |
| UESS400025 | 75 | 50 | 7 | 6.65 | UESS400069 | 150 | 75 | 9 | 15.7 |
| UESS400026 | 75 | 50 | 8 | 7.53 | UESS400070 | 150 | 75 | 10 | 17.4 |
| UESS400027 | 75 | 50 | 9 | 8.4 | UESS400071 | 150 | 75 | 11 | 18.9 |
| UESS400028 | 75 | 55 | 5 | 5.04 | UESS400072 | 150 | 75 | 12 | 20.6 |
| UESS400029 | 75 | 55 | 7 | 6.93 | UESS400073 | 150 | 90 | 10 | 18.6 |
| UESS400030 | 75 | 65 | 6 | 6.49 | UESS400074 | 150 | 90 | 12 | 22 |
| UESS400031 | 75 | 65 | 8 | 8.48 | UESS400075 | 150 | 90 | 15 | 27.1 |
| UESS400032 | 75 | 65 | 10 | 10.5 | UESS400076 | 150 | 100 | 10 | 19.3 |
| UESS400033 | 80 | 40 | 6 | 5.51 | UESS400077 | 150 | 100 | 12 | 23 |
| UESS400034 | 80 | 40 | 8 | 7.21 | UESS400078 | 150 | 100 | 14 | 26.6 |
| UESS400035 | 80 | 60 | 6 | 6.49 | UESS400079 | 160 | 80 | 10 | 18.5 |
| UESS400036 | 80 | 60 | 7 | 7.5 | UESS400080 | 160 | 80 | 12 | 22 |
| UESS400037 | 80 | 60 | 8 | 8.48 | UESS400081 | 160 | 80 | 14 | 25.4 |
| UESS400038 | 80 | 65 | 6 | 6.73 | UESS400082 | 200 | 100 | 10 | 23.4 |
| UESS400039 | 80 | 65 | 8 | 8.82 | UESS400083 | 200 | 100 | 12 | 27.8 |
| UESS400040 | 80 | 65 | 10 | 10.9 | UESS400084 | 200 | 100 | 15 | 34.4 |
| UESS400041 | 90 | 65 | 6 | 7.22 | UESS400085 | 250 | 90 | 10 | 26.6 |
| UESS400042 | 90 | 65 | 7 | 8.32 | Material: JIS SS400 Length = 6 - 12 meters | ||||
| UESS400043 | 90 | 65 | 8 | 9.44 | |||||
| UESS400044 | 90 | 65 | 10 | 11.7 | |||||

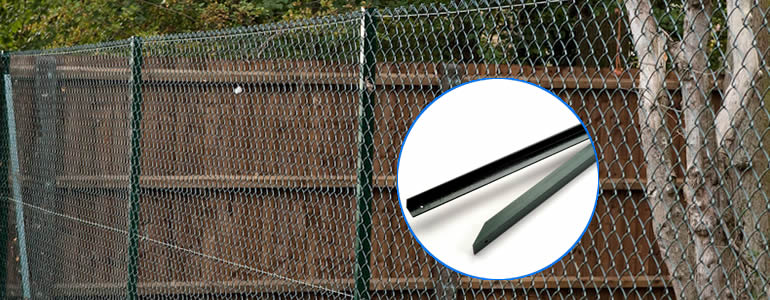

SS400 angle iron post of chain link fencing
