Nm360 Nm400 Nm450 Wear Resisting Steel Plate
wear plate steel Product Introduction
NM360 abrasion resistant steel sheet is a high-hardness wear-resistant steel sheet, which is a type of low-alloy high-strength structural steel. The hardness of NM360 abrasion resistant wear plates has reached approximately 360HB (Brinnell hardness), which has excellent wear resistance and is suitable for various working environments with severe wear.
NM400 abrasion plate is a steel plate material with high strength and high wear resistance. NM400 abrasion resistant steel sheet has excellent wear resistance, strength and corrosion resistance and can meet the needs of different industries. NM450 high wear resistance steel is a high-end variety with high wear resistance and has good cutting, bending and welding properties.
NM360 abrasion resistant metal, NM400 ar wear plate, NM450 wear resistant metal are widely used in engineering, mining, construction and agricultural machinery products that require high strength, high wear resistance and extremely harsh working conditions, such as bulldozers, loaders, excavators, Dump trucks and various mining machinery, etc.
wear resistant steel plate Product Details
Nm360 Wear Resistant Plate Chemical Composition:
| C | Si | Mn | P | S | Cr | Mo | Ni | B |
| ≤0.17 | ≤0.50 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.70 | ≤0.40 | ≤0.50 | ≤0.005 |
Nm360 Abrasion Resistant Steel Plate Material Mechnical Property:
| Thickness/mm | ReL /MPa | Rm /MPa | A/% | Hardness HBW10/3000 | Impact -20℃/J |
| 20 | 1050 | 1160 | 19.0 | 360.0 | 65 |
| 25 | 1020 | 1180 | 18.5 | 375.0 | 52 |
| 30 | 1040 | 1180 | 17.0 | 369.0 | 65 |
| 40 | 1020 | 1160 | 18.0 | 368.0 | 68 |
Nm400 Wear Steel Plate Chemical Composition:
| C max | Si max | Mn max | P | S | Cr max | Mo max |
| 0.22 | 2.0 | 2.2 | ≤0.020 | ≤0.006 | 0.90 | 0.50 |
Nm400 Wear Resistant Steel Material Mechnical Property:
| Thickness mm | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Hardness (HB) | 20℃(AKV) |
| 8-50 | ≥900 | ≥1150 | ≥10 | 360-420 | ≥25 |
Nm450 Resistant Steel Chemical Composition:
| C | Si | Mn | P | S | Al | Cr+Mo+Ni |
| 0.10-0.40 | 0.20-0.40 | 1.0-2.0 | ≤0.015 | ≤0.003 | ≥0.02 | <1.2 |
Nm450 Abrasion Resistant Plate Material Mechnical Property:
| Thickness/mm | ReL /MPa | Rm /MPa | A/% | Hardness/ HBW10/3000 | Impact -20℃ /J |
| 8 | 1250 | 1460 | 16 | 445 | 40 |
| 12 | 1290 | 1470 | 17 | 462 | 43 |
| 20 | 1370 | 1450 | 17 | 473 | 42 |
| 25 | 1230 | 1480 | 16.5 | 465 | 43 |

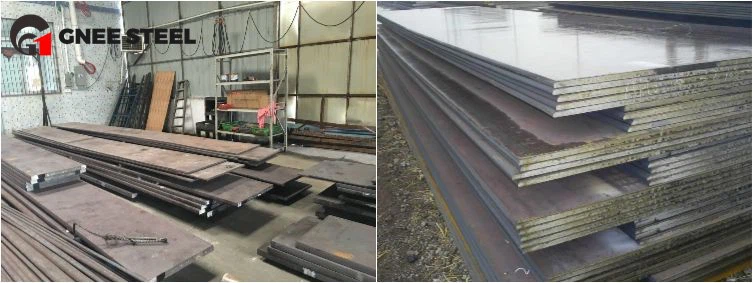

abrasion steel Product Image
GNEE Group Team Photo
GNEE always adheres to the principle of "quality first, integrity first, customer first". We welcome new and old customers from all walks of life to contact us to establish future business relationships and develop together!
Our advantages: providing high-quality products while improving one-stop after-sales service; we have an inclusive and experienced team; we have our own factory and offer the best prices; a professional team provides you with efficient services.
GNEE Group Exhibition Pictures
GNEE Group customers visit
If you have more needs and questions about Nm360 Nm400 Nm450 wear resisting steel plate, please contact us!
