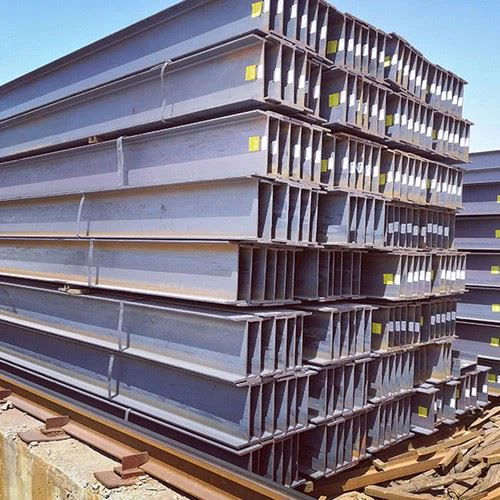

Products Description
| Standards | Dimensions Standard | Tolerance standard | Size range | Material |
| European Standard | EN100365-2017 | EN10034 | IPE80-IPE750 | S235JR S275JR S355JR/S355JO/J2 |
| Surface | Black/Peeling/Polishing/Machined | |||
|
European standard I-beam theoretical weight specification table |
|||||
|
Specification |
height |
width |
web thickness |
wing thickness |
theoretical weight |
|
IPE80 |
80 |
46 |
3.8 |
5.2 |
6 |
|
IPE100 |
100 |
55 |
4.1 |
5.7 |
8.1 |
|
IPE120 |
120 |
64 |
4.4 |
6.3 |
10.4 |
|
IPE140 |
140 |
73 |
4.7 |
6.9 |
12.9 |
|
IPE160 |
160 |
82 |
5 |
7.4 |
15.8 |
|
IPE180 |
180 |
91 |
5.3 |
8 |
18.8 |
|
IPE200 |
200 |
100 |
5.6 |
8.5 |
22.4 |
|
IPE220 |
220 |
110 |
5.9 |
9.2 |
26.2 |
|
IPE240 |
240 |
120 |
6.2 |
9.8 |
30.7 |
|
IPE270 |
270 |
135 |
6.6 |
10.2 |
36.1 |
|
IPE300 |
300 |
150 |
7.1 |
10.7 |
42.2 |
|
IPE330 |
330 |
160 |
7.5 |
11.5 |
49.1 |
|
IPE360 |
360 |
170 |
8 |
12.7 |
57.1 |
|
IPE400 |
400 |
180 |
8.6 |
13.5 |
66.3 |
|
IPE450 |
450 |
190 |
9.4 |
14.6 |
77.6 |
|
IPE500 |
500 |
200 |
10.2 |
16 |
90.7 |
|
IPE550 |
550 |
210 |
11.1 |
17.2 |
106 |
|
IPE600 |
600 |
220 |
12 |
19 |
122 |

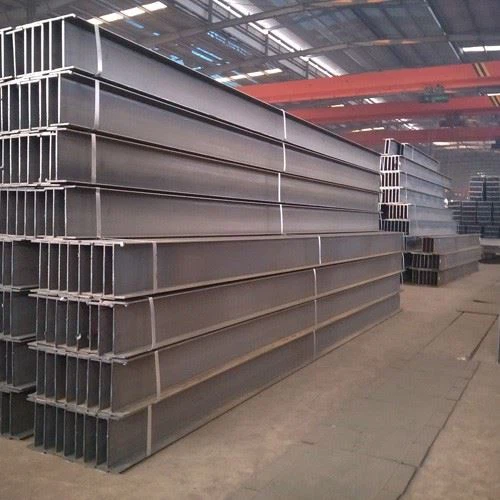

Packing & Shipping
