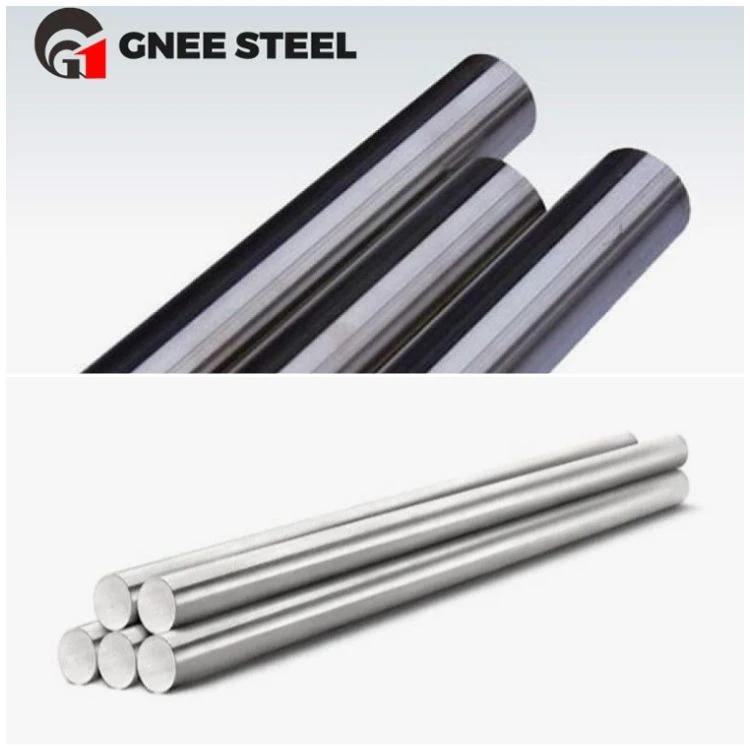

solid steel round bar Product Introduction
DIN1.6587/18CrNiMo7-6 is a low-carbon, case-hardened (carburized) steel containing 1.8% chromium-nickel-molybdenum as strengthening agent in accordance with EN 10084. It has high core strength and toughness of medium to large cross-sections, and the surface hardness can reach Rc62 after carburizing, quenching and tempering. It is also used in the field of heavy-duty and high-strain gear parts with high core tensile strength requirements.
18CrNiMo7-6 is a high toughness case hardened steel. There are many variants with high cleanliness requirements. All variants have a stricter ingredient range compared to the standard. 18CrNiMo7-6 round rod is a grade with added chromium, nickel, molybdenum and coal, with a range of properties suitable for all carburizing grades. 18CrNiMo7-6 round rod is used for heavy-duty components that withstand high pressure and high variable speed operations.
round metal bar
round bar stock Product Details
18CrNiMo7-6 Round Steel Chemical Composition:
| Standard | Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
EN 10084 |
18CrNiMo7-6 | 0.15-0.21 |
≤ 0.4 |
0.5-0.9 |
≤ 0.025 |
≤ 0.035 |
1.4-1.7 |
1.5-1.8 |
0.25-0.35 |
| 1.6587 |
18CrNiMo7-6 Round Bar Physical Property:
| Density, g/cm3 | 7.85 | ||||
| Specific heat capacity J/(kg.K) | 460 | ||||
| Electric resistivity Ohm.mm2 /m | 0.18 | ||||
| Electric conductivity Siemens.m/mm2 | 5.55 | ||||
| Modulus of elasticity Gpa | 210 | ||||
| Thermal expansion 10^6 m/(m.K) | 100 ℃ | 200 ℃ | 300 ℃ | 400 ℃ | 500 ℃ |
| 11.1 | 12.1 | 12.9 | 13.5 | 13.9 | |
18CrNiMo7-6 Round Steel Rod Mechanical Property:
| Size mm | ≤ 11 | 12-30 | 31-63 |
| R Mpa | 1180-1420 | 1080-1320 | 980-1270 |
| Rp 0.2 Mpa | ≥ 835 | ≥785 | ≥ 685 |
| A % | ≥ 7 | ≥ 8 | ≥ 5 |
| C % | ≥ 30 | ≥ 35 | ≥ 35 |
| Kv J | ≥ 44 | ≥ 44 | |
| Hardness HB | 354-406 | 327-384 | 295-373 |
round steel rod
