P295GH Boiler Plate
boiler quality plate Product Introduction
The P295GH vessel steel plate produced by GNEE is a European standard pressure vessel steel plate with good heat resistance and pressure resistance. The P295GH pressure vessel plate we provide is often used to manufacture containers and boiler equipment under high temperature and high pressure. The P295GH pressure vessel plate material provided by GNEE has passed the quality certification and can provide quality certificates. At the same time, we can provide customization and processing services according to your needs for P295GH boiler steel plate products. If you have needs, we can accept third-party testing.
PVQ steel plate Product Details
P295GH Vessel Plate Chemical Composition:
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu |
| 0.08 - 0.2 | max 0.4 | 0.9 - 1.5 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.08 | max 0.02 | max 0.012 | max 0.02 | max 0.03 | max 0.02 | max 0.3 |
P295GH Boiler Steel Plate Mechanical Properties:
| Nominal thickness (mm): | to 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) (+N) | 460-580 | 440-570 | 430-570 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 60 | 60 - 100 | 100 - 150 | 150 - 250 |
| ReH - Minimum yield strength (MPa) (+N) | 295 | 290 | 285 | 260 | 235 | 220 |
| KV - Impact energy (J) transverse, (+N) | -20° 27 |
0° 34 |
+20° 40 |
| KV - Impact energy (J) longitud., | 0° 40 |
+20° 47 |
| A - Min. elongation at fracture (%) (+N) | 21-22 |

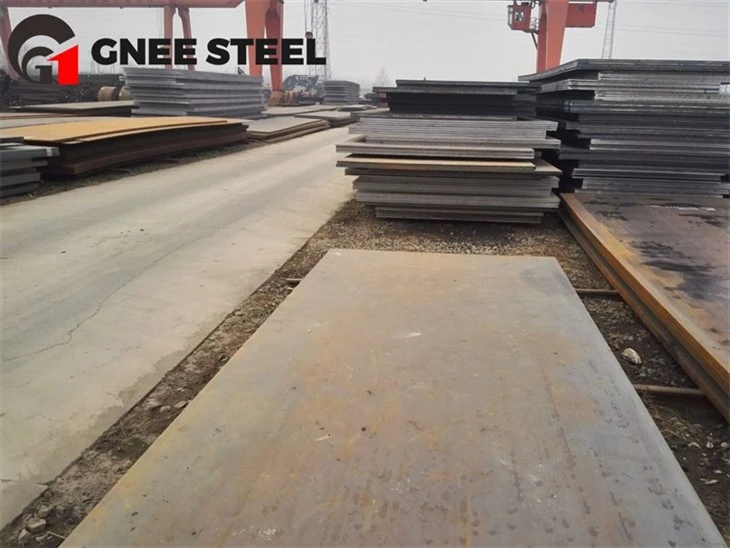

Hot Rolled boiler steel plate Product Image
GNEE Group Team Photo
GNEE has been engaged in the pressure vessel steel plate market for 16 years and has rich production experience. Our advantages: provide high quality products and perfect after-sales one-stop service; we have a compatible and experienced R&D team; we have our own factory and give the most favourable price; professional team to provide you with efficient service.
GNEE Group Exhibition Pictures
GNEE Group customers visit
If you have more needs and questions about P295GH boiler plate, we are always at your service, our email is beam@gneesteel.com
